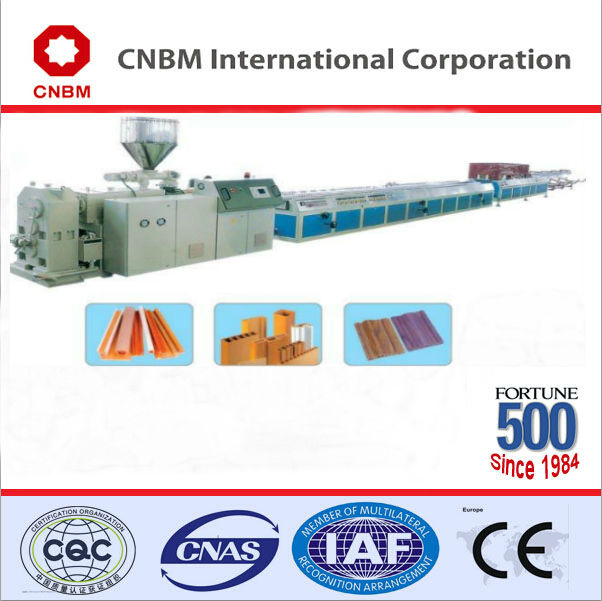

WPC Production Line
1. Specfication
By applying specially designed screw, material cylinder, mold and processing production technology and auxiliary machines for shaped material, it may produce PE, PP or PVC wood-plastic different shaped products. It is a newly developed environmental protection product. Mixing plastics, waste wood according to certain proportion with some plastic processing additives, wood-plastic compound material can be made, with high temperature, it may extrudes structure shaped material, which can be used for making supporting plates, plates for packaging box, door and window frames, decoration floorings, outdoor products, etc.
Charging capacity |
300kg/h |
Spring Diameter |
Φ36mm |
Length of Charging HDPE Pipe and Spring |
4Meter |
Material case volume |
150kg |
Motor Power |
1.5KW |
2. SJZ65/132 Conical Double-Screw Extruder
Screw,Barrel |
Screw and Barrel Material 38CrMoAlA,Nitriding,
Surface Chrome plate,
Nitriding Layer Thickness:0.5~0.7mm,
Surface Rigidity:800~900HV |
Screw Diameter |
Φ65/132mm |
Effectual Working Length of Screw |
1440mm |
Speed of Screw |
1~35rpm |
Reducer Gearbox |
JC Gearbox |
Main Motor Power |
37KW Siemens-Beide Motor |
Main Motor Timing Method |
Adopt 37KW ABB AC Inverter |
Force Feeder Motor Power |
0.75KW |
Force Feeder Motor Timing |
Adopt 0.75KW ABB AC Inverter |
Barrel Heating Method |
Foundry Aluminum Heater, include force cooling fan,
(SuZhou SOK) |
Barrel Heating Power |
24KW |
Heating Zone |
Mould have 6 heating zone,total 12 heating zone |
Capacity |
180~220kg/h |
Main Electrical Equipment |
Japanese OMRON Temperature Control Meter,
Siemens Contactor,
Shanghai TAYEE Button and Indicator Light,
Suzhou ChuangShuan digital display meter |
Vacuum exhaust system |
Adopt 2.2KW water loop vacuum pump, contain pressure
box |
Assistant Equipment |
Screw interior oil temperature adjusting equipment set
Join part install Xiaogan WUYUE High-Temperature Melt
Material Pressure Sensor |
3. YF240 Vacuum Calibration Table
Calibration Table Length |
6 Meter |
Calibration Table Width |
1000mm |
Vacuum Pump |
5.5KW×2pcs |
Water Pump |
3KW×1pc,2.2KW×1PC |
Vacuum & Water Tie-in |
Vacuum Tie-in=20pcs,Cooling Water Tie-in=20pcs |
Vortex Gas Pump Power |
0.75KW(for wind drying) |
Mould Install Rail |
Adopt High Quality Aluminum Profile have T Groove |
Mould Install Rail
Center Distance |
320mm |
Distance of from Aluminum Rail to Floor |
900±40mm |
Table for e -and-aft Move |
Adopt 1.5KW Gearbox Speed Reducer Motor,
Adjusting Distance equal to 800mm |
Table Adjusting |
Up-and-down adjusting adopt worm reducer & screw adjusting
Right-and-left adjusting adopt screw adjusting
Table Flume Balance adjusting adopt worm reducer & screw
adjusting |
