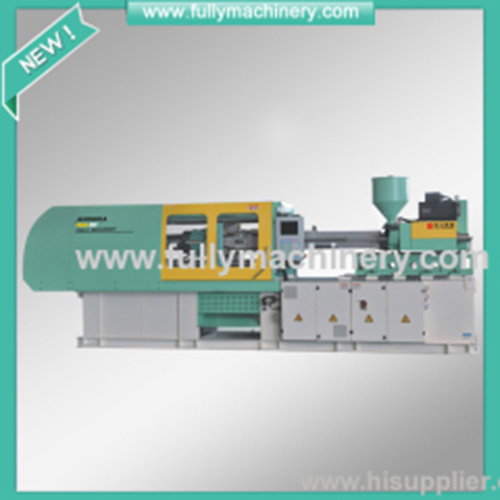

Hydraulic System
Rexroth valves are to ensure quick response and high precision.Plus optional MOOG or Rexroth servo valve,your desire of perfect molding becomes true.
Injection UnitThe intergrated double drive cylinder injection system with symmetrical oil circuit can ensure the injection stable and precise.weldless oil circuit provides high speed and high pressure.Linear guide bearings control friction within the minimum resistance.
Direct Clamping SystemPatented direct clamping system,distinguished as high pressure,efficient,and energy saving,can realize 680 mm/sec.fast mould close/open and perfect low pressure mould protection.
Platen DesignAdvanced platen design,big platen space&stroke and European standard platen screw hole,can satisfy your various needs.Mininal platen distortion tolerance ensures perfect molding.
| INJECTION UNIT | JH 30 |
| Screw specification | A | B | C | D |
| Screw diameter (mm) | 20 | 22 | 25 | 28 |
| Screw stroke (mm) | 110 | 110 | 110 | 110 |
| Screw L:D(L/D) | 24 | 23 | 20 | 18 |
| Shot volume (cm³) | 35 | 42 | 54 | 68 |
| Injection rate(g) | 31 | 38 | 48 | 61 |
| II | Injection pressure(Mpa) | 244 | 202 | 156 | 125 |
| Dwell pressure(kgf/cm²) | 2490 | 2058 | 1594 | 1270 |
| Injection speed(mm/sec) | 247 | 240 | 240 | 240 |
| Injection rate(cm³/sec) | 77.4 | 91.2 | 117.8 | 147.7 |
| Screw rotate speed (rpm) | 340 | 340 | 340 | 340 |
| III | Injection pressure(Mpa) | 168 | 139 | 108 | 86 |
| Dwell pressure(kgf/cm²) | 171.4 | 1416 | 1097 | 874 |
| Injection speed(mm/sec) | 358 | 350 | 350 | 350 |
| Injection rate(cm³/sec) | 112.5 | 133 | 171.7 | 215.4 |
| Screw rotate speed (rpm) | 340 | 340 | 340 | 340 |
| Nozzle sealing force(KN) | 19.8 |
| Nozzle advance stroke(mm) | 50 |
| Heater power (KW) | 4.25 |
| CLAMPING UNIT |
| Clamp force (KN) | 300 |
| Opening force (KN) | 34.6 |
| Platen stroke (mm) | 400 |
| Space between tie bars(mm) | 320X270 |
| Max.mold height(mm) | 550 |
| Min.mold height(mm) | 150 |
| Ejector number(pc) | 1 |
| Ejector force (KN) | 26.4 |
| Ejector stroke(mm) | 70 |
| OTHERS |
| Special pump pressure(Mpa) | 25 |
| Standard pump pressure(Mpa) | 21 |
| Machine dimensions(LxWxH) m | 7.5 |
| Pump motor power(KW) | 3.65x0.93x1.57 |
| Machine weight(T) | 2.5 |
| Oil tank capacity(L) | 150 |
Building long-term customer relationship and pursuing technology innovation have been the foundation of FL Machinery.
In FL Machinery, we have full understanding of customer demands in a changing technology environment.
Our engineers are always striving for providing our customers the solutions that they need to stay ahead of the competition.
FL machinery assures product quality by using of high quality components from Europe, the USA, Japan, and Taiwan. By applying advanced 3-D software design, our engineers have come up with innovative and advanced machines that integrate the latest mechanical, electrical and hydraulic technologies into one machine, to produce very efficient and low maintenance plastic machines.
FL Machinery is of the best quality, with characteristic high rigidity, strong mould locking force and high injection pressure as well as high precision. Our machine is well known among customers by their durability, low energy consumption and reliability.
We FL Machinery welcome you and your valuable suggestions for our continuous improvement and sustainability.
