Advantage:
High Precision, High Capacity Direct Pres
Clamping Force:
170-550t
High Speed:
Nitrogen Assisted Injection System
Type:
Preform Injection
Automation:
Automatic
Structure:
Horizontal
Computerized:
Computerized
Plastic Type:
Thermoplastic
Product Description
Changshengda Machinery (Zhejiang) Co. Ltd. (CSD) specializes in research and development in Injection Molding Machines for medical and food industry, PET two stage Automatic Stretch Blow Molding Machines, Automatic Extrusion Blow Molding Machines and various types of Plastic Moulds and other hi-tech products.

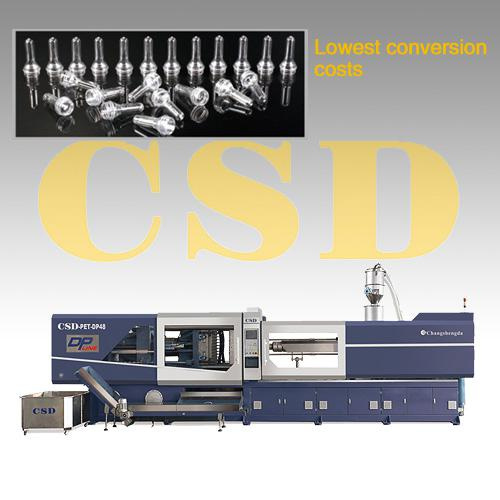

High Precision, High Capacity, Direct Pressure Pet Injection Molding Machine (CSD-PET-DP Series)
1) High speed: Nitrogen assisted injection system, injection rate of 380 cm3/s 2) Features: Direct pressure mold clamping system, the most stable mold clamping system 3) Environmental protection: No contact between 4 tie bars and moving template, lubricating oil free 4) Precise: Servo valve injection system, 100% accurate in repeated injection 5) Performance: Double differential circuit, mold clamping speed is increased 6) Energy-saving: Double closed-loop servo system 7) Control: European brand is applied in temperature control, temperature control ±0.5 degree centigrade. 8) Advantage:One station manufacturing for the preform mold and injection molding machine, 48 cavity production cycles reaches 12.5s.
CSD-DP SPECIFICATIONS OF CONVENTIONAL INJECTION MOLDING MACHINE
CSD-PET-DP18
CSD-PET-DP26
CSD-PET-DP32
CSD-PET-DP48
CSD-PET-DP64
CSD-PET-DP72
INJECTION UNIT
SCREW DIAMETER
mm
55
60
70
82
95
110
SCREW L/D RATIO
L/D
22
23
25
25
25
25
SHOT VOLUME(THEORETICAL)
cm 3
570
762
1286
1848
2692
4616
SHOT WEIGHT
g
655
876
1480
2125
3096
5309
INJECTION PRESSURE
Mpa
167
163
175
175
162
158
INJECTION RATE
g/s
320
320
300
300
280
250
SCREW SPEED
rpm
0~200
0~200
0~180
0~180
0~160
0~150
PLASTICIZING CAPACITY
g/s
35.3
52
72.5
103
151
190
CLAMPING UNIT
CLAMPING FORCE
KN
1700
2100
2500
3000
4200
5500
OPEN STROKE
mm
660
720
770
820
700
750
SPACE BETWEEN TIE BARS(W×H)
mm
480×480
540×540
600×600
690×690
750×820
940×870
MOULD THICKNESS
mm
220~880
260~980
280~1050
430~1250
600~1500
600~1550
EJECTOR FORCE
KN
50
60
70
85
130
160
EJECTOR STROKE
mm
180
200
200
230
250
260
EJECTOR NUMBER
n
9
13
13
13
13
13
OTHERS
HEATER POWER
KW
18
26
26
35
52
68
PUMP MOTOR POWER
KW
33
50
55
64
93
114
MAX PUMP PRESSURE
Mpa
16
16
16
16
16
16
MACHINE DIMESION(L×W×H)
m
5.76×1.48×1.8
6.48×1.6×1.85
7.23×1.68×2.0
8.5×1.95×2.3
8.2×2.25×2.48
8.9×2.43×2.52
MACHINE WEIGHT
t
6.6
8.5
12.5
16.8
19.8
22.3
OIL BOX CAPACITY
L
600
700
800
900
1000
1100
Changshengda Machinery (Zhejiang) Co. Ltd. (CSD) was established in 1992 with a registered capital of $5.2 million USD from Australian sole-ownership enterprises, and boasts a 72, 000 square meter factory zone. The company specializes in research and development in environmental protection, high-precision energy saving injection molding machines for medical and food industry, PET two stage automatic injection stretch blow molding machines, automatic extrusion blow molding machines and various types of plastic moulds and other hi-tech products. Its produce a wide range of goods such as food and beverages packing, plastic goods, pharmaceuticals packing, cleaning products, auto parts, toiletries, home appliances, construction materials, electronics, and so on. CSD's products achieved exceptional sales in South East Asia, the Americas, Eastern Europe, the Middle East, Europe and Africa. Currently the company is working in conjunction with ten of China's most famous brands. CSD's products have gained recognition both inside and outside China as a highly precise, energy-efficient and incredibly streamlined manufacturing company.
CSD boasts a standardized and streamlined production and operations system which has received ISO9001 quality authentication. The company has also been giving the following honorary titles: "Provincial Hi-tech Enterprise R&D Centre", "Zhejiang Province Hi-tech Enterprise", "Zhejiang patent demonstration enterprise", among others. CSD's business ethic primarily focuses on three aspects - one, acting in good faith at all times; Two, making science and technology a priority; And three, thriving on producing superior quality products. The company makes use of advanced design concepts, sophisticated processing equipment and incredibly precise manufacturing methods to meet the needs of high-end clients both inside and outside China.
CSD's products are continuously being innovated in a bib to ensure product quality and secure a reputable corporate image. The company also promotes the service commitment of one station service. The establishment of CSD after-sales centers all around the world not only demonstrates the company's dedication to thorough after-sales support, but also shows a commitment to providing excellent goods at reasonable prices to both new and existing clients.
CSD's employees are driven towards pluralism, standardization and the industrialized development of new technologies, and the company is committed to being an industry leader in plastic goods manufacturing.
