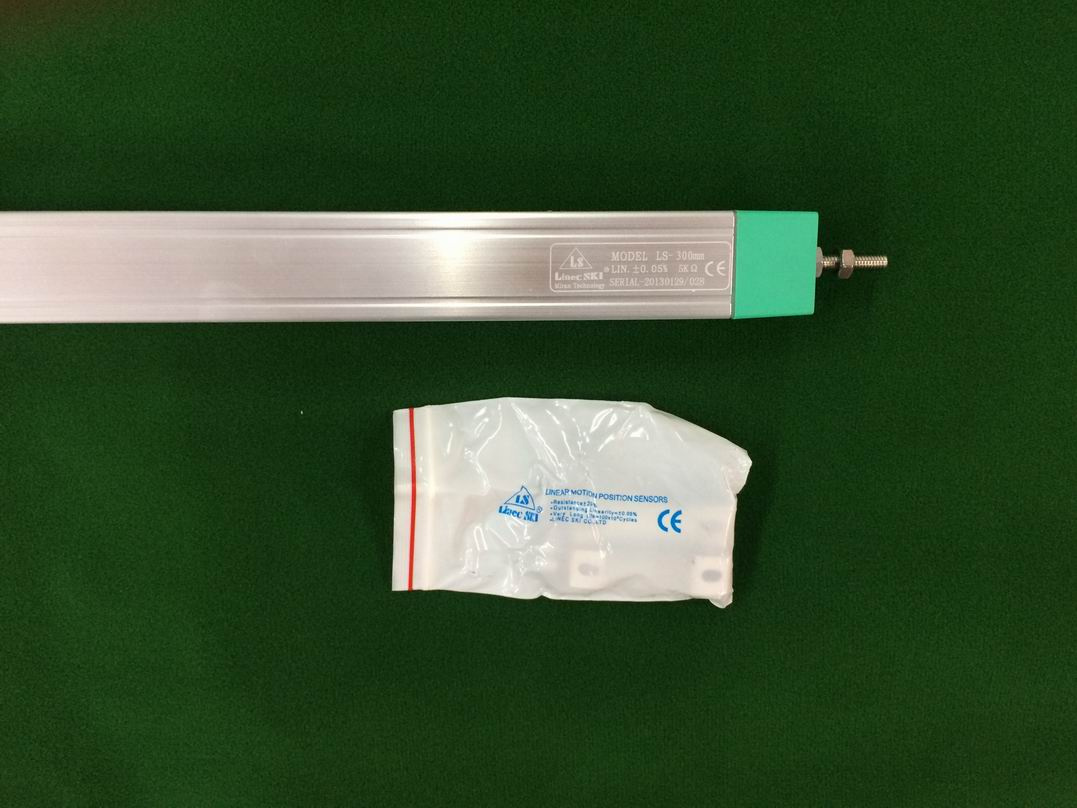

High Precision Injection Moulding Machine 425mm Rod Linear Position Sensor Potentimeter Linec. Ski Ls-425mm Electronic Scale 75mm-1000mm

Prod Model:	LS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

All type displacement sensor are absolute position measurement, output dc voltage signals, but can be by V/A conversion signal is converted into standard 4 ~ 20 ma dc current signal, satisfies the requirement of remote control.Sensors can be done in common trip 5 mm to 2500 mm, special production can reach 4000 mm.Type roughly divided into tie rod ends (including splicing) type and sliding block type two kinds, which contains a universal and miniature, can be satisfied with the needs of most of the equipment.

General rod type linear displacement sensor series, effective stroke 75 mm to 1250 mm, both ends are 3.5 mm buffer stroke, accuracy of 0.08% ~ 0.04% FS.Built-in conductive plastic measurement unit, with functions of automatic electrical grounding.Protection grade for IP67, using DIN430650 standard silver plated plug socket.Linkage end has 0.5 mm automatic to function, allow limit movement speed for 10 m/s.

Task: Adjust
Structure: Combination
Signal: Continuous
Mathematical Model: Linear
Item: Novo Industrial Sensor
Theory: Resistance Sensor
Usage: Position Sensor

High precision injection moulding machine 425mm rod linear position sensor potentimeter Linec.SKI LS-425mm electronic scale 75mm-1000mm

Product introduction:
General LS rod series linear displacement sensor used for accurate measurement of displacement or length.Measure 75 mm to 1250 mm, both ends have 4 mm recoil stroke, linear precision is 0.1% ~ 0.04% FS, repeat accuracy + / - 0.013 mm.Sensor structure design to ensure easy installation, strong and reliable.Shell has carried on the anodic process, beautiful appearance, corrosion resistance, the built-in conductive plastic measurement unit, no temperature drift, long life, to ensure smooth operation.Seal protection grade IP67, DIN430650 silver sockets, wide scope of signal transmission is more stable, linkage with 0.5 mm automatic for the function, the company imported from abroad special linear moment system, resistance to fix carved technology can not only meet the requirements of your linearity, and repair the moment resistance value according to the customer request size.

Linec.SKI rod series	75-110mm	125-175mm	200-550mm	600-1000mm	1150-2000mm	Reference of selection range:
Linearity	±0.2%	±0.1%	±0.05%	±0.05%	±0.04%	Unit:mm
Resistance	5.0KΩ			10.0KΩ	20.0KΩ	75  100  110
Limited travel(B)	effective stroke + 7 mm					125  130  150
Resolution	unlimited resolution					175  200  225
Repeatability precision (mm)	0.01mm					250  275  300
Maximum working speed	10 m/s					325  350  360
Recommended current	<=10mA					375  400  425
Temperature range of use	-20ºC~ +150ºC					450  475  500
Output type	0-100% A given input voltage(varying with the stroke)					550  600  650
Sensitivity	1					700  750  800
temperature drift	infinitesimal					850  900  950
Size(A)	Stroke+mm					1000 1150 1250
