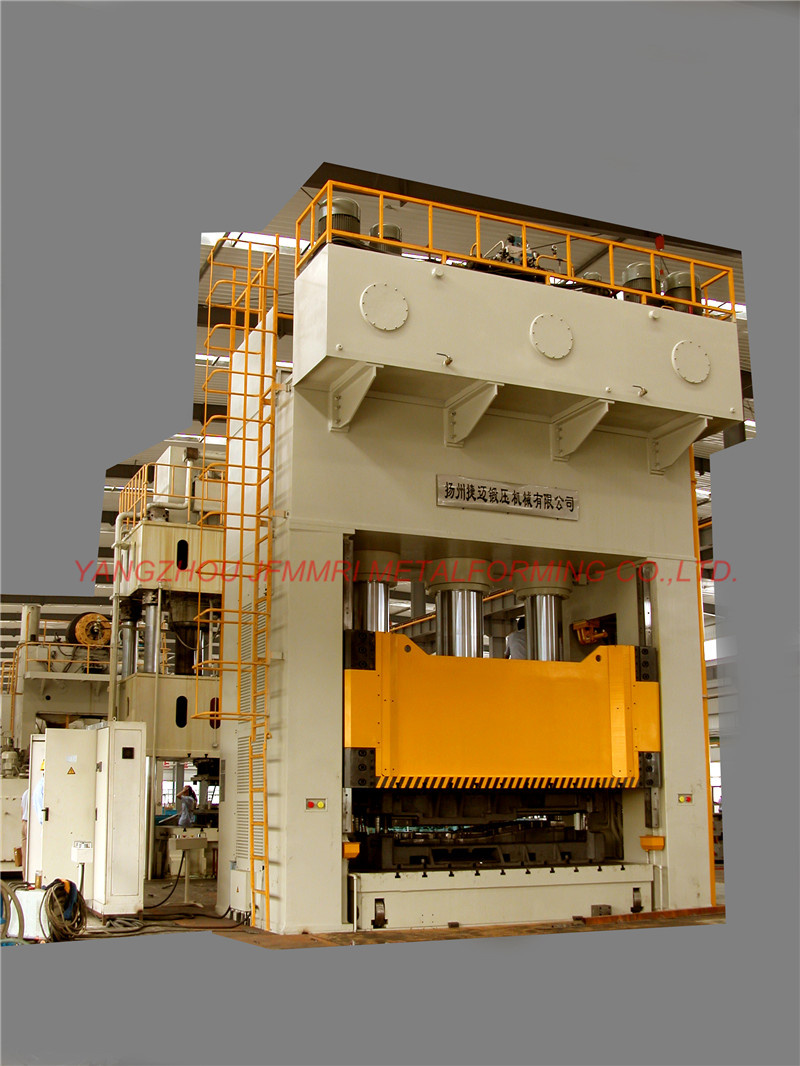

High Quality 1600t Hydraulic Power Press with ISO9001

Name: High Quality 1600t Hydraulic Power Press with ISO9001
Brand: themouldinfo
SKU: 762927515
Availability: InStock
Rating: 4.3 (91 reviews)

Price:	US $ 10000-1000000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Yangzhou JFMMRI Metalforming Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	YJ27D/E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Use:	Sheet Metal Drawing,Bending,Blanking,Extrusion
Forging Forming Method:	Mold Forging

Product Description

   Fit for sheet metal parts of the drawing, bending, extrusion, blanking and other processes;
  Welded steel frame structure, body stiffness. Good performance ,high precision , ability of anti unbalance loading very strong;
  Variety of working standards process and forming methods to choose;
  Preferred international brands can be seal ,hydraulic, electrical components, to ensure high product reliability;
  Moving-table/quick die change, blanking buffer, hydraulic ejector, photoelectric protector and other optional accessories are available for the press according to the user's need.

Items		unit	YJ27D-250	YJ27D-315	YJ27E-315	YJ27E-315Q	YJ27E-400	YJ27E-400	YJ27E-400Q	YJ27E-500
Nominal force		KN	2500	3150	3150	3150	4000	4000	4000	5000
Cushion force		KN	1000	1250	1250	1250	1600	1600	1500	2000
pressure of hydraulic system		Mpa	~25	~25	~25	~25	~25	~25	~25	~25
Daylight		mm	1000	1200	1100	1200	1200	1400	1800	1400
Slide stroke		mm	650	700	700	900	800	800	1400	900
Cushion stroke		mm	250	250	280	300	300	300	400	300
Size of table (L-R×F-B)		mm	1600×1200	1500×1400	1600×1200	2200×1600	2000×1500	2300×1500	2800×1800	2000×1500
Size of cushion hole (L-R×F-B)		mm	1050×600	1070×480	1050×750	1650×1050	1350×1050	1650×900	2250×1350	1350×1050
Speed of slide	Idle	mm/s	150	150	150	200	250	250	450	250
Speed of slide	Pressing	mm/s	25-8	25-10	30-12	25-10	30-12	25-10	50-25	25-10
Speed of cushion knockout		mm/s	50	80	50	100	60	100	150	60
Moving table type			/	/	/	↓	/	/	↓	/
Height between table and floor		mm	650	700	700	500	900	700	680	700
Main motor power		KW	22	44	44	37	60	44	120	60

Items		unit	YJ27E-500	YJ27E-500Q	YJ27E-500Y	YJ27E-630	YJ27E-630Q	YJ27E-630Q	YJ27E-630Q	YJ27E-800Q
Nominal force		KN	5000	5000	5000	6300	6300	6300	6300	8000
Cushion force		KN	2000	1250	2000	2500	2500	2500	2500	3150
pressure of hydraulic system		Mpa	~25	~25	~25	~25	~25	~25	~25	~25
Daylight		mm	1400	1500	1800	1600	1800	2000	1500	1600
Slide stroke		mm	1000	900	1200	1000	1400	1500	1000	1250
Cushion stroke		mm	300	300	300	300	400	400	300	400
Size of table (L-R×F-B)		mm	2300×2000	3000×2000	3800×1800	2300×2000	2800×1800	4000×2500	3200×2000	3200×2200
Size of cushion hole (L-R×F-B)		mm	1650×1350	2100×1350	2400×1200	1650×1350	2250×1350	3450×1950	2250×1500	2550×1650
Speed of slide	Idle	mm/s	250	250	400	250	450	450	300	400
Speed of slide	Pressing	mm/s	25-10	25-10	40-28	25-10	50-20	50-20	25-10	24-8
Speed of cushion knockout		mm/s	80	100	65	80	150	150	80	75
Moving table type			/	↓	→	/	↓	↓	↓	↓
Height between table and floor		mm	700	500	420	650	710	750	650	600
Main motor power		KW	80	71	187	110	185	180	80	198

Items		unit	YJ27E-800Q	YJ27E-800Y	YJ27E-800Q	YJ27D-1000	YJ27E-1000Q	YJ27E-1000Q	YJ27E-1250	YJ27E-1200Q
Nominal force		KN	8000	8000	8000	10000	10000	10000	12500	12000
Cushion force		KN	3150	3150	3150	2000	4000	2500	4000	4000
pressure of hydraulic system		Mpa	~25	~25	~25	~25	~25	~25	~25	~25
Daylight		mm	2000	1800	1800	1350	1800	2200	1800	2000
Slide stroke		mm	1500	1200	1200	900	1400	1600	1250	1500
Cushion stroke		mm	400	350	400	350	400	400	400	400
Size of table (L-R×F-B)		mm	4000×2500	4000×2000	4000×2000	1600×1400	3200×2200	4500×2400	3200×2200	4000×2500
Size of cushion hole (L-R×F-B)		mm	3450×1950	2800×1500	3150×1350	600×600	2550×1650	4050×1650	2250×1350	3450×1950
Speed of slide	Idle	mm/s	450	400	300	250	400	400	300	450
Speed of slide	Pressing	mm/s	50-20	40-28	25-10	25-15	24-6	40-20	25-10	50-20
Speed of cushion knockout		mm/s	150	65	120	80	100	120	80	150
Moving table type			↓	→	↓	/	↓	↓	/	↓
Height between table and floor		mm	750	500	650	700	600	650	650	750
Main motor power		KW	225	322	95	130	270	338.5	150	320

Items		unit	YJ27D-1250	YJ27E-1300Q	YJ27E-1500Q	YJ27E-1600Q	YJ27E-1600Y	YJ27E-2000Q	YJ27E-2000Y	YJ27E-2500Q
Nominal force		KN	12500	13000	15000	16000	16000	20000	20000	25000
Cushion force		KN	1250	3000	5000	6300	6300	8000	8000	10000
pressure of hydraulic system		Mpa	~25	~25	~25	~25	~25	~25	~25	~25
Daylight		mm	1200	2200	2200	1800	2000	2100	2100	2200
Slide stroke		mm	700	1600	1650	1350	1400	1500	1500	1500
Cushion stroke		mm	200	400	400	350	400	400	400	400
Size of table (L-R×F-B)		mm	1500×1330	4500×2400	4500×2800	3500×2500	4000×2500	4000×2500	4000×2500	4000×2500
Size of cushion hole (L-R×F-B)		mm	600×600	4050×1650	3300×1800	2550×1650	3450×1950	3450×1950	3450×1950	3450×1950
Speed of slide	Idle	mm/s	350	400	300	250	400	400	400	400
Speed of slide	Pressing	mm/s	45-30	40-20	25-10	20-8	25-10	25-10	25-10	25-10
Speed of cushion knockout		mm/s	60	120	80	150	100	100	100	100
Moving table type			/	↓	↓	↓	→	↓	→	↓
Height between table and floor		mm	750	650	650	550	650	650	650	700
Main motor power		KW	557	438.5	281	157.5	190	235	235	295

Yangzhou JFMMRI Metalforming Machinery Co., Ltd. is located in the beautiful Hanjiang Economic Development Zone of Yangzhou. We are a new modern enterprise invested by Jinan Foundry and Metal Forming Machinery Research Institute and Yangzhou Metalforming Machine Group Co., Ltd.

Our company produces a variety of straight-side mechanical presses of less than 1250 tons with one, two or four points for current or special use, and all kinds of hydraulic machines of below 3000 tons for current or special use, and related automated production lines. The technologies of our products have reached advanced level. All our products are applied extensively in many fields, such as automobile, agricultural vehicle, light industry, home appliance, building material, military industry, and shipping. We can satisfy users completely in different level.

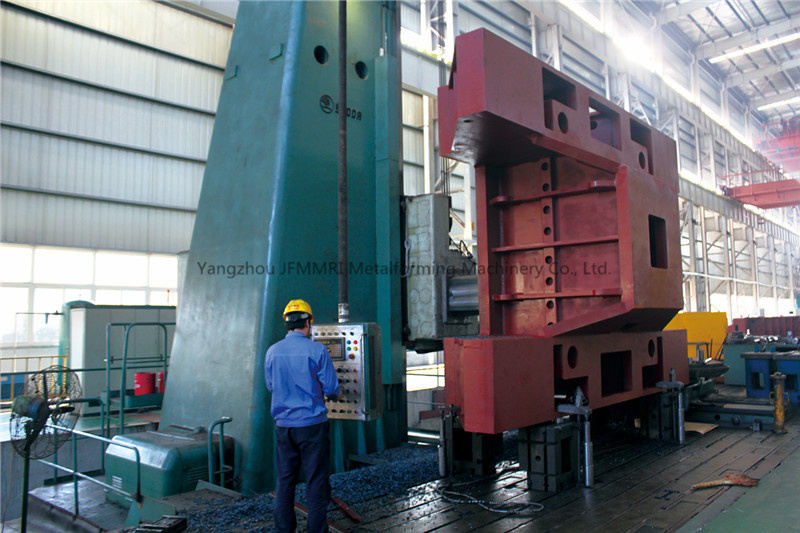

Using the peculiar advantages in design, development, debugging and machining in forging and stamping industry, we innovate continuously on the existing foundation of sale and service network, to offer optimum manufacture in the lowest price to the market and finally realize the benefits for both sides of supply and demand. Our company has always paid great attention to technical innovation since our company was set up in 2002, and we have R&D center and have developed more than 120 items of new products successfully. Our products have maintained continuous increase in sale, output, profit tax and market share, and especially are appreciated by foreign investment companies and domestic capital enterprises.

Our staff will adhere to the pursuit of "exceeding ourselves", and persist in implementing the management concept of "developing new products to survive, expanding the market for success, reinforcing the foundation for the development, and innovating the management for the efficiency", to build the brand of "Yangzhou JFMMRI". We are willing to work together with all colleagues and friends to improve your machinery equipment level. Taking the industrial revitalization of nation as our responsibility, we strive to improve the overall quality of the enterprise, and provide high quality products and services for our new and old customers.
