Table & Stacker Material:
Steel
Types:
Europe Market and Us Market
Capacity:
300kg
Max Lift Height:
900mm
Min Height Of Table:
280mm
Table Dimension:
815*500*50mm
Weight:
76kg
Application:
Building Crane
Carrying Capacity:
Weight Level
Driven Type:
Hydraulic
Running Mode:
Moving
Feature:
Insulating
Product Description

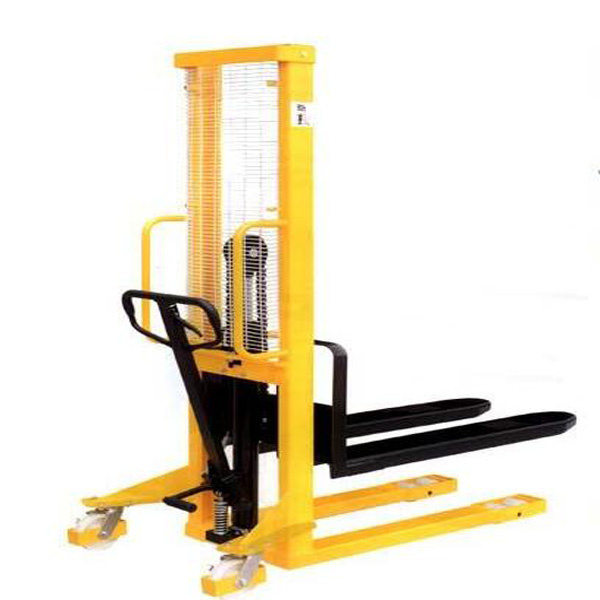

Specifications of Manual stacker: Steel profile construction An economical lift to handle tasks from transporting dies and molds skids and pallets. Sturdy and compact enough to fit through standard doors and to operate in congested areas. Precision engineered for smooth performance and exceptional durability Lifting function operated by foot and hand controls. Allow the operator to work without having to perform extreme body movements.
Dimensions of Manual stacker:
Model
DSMS1010
DSMS1012
DSMS1000
DSMS1025
DSMS500
DSMSS1000
DSMSA500
DSMSA1000
DSMSA1500
Capacity (kg)
1,000
1,000
1,000
1,000
500
1,000
500
1,000
1,500
Lift height H(mm)
1,000
1,200
1,600
2,500
1,500
1,500
1,600
1,600
1,600
Load center C (mm)
600
600
600
600
600
600
400
400
400
Lower fork height h (mm)
90
90
90
90
65
65
90
90
90
Fork Length L (mm)
1,100
1,100
1,100
1,100
800
1,100
800
800
800
Width over the forks E (mm)
550
550
550
550
745
550
745
950
950
Lifting speed (mm/min)
25
25
25
25
25
25
25
25
25
Lowering speed
adjustable
Overall Length A (mm)
1,640
1,640
1,640
1,640
1,340
1,640
1,340
1,340
1,340
Overall Width B (mm)
740
740
740
740
740
740
810
1,000
1,000
Overall Height F (mm)
1,490
1,690
2,050
1,800
2,000
2,050
2,000
2,090
2,090
Net weight (kg)
185
200
230
276
217
336
147
250
255
Specifications of Scissor lift table: Valuable material handling for use as a feeding table on assembly line. Structural heavy duty steel construction. Easy action foot operated hydraulic lift for raising table top to desired level. Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading. Hand operated table descent control. Over load by-pass valve protects operator and pump. Option: chrome plated handle, painted handle, folding handle&solid handle.
Dimensions of Scissor lift table:
Model
DSTEN150
DSTEN300/TUS300
DSTEN350/TUS350
DSTEN500/TUS500
DSTEN800/TUS800
Capacity
150 kg
300 kg
350 kg
500 kg
300 kg
Max. lifted height H (mm)
740
900
1,300
900
1,000
Min. Height of table h (mm)
225
280
348.5
340
420
Dim. of table (mm)
700 x 450 x 35
815 x 500 x 50
910 x 500 x 52
855 x 500 x 50
1,000 x 515 x 55
Handle Height A (mm)
825
1,000
970
970
996
Overall Length B (mm)
780
935
980
925
1,150
Foot pedal cycles to max height
25
32
55
45
55
Wheel Dia. D (mm)
100
127
127
127
150
Weight (kg)
46
76
125
86
115
Pcs/20' container
168
120
120
120
75
Carton Size (mm)
870 x 480 x 330
960 x 520 x 410
1000 x 520 x 400
960 x 520 x 410
1,200 x 605 x 440
Remark: Model TEN with CE certification for Europe Market and Model TUS without safety wheel guard for American Market
Dimensions of Motorcycle lift:
Model
Capacity lbs
Min. Height mm
Max. Height mm
N.W./G.W. kg
Packing Size mm
DSMCL 1500
1500
170
450
31/33
890 X 440 X 185
Dimensions of Hydraulic drum loader:
Model
Capacity lbs
Min. Height mm
Max. Height mm
N.W./G.W. kg
Packing Size mm
DSMCL 1500
1500
170
450
31/33
890 X 440 X 185
Dimensions of Drum Loader:
Model
DSDHL-300
Rated Lifting Capacity (kg)
300
Lifting Height
100
Dimension (L x W x H) (mm)
700 x 830 x 1150
Net Weight (kg)
35
