Product Name:

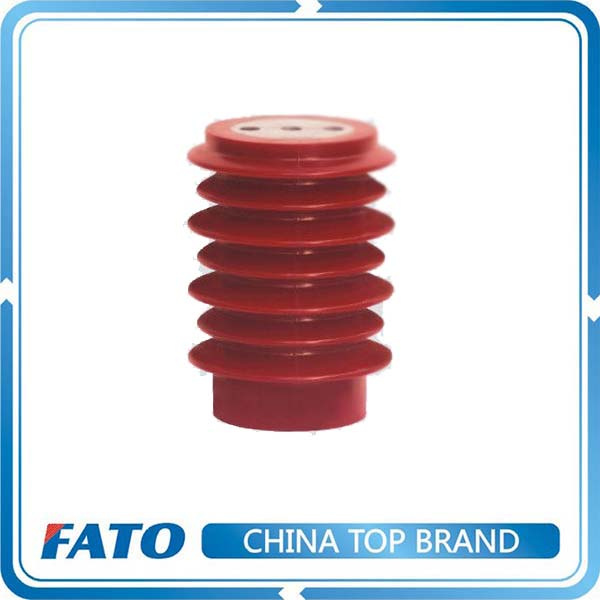

SMC Insulator
Product Type:
SMC
Maximum Sizes:
2440 X 1220 mm
Thickness:
From 3.0 - 80 mm
Colour:
Various
Application:
High-temperature
Material:
Composite Polymer
Structure:
Shackle Insulator
Type:
B Type Insulator
Color:
as Customers' Requirements
Brand:
OEM/Fato
Product Description
Description: 1. COMPOSITION AND PRESENTATION
FW T-SMC is a mould pressing insulator made from chopped fiberglass strands and polyester resin. At delivery time the presentation of the sheets is as follows:
- Maximum sizes: 2440 X 1220 mm.
- Thickness: From 3.0 - 80 mm
- Colour: Various
- Surfaces: Shining
- On demand we can deliver strips or finished components.
2. APPLICATIONS.
- Mechanical / Electrical Application: Air conditioner bases, mechanical parts, machine & instrument casings, electronic / electric laminated sheet boards, etc. -Transportation Application: Car door panels, hoods, cable boxes, odometers, instrumental panels, shades, etc. - Building Materials: Door panels, water tanks, purification tanks, ceiling panels, wall panels, bathroom water proof panels, sinks, bathtubs, etc. - Furniture Industry: Chairs, tables, work table face panels, student desks & chairs, screens, etc.
If need un-normal thickness, the tolerance will be confirmed by the seller and the buyer each other before placing the order .
5. MAIN TECHNICAL CHARACTERISTICS ( T-SMC )
ITEMS
CONDITIONS
TEST METHOD
VALUES
Appearance
23 ± 2 OC
---
Surface smooth, no bubble, no cracks and no impurity
Specific weight
20 OC
ISO1183-1:2004, IDT
1.75 1.95 g/cm3
Water absorption
24 h
ISO62:2008 IDT
£ 0.2%
Mould shrink rate
23 ± 2 OC
ISO 2577
£ 0.15%
Heat distortion temperature ( A )
---
ISO 75-2:2003 IDT
³ 240 OC
Resistance to impact ( charpy )
23 ± 2 OC
ISO 179-1:2000 IDT
³ 70 Kj/m2
Resistance to flexion
23 ± 2 OC
ISO 14125:1998 NEQ
³ 170 MPa
Insulating resistances
23 ± 2 OC
IEC 60167:1964 IDT
³ 1.0 X 1013 W
Insulating resistances
in water for 24 h
IEC 60167:1964 IDT
³ 1.0 X 1012 W
Dielectric strength
in transformer oil at 23 ± 2OC
IEC 60243-1:1998 IDT
³ 20 KV/mm
Dielectric dissipation factor at at 100Hz
23 ± 2 OC
IEC60250:1969 MOD
£ 0.02
Relative permittivity 100Hz
23 ± 2 OC
IEC60250:1969 MOD
£ 4.50
Arc resistance
23 ± 2 OC
IEC 61621:1997 IDT
³ 180 S
Proof tracking index ( PTI )
23 ± 2 OC
IEC 60112:1972 IDT
³ 600 V
Flame resistance factor
---
IEC 60707:1981
FV0
Thermic class
---
IEC 60216-1:2001 IDT
³ 155 OC - F
