Size:
Wire Drawing
Usage:
Wire
Type:
Horizontal Metal Drawing Machine
Product Description
We are one of the leading wire drawing machine provider in China, We can provide kinds of wire drawing machine such as:
Water Tank Type Wire Drawing Machine
Horizontal Wire Drawing Machine

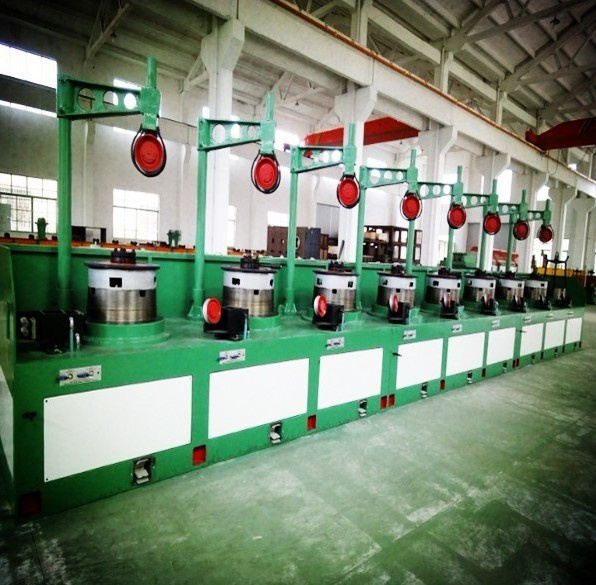

Straight-Line Wire Drawing Machine
Headstand Wire Drawing Machine
Single Wire Drawing Machine
Pulley Type Wire Drawing Machine
Double Drum Wire Drawing Machine
Looper Wire Drawing Machine
Machine model
LZ/300
LZ/350
LZ/400
LZ/450
LZ/500
LZ/560
LZ/600
LZ/700
LZ/900
LZ/1200
Block dia.(mm)
300
350
400
450
500
560
600
700
900
1200
Strength of inlet wire(Mpa)
Less than 1250
Number of block
2~12
2~12
2~12
2~12
2~12
2~13
2~9
2~9
2~9
2~9
Max.Inlet wire dia.(mm)
Φ2.8
Φ3.6
Φ4.2
Φ5
Φ5.5
Φ6.5
Φ8
Φ10
Φ14
Φ16
Max.Outlet wire dia.(mm)
Φ0.6
Φ0.6
Φ0.75
Φ1
Φ1.2
Φ1.35
Φ1.6
Φ2.2
Φ3
Φ5
Min.Drawing speed(m/s)
20
20
20
18
18
15
12
10
8
6
Motor power(Kw)
7.5-11
7.5-15
7.5-22
11-37
22-45
22-55
45-75
45-90
90-132
110-160
Block
Block material is ZG45 steel, block surface is polished and with Tungsten carbide -spray coating, completed with surface hardening, the hardness (>)HRC60 with good abrasion resistance. Inside is narrow slit type water cooling and outside is 360 0 circular air cooling. Reasonable design of cone degree to ensure wire in order.
Transmission system
Hardened tooth surface gear box + two grades strong narrow V-belt to ensure stable & low noise transmission
Speed adjusting method
AC inverter speed adjusting
Die box
Die box consists of water cooling and lubricant compartment, die directly to be cooled by water, die box can be adjusted freely
Tuning device
Tuning roller is anti-abrasion coating,pneumatic tension tuning and tension are constant and adjustable.
Control system
AC inverter speed adjusting, PLC digital control, touch screen man-machine interface display, remote network control.
Pay-off
Spooler pay-off,high stand pay-off.
Take-up
Spooler take-up,trunk type take-up.
Noise(dB)
<82
Water supply
Water pressure ≥0.2Mpa
Compessed air supply
Pressure≥0.5Map
Emergency brake time(s)
≤3
Main functions
Automatic slowdown and stop at fixed length, broken wire detection and automatic stop. Positive and negative inching, left and right linkage of any block. Display of all failures information and its solution. Monitoring of all kinds of running information. humanized design, high efficiency and energy saving, and high degree of automation, easy operation and convenient maintenance.
Power Source
380 volt - 3 phase/50Hz
