Servo System:
Energy Conservation
Structure:
Horizontal
Plastic Type:
Thermoplastic
Plasticizing Way:
Screw Type
Clamping Way:
Hydraulic
Automation:
Automatic
Computerized:
Computerized
Certification:
CE
Type:
Injection Machine

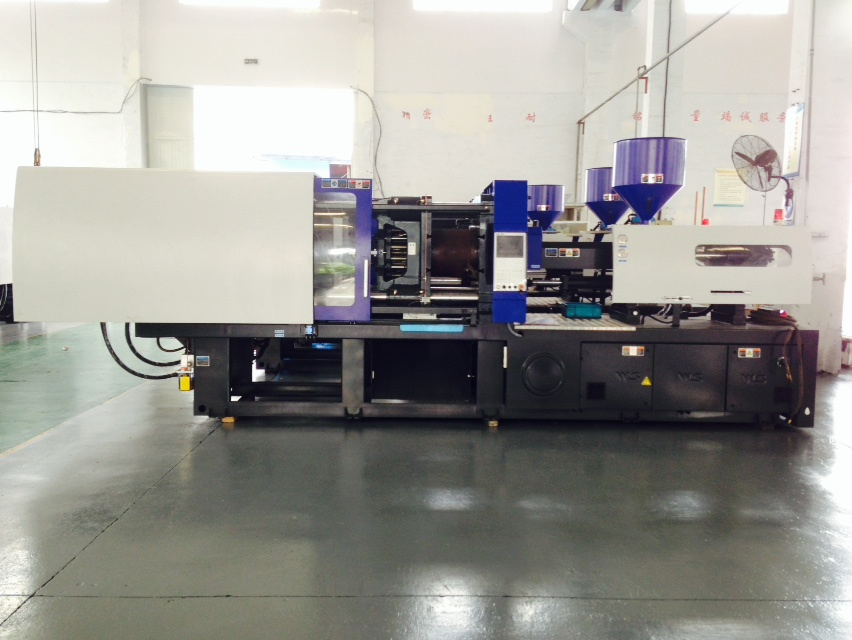

Product Description
Some of the important features:
Clamping system: Faster response, stable and high rigidity
Injection system: Accurate and flexible, lower rejection rate
Control system: Computer and simple operation,molding data memory system
Power system: Energy saving, high efficient and precise
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.
Other Information
Show High Precision:The accurate injection positioning,pressure, speed and pressure maintaining,to ensure the repeatability error of injection accuracy less than 0.3% to achieve precision molding.
Super EnergySaving Features:Compared with standard injection machine,the energy saving rate can reach 40%-70% for the same plastic production.
High Efficiency:Compared with standard machine,the total efficiency can increase by 10% and dragging capacity is can increase by18%.
High Response System:The system acceleration and deceleration performance is quite agile and force&speed regulation is very sensitive.The sampling processing speed can reach 100KHZ and system quick start time can reach 0.05s.
Maintain Stability and Reliability:The pressure or speed is stable and switch of pressure maintaining is smooth and accurate.
Low Oil Temperature:Avoid high pressure unloading and low oil temperature situation during operation.Improve the operation performance.promote using efficiency and save a large quantity of cooling water.
INTERNATIONAL CALSS NO
460/2980
SPECIFICATIONS
U/460C
Screw type
A
B
C
D
Injection
Screw diameter
mm
70
75
80
85
Screw L/D ratio
L/D
23.6
22
20.6
19.4
Shot volume(therretical
cm3
1501
1723
1960
2213
Injection weight(ps)
g
1366
1568
1784
2014
Injection rate
g/s
344
395
449
507
Injection pressure
Mpa
199
173
152
135
Screw Speed
rpm
160
Clamping Unit
Clamping force
KN
4600
Open stroke
mm
780
Space between tie bars(W*H)
mm
780*780
Max.Mould height
mm
800
Min.Mould height
mm
250
Ejector stroke
mm
220
Ejector force
KN
110
Others
Pump max. pressure
Mpa
16
Pump motor power
KW
45
Heating power
KW
29.3
Numbers of heating area
segment
5+1
Machine dimension(L*W*H)
m
8.05*2.1*2.8
Oiltank cubage
L
695
Machine weight
t
18
NINGBO BEILUN ALLWAY MACHINERY Co., Ltd is located in Hailong Industry Park Development Zone (Beilun), Ningbo, China, which is attached to Hailong Group. Our company is found in 1995, cover dozens of more than 80, 000m2 production base and has a professional technology engineer team who has been long engaged in design and manufacturing each type of machine flexibly. Besides, our company owns advanced CAM manufacturing and production facilities, and the whole process from material, parts, assembly and testing instruments is in accordance with ISO quality guarantee system. The engineering technology center has achieved modern management of CAD simulation optimization design. PDM design process management and ERP operation system.
Our company has got both 1st level energy conservation certification, ISO 9001-2008 certifacation & CE authentication for Injection molding machine (90-3000T), Die casting machine(Hot chamber 30-200T, Cold chamber 140-2000T, MG 140-2000T), Press punch machine (15-1000T). The OEM base of some Japan, Italy, Spain brand machines. Besides We have cooperation with European partner, to design our machine with innovation and perfection together, so as to bring more our European style machines to the market.
Group main products:
"WELLISH" DIE CASTING MACHINE

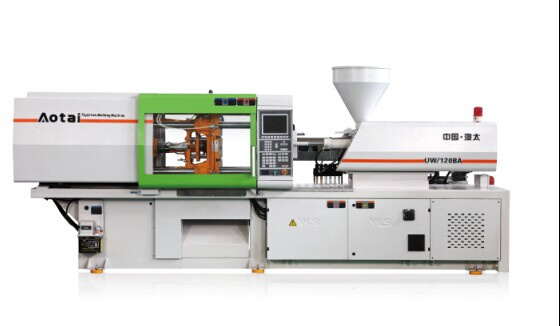

"AOTAI"INJECTION MOLDING MACHINE
