Shot Weight:
507gr
Tie Bar Sizes:
560*530mm
Injection Rate:
392g/S
Mold Height:
200-560mm
Open Stroke:
505mm
Type:
Injection Blow Molding
Structure:
Horizontal
Plastic Type:
Thermoplastic
Plasticizing Way:
Screw Type
Clamping Way:
Hydraulic & Mechanical
Certification:
SGS
Automation:
Automatic
Computerized:
Computerized
Product Description

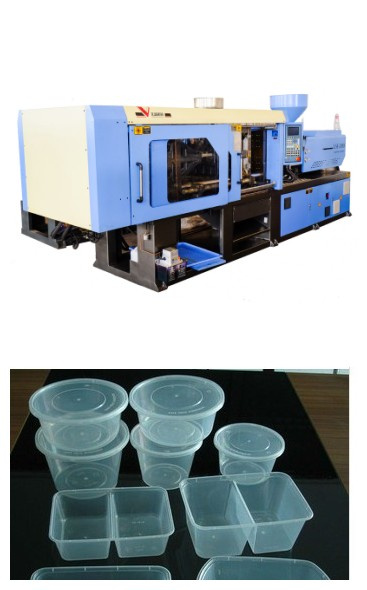

High Speed Injection Moulding Machine (LSF-258)
Injection speed is 2-5 times faster than ordinary machine, it is applicable for product of thin wall products.
Welcome contact us for more details and professional services.
Technical specification;
INJECTION UNIT
Unit
LSF-258
A
Screw Diameter
Mm
50
Screw L/D Ratio
L/D
24
Short Size
Cm3
557
Injection weight
G
507
Injection Rate
g/s
392
Plasticizing capacity
g/s
32
Injection Pressure
Mpa
223
Screw Speed
Rpm
330
CLAMPING UNIT
Clamp Force
KN
2580
Space Between Tie Bars
mm
560*530
Toggle Stroke
mm
505
Max. Mold Height
mm
560
Min. Mold Height
mm
200
Ejector Stroke
mm
150
Ejector Tonnage
KN
62
Ejector Number
P
9
OTHERS
Max. pump Pressure
Mpa
16
Pump motor powder
Kw
24
Heater Power
Kw
16
Machine Dimension(L*W*H)
M
5.3*1.5*1.95
Machine Weight
T
7.1

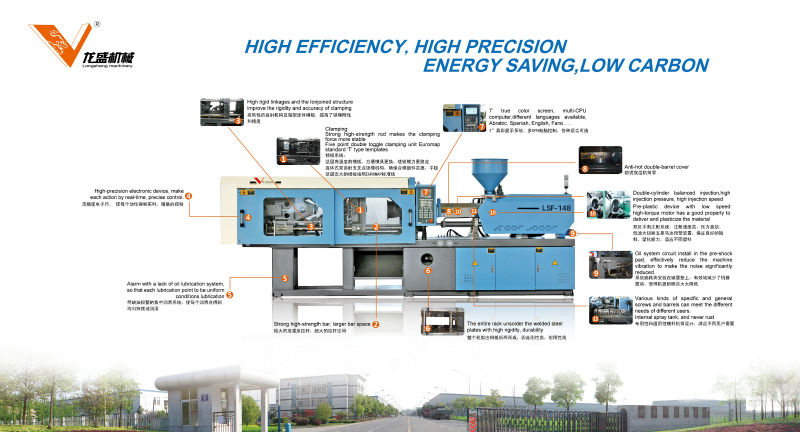

Some of the important features:
Clamping system:Faster response, steable and high rigidity
Injection system: Accurate and flexible, lower rejection rate
Control system: Computer and simple operation,molding data memory system
Power system: Energy saving, high efficient and precise
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.
Other Information
Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil,good for pump and valves
Long working life: Imported spare parts and updated version
Aftersales service: Professional & timely
