Prod Model: |
SL-50 SL-65 |
Markets: |
South America,Eastern Europe,Southeast Asia |
Machine Production Capacity: |
60 Kg/H |
Production Delivery: |
30-60 Days After Confirmation |
Automation: |
Automatic |
Making Method Of Parison: |
Extrusion-Blow Molding |
Computerized: |
Computerized |
Raw Material: |
PC,PE,PP,PS,PVC,EVA |
Product Description
Zhejiang Shuangli Plastic Machinery Co., Ltd.
Main products: Automatic plastic blow molding machine, blowing machine, bottle blowing machine and other related products.
Currently producing sales rotary automatic blow molding machine and reciprocating automatic blow molding
Machine is mainly used for the production of 5ml-10L polyethylene, polypropylene as the original the material of all kinds of plastic hollow containers, is currently one of the few professional manufacturer of blow molding machinery vendors.

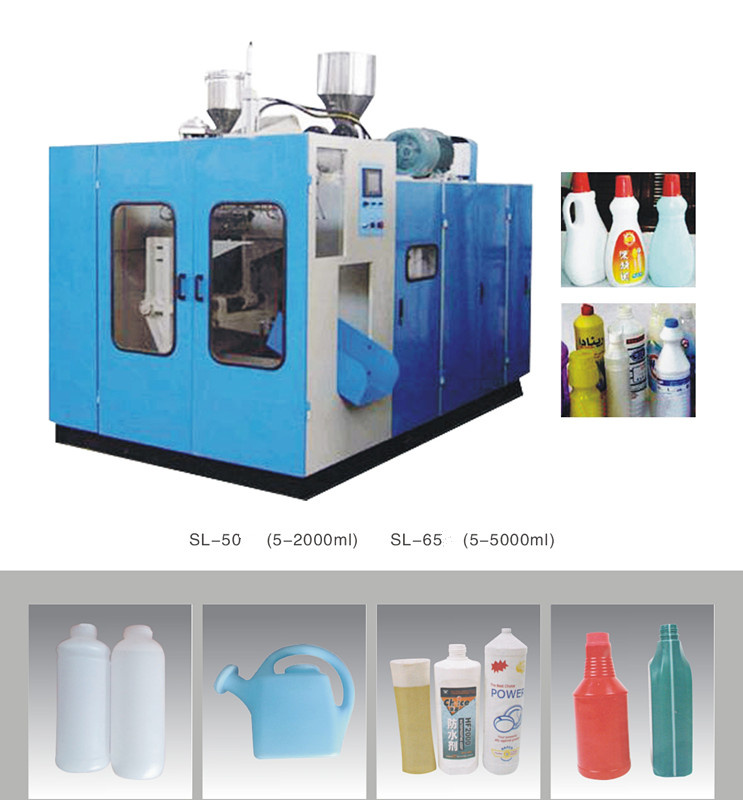

SL-50 SL-65 Hollow Hydraulic Blow Molding Machine adopts the most advanced structure, extrusion systems with a Hardened reducer, constant temperature system, the inverter control system adopted ten imports imported Mitsubishi, man-machine interface(touch screen)PLC. Hydraulic system uses imported hydraulic valves, seals 11 electro-hydraulic proportional control, apply to the production of raw materials PP, PE, PVC, EVC, PA hollow products.
Specification |
Units |
SL-50 Series |
SL-65 Series |
Applied Materials |
|
PE,PP,PVC,EVA |
PE,PP,PVC,EVA |
Max Container Capacity |
L |
2.5 |
6 |
Number of Die |
Set |
1.2.3.4 |
1.2. |
Output (drycycle) |
pc/hr |
1500 |
1000 |
Machine Dimension LxWxH |
M |
2.8x1.7x2.5 |
3.5x1.8x2.8 |
Total Weight |
ton |
3.2 |
4 |
Clamping Force |
KN |
38 |
68 |
Platen Opening Stroke |
mm |
130-370 |
150-500 |
Platen Size |
mm |
280x370 |
320x400 |
Max Mould Size WxH |
mm |
350x370 |
400x500 |
Mould Thickness |
mm |
135-210 |
153-300 |
Max Drive |
KW |
20.5 |
33 |
Total Power |
KW |
26 |
41 |
Fan Power for Screw |
KW |
0.14x3 |
0.14x3 |
Air Pressure |
Mpa |
0.6 |
0.6 |
Air Consumption |
m ³/min |
0.4 |
0.6 |
Average Energy Consumption |
KW |
12 |
16 |
Screw Diameter |
mm |
50 |
65 |
Screw L/D Ratio |
L/D |
25 |
25 |
Plasticising Capacity |
kg/hr |
30 |
60 |
Number of Heating Zone |
Zone |
4 |
5 |
Extruder Heating Power |
KW |
10 |
13 |
Extruder Driving Power |
KW |
11 |
15 |
Max Die Pin Diameter |
mm |
75 |
135 |
Center Distance of Double Die |
mm |
120 |
150 |
Center Distance of Tetra-Die |
mm |
75 |
85 |
