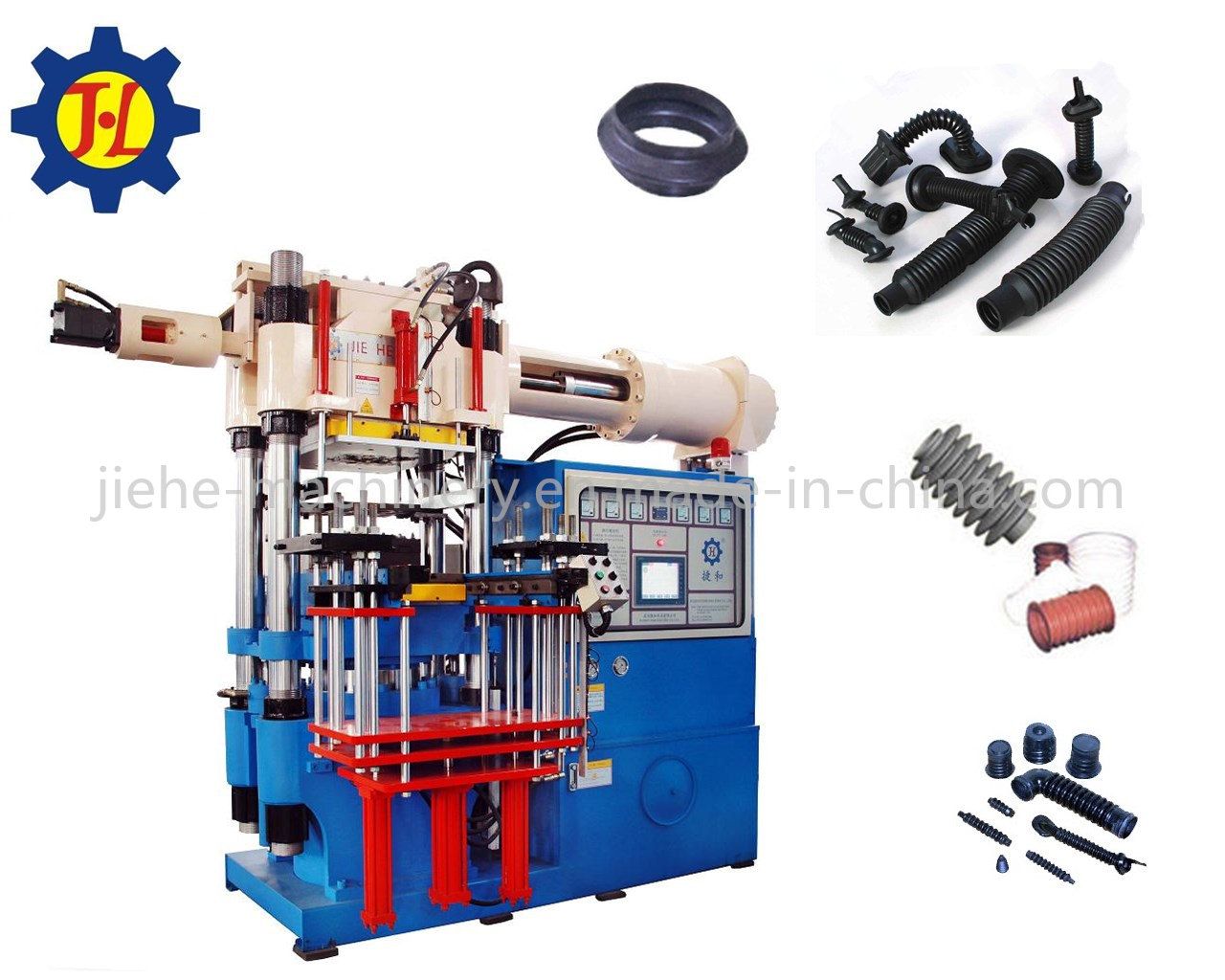

1.a special design of two-stage material feeding to avoid the bubble in the product 2.calculate and control injection volum precisely through an optical rule made in Germany 3.A Safety grating has been used to ensure the security of your operators while operating 4.A self-adjusting oil-way system to ensure the stable performance and reduce noise
other type:
Type:
JH-IH-200T
JH-IH-300T
JH-IH-400T
clamping force
200ton
300ton
400ton
stroke
480mm
550mm
550mm
heating plate size
503x508mm
580x600mm
700x700mm
injection capacity
1500/2000cc
3000cc
4000cc
motor power
15hp
20hp
20hp
piston diameter
355mm
450mm
500mm
Single shaft thermal electricity(kw)
16kw
18kw
28kw
total power
27kw
33kw
44kw
weight(kg)
6800
9000
11000
dimension:L*W*H(mm)
3200*2350*2450
3200*2350*2800
3980*2600*2800
type of mold opening
lift up:2RT/3RT/4RT
Suitable manufacturer:
Electronic industry,electric buttons, automobile-purpose rubber, rubber for common industries and household purposes,bottle blocks,medical rubber,trademark rubber,diamond blades tool, military&defense industry toy industry.
Anything detail. please contact us.
Suzhou Jiehe Industry Co., Ltd is located at Xiangcheng District, Suzhou, Jiangsu, China and covers an area of 12000 square meters. Our company was founded by a group of professional engineer who is well experienced in rubber manufacturing machinery. To meet our customers' requirements, we have been adhering to design innovation, quality first and also provide custom made service.
A good start comes from the high quality. Suzhou Jiehe attaches great importance to the details of the whole process of production and it aims to offering the highest quality to our customers. Our company specializes in producing rubber injection molding machine, vacuum hydraulic machine, plate rubber vulcanization machine, performing machine, framework oil seal machine, silicon cutting machine and so on.
Our after-sale service network is always at your side and it also has service hotline to tackle with your complaint and feedback timely. We also supports technical service in terms of the problem results from the machine. We insist that our products are the best choice to the manufacturers who operate rubber electronic parts, auto parts, conductive rubber, seal type, sports equipment, medical equipment and various containers.
We will constantly follow the policy of taking advanced innovation to promote development, brand strategy and fist class service. And we will try our best to satisfy our customers.
Our products:
Suitable For:

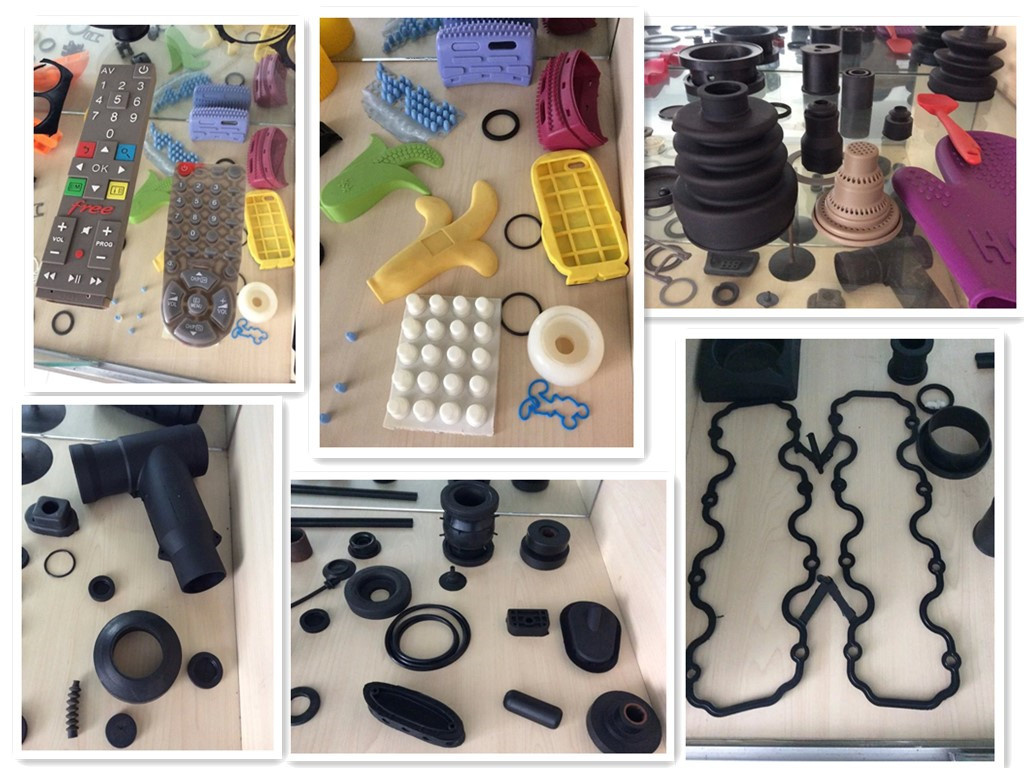

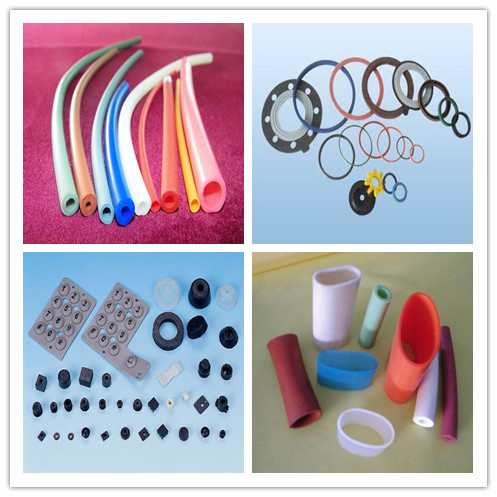

O-rings, Gasket, Packings, Keypad, Roller, Pharmaceutical stopper, Piston of syringe, Automotive parts, Anti-vibration products, Silicone product and many other rubber articles.
Suitable manufacturer:
Electronic industry, electric buttons, automobile-purpose rubber, rubber for common industries and household purposes, bottle blocks, medical rubber, trademark rubber, diamond blades tool, military&defense industry toy industry.
Suzhou Jiehe Industry Co., Ltd is located at Xiangcheng District, Suzhou, Jiangsu, China and covers an area of 12000 square meters. Our company was founded by a group of professional engineer who is well experienced in rubber manufacturing machinery. To meet our customers' requirements, we have been adhering to design innovation, quality first and also provide custom made service.
A good start comes from the high quality. Suzhou Jiehe attaches great importance to the details of the whole process of production and it aims to offering the highest quality to our customers. Our company specializes in producing rubber injection molding machine, vacuum hydraulic machine, plate rubber vulcanization machine, performing machine, framework oil seal machine, silicon cutting machine and so on.
Our after-sale service network is always at your side and it also has service hotline to tackle with your complaint and feedback timely. We also supports technical service in terms of the problem results from the machine. We insist that our products are the best choice to the manufacturers who operate rubber electronic parts, auto parts, conductive rubber, seal type, sports equipment, medical equipment and various containers.
We will constantly follow the policy of taking advanced innovation to promote development, brand strategy and fist class service. And we will try our best to satisfy our customers.
Our products:
Suitable For:
O-rings, Gasket, Packings, Keypad, Roller, Pharmaceutical stopper, Piston of syringe, Automotive parts, Anti-vibration products, Silicone product and many other rubber articles.
Suitable manufacturer:
Electronic industry, electric buttons, automobile-purpose rubber, rubber for common industries and household purposes, bottle blocks, medical rubber, trademark rubber, diamond blades tool, military&defense industry toy industry.
