Hy-Filling HDPE Water Bottle /Plastic Bottle Blowing Molding Machine
| Price: |
US $ 50000-200000/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
CPJ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Materail: |
304 |
| Weight: |
5t ~ 18t |
| Type: |
Extrusion Blow Molding Machine |
| Raw Material: |
PET |
| Making Method Of Parison: |
Multilayer Blowing |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Certification: |
ISO9001:2008 |
Product Description
Introduction & Process:

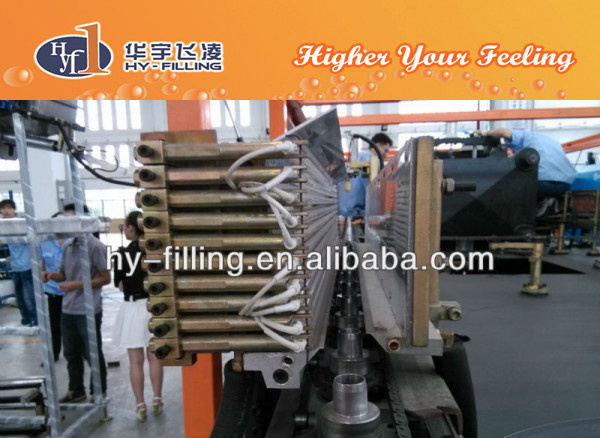

The full automatic rotary stretch blow molding machine is widely used for the blowing plastic container (including hot Filling bottle), suitable for the product of water, tea drink, dairy, fruit juice, carbonated beverage and pharmaceutical Injection etc. With the structure of multi-mold in one machine, can complete the actions of preform unscrambling, Preform feeding, heating, feeding, stretch, blowing, cooling and bottle conveying etc full automatically. The main Components on the machine are of international famous brand. The machine owns the advantage of high automation, Reliable and stable operation and low power consumption.
| Name | Item | Data |
| Specification of Bottle | Bottle Capacity | 0.2~2.0Liter |
| Max. Body Diameter | 120mm |
| Max. Height of Bottle | 320mm |
| Max. Diameter of Bottle Mouth | 50mm |
| Max. Preform Height | 145mm |
| Mould | Mould Cavity | 16Cavities |
| Output | 500ml bottle (Cold filling bottle) | 20, 000pcs/h |
| Rate of finished product | ≥ 99.7% |
| Cooling System | Water inlet temperature | 10 |
| Water inlet pressure | 5.0~6.0Mpa. |
| Flow Rate | 250L/min |
| Cooling Capacity | 20P |
| Air Source | High pressure | 3.5~4.0Mpa |
| Blowing air flux | 14m³ /min (500ml) |
| Low pressure | 0.8~1.0Mpa |
| Blowing air flux | 3.5~7.0m³ /min |
| Filtering grade | 0.01micron |
| Humidity | Dehumidified |
| Dimension of Machine | L × W × H (Blowing) | 2350× 3310× 3150mm |
| Weight (Blowing) | 9000KGS |
| L × W × H (Oven) | 4200× 1250 × 2200mm |
| Weight | 2000KGS |
| Motor Power | Total Power | 216kW |
| Main Motor | 4kW |
| Really Power Use | 35-70kw |
HY-FILLING, as one of famous beverage and dairy packaging machinery manufactures in China, it is located in Zhangjiagang city which is very near Shanghai with beautiful scenery and convenient transportation. Owning the top-ranking R&D center and more than 20 senior engineers and 30 senior technicians, our products has covered all the domestic markets. Furthermore, we have exported our products all over the world, such as American, Argentina, Brazil, Russia, Poland, Turkey, Iran, South Africa, and Southeast Asia, etc, and more than 600 filling lines running all over the words till to now. We also offer our customers with the best technical plan, superior products, and perfect after-sale service to optimize the process of production, and supply our customers with reliable machinery. With persistent development, now our company is becoming larger and larger, thanks for your support and trust on our machinery. We consider "Exploring the highest technology in machinery industry; Creating a brilliant future in this field" as our company policy. And we deeply believe that tomorrow of HUAYU COMPANY will be much more brilliant.
Main Products:
1.2000-48000 BPH Mineral/Pure Water Bottling Line;
2.2000-40000 BPH Juice Bottling Line;
3.2000-40000 BPH Carbonated Beverage Bottling Line;
4.3000-40000 BPH Beer Bottling Line;
5.6000-30000BPH Aluminium Can Filling Line;
6.120-2000 Barrels/Hour 3-Gallon & 5-Gallon Filling Line;
7. Edible Oil Filling Line;
8. Aseptic Brick Packing Machine;
9. Aseptic Pouch Packing Machine (Pillow Type);
10. PET Preform Injection Machine;
11. Bottle Blow Moulding Machine;
12. Water Treatment;
13. UHT Plant;
14. Carbonating Mixer;
15. Bottle Unscrambler;
16. Film Shrink-wrapping or Carton Box Packaging Machine;
17. PA-Depalletizer;
18. Turn Key Project.
