Use:
Sheet Metal Drawing,Bending,Blanking,Extrusion
Forging Forming Method:
Mold Forging

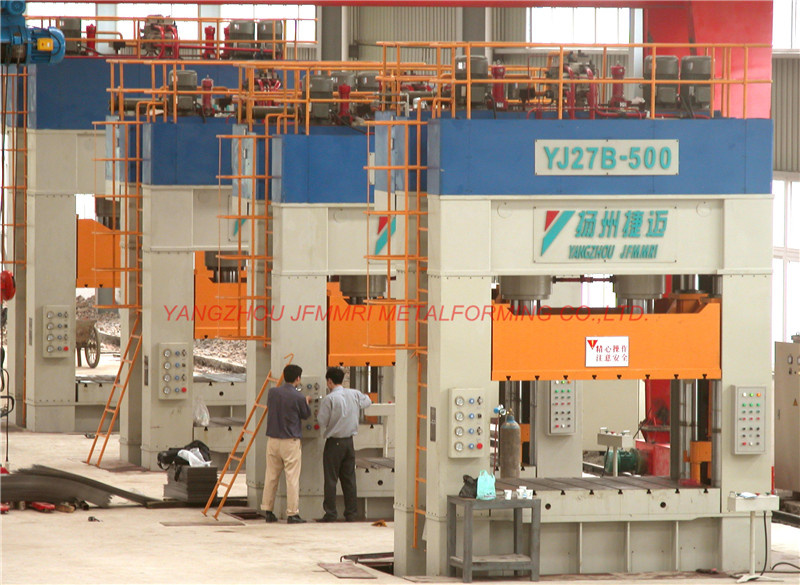

Product Description
Fit for sheet metal parts of the drawing, bending, extrusion, blanking and other processes; Good performance ,high precision , ability of anti unbalance loading relatively strong; Variety of working standards process and forming methods to choose; Preferred international brands can be seal ,hydraulic, electrical components, to ensure high product reliability; Moving-table/quick die change, blanking buffer, hydraulic ejector, photoelectric protector and other optional accessories are available for the press according to the user's need
Items
YJ27B-200
YJ27B-250
YJ27B-315
YJ27B-315
YJ27B-315
YJ27B-315Q
YJ27B-400
YJ27B-500
Nominal force
KN
2000
2500
3150
3150
3150
3150
4000
5000
Cushion force
KN
800
1000
1250
1000
1250
1250
1600
2000
pressure of hydraulic system
Mpa
~25
~25
~25
~25
~25
~25
~25
~25
Daylight
mm
1000
1000
1200
1200
1200
1300
1400
1400
Slide stroke
mm
650
650
700
800
700
900
800
800
Cushion stroke
mm
250
250
280
300
300
280
300
300
Size of table(L-R×F-B)
mm
1450×1350
1600×1200
1500×1200
2000×1500
2700×1800
3000×2000
2300×1500
2400×1600
Size of cushion hole (L-R×F-B)
mm
900×900
1050×750
1050×750
1200×1050
2000×1200
2400×1500
1350×950
1950×1050
Speed of slide
Idle
mm/s
150
150
200
200
250
180
250
250
Pressing
mm/s
20-8
25-10
25-10
20-8
25-10
25-10
25-10
25-10
Speed of cushion knockout
mm/s
50
60
60
60
60
60
60
60
Main motor power
KW
18.5
29.5
37
30
37
37
45
60
Items
YJ27B-500
YJ27B-500Q
YJ27B-630
YJ27B-630Q
YJ27B-800
YJ27B-1000
YJ27B-1250
YJ27B-1600
Nominal force
KN
5000
5000
6300
6300
8000
10000
12500
16000
Cushion force
KN
2000
2000
2500
2500
3500
4000
5000
5000
pressure of hydraulic system
Mpa
~25
~25
~25
~25
~25
~25
~25
~25
Daylight
mm
1300
1400
1500
1900
1500
1600
1800
1200
Slide stroke
mm
800
900
1000
1300
900
1000
1200
500
Cushion stroke
mm
300
300
400
350
350
350
350
200
Size of table(L-R×F-B)
mm
2700×1800
2800×2000
2700×1800
4000×2200
3000×1500
3200×2200
3600×2400
1600×1500
Size of cushion hole (L-R×F-B)
mm
2000×1200
2100×1500
1950×1050
2850×1350
2100×900
2250×1350
2850×1650
750×750
Speed of slide
Idle
mm/s
250
250
250
300
120
250
250
120
Pressing
mm/s
25-10
20-8
20-8
35-14
5-12
20-8
20-8
12-5
Speed of cushion knockout
mm/s
60
100
50
70
80
80
80
30
Main motor power
KW
60
51.5
60
172
80
100
120
115

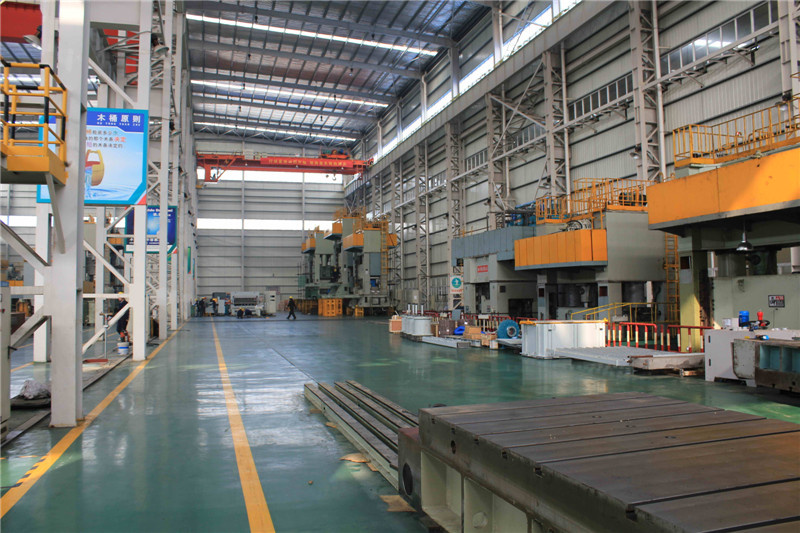

Yangzhou JFMMRI Metalforming Machinery Co., Ltd. is located in the beautiful Hanjiang Economic Development Zone of Yangzhou. We are a new modern enterprise invested by Jinan Foundry and Metal Forming Machinery Research Institute and Yangzhou Metalforming Machine Group Co., Ltd.

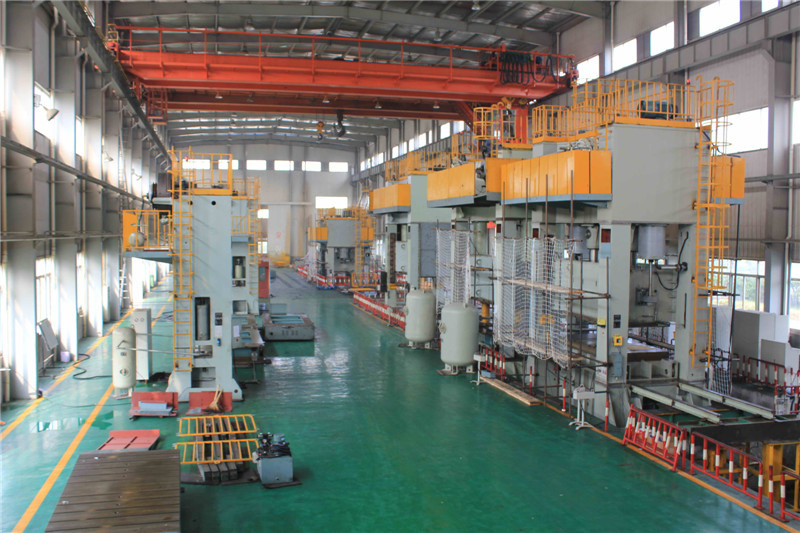

Our company produces a variety of straight-side mechanical presses of less than 1250 tons with one, two or four points for current or special use, and all kinds of hydraulic machines of below 3000 tons for current or special use, and related automated production lines. The technologies of our products have reached advanced level. All our products are applied extensively in many fields, such as automobile, agricultural vehicle, light industry, home appliance, building material, military industry, and shipping. We can satisfy users completely in different level.
Using the peculiar advantages in design, development, debugging and machining in forging and stamping industry, we innovate continuously on the existing foundation of sale and service network, to offer optimum manufacture in the lowest price to the market and finally realize the benefits for both sides of supply and demand. Our company has always paid great attention to technical innovation since our company was set up in 2002, and we have R&D center and have developed more than 120 items of new products successfully. Our products have maintained continuous increase in sale, output, profit tax and market share, and especially are appreciated by foreign investment companies and domestic capital enterprises.
Our staff will adhere to the pursuit of "exceeding ourselves", and persist in implementing the management concept of "developing new products to survive, expanding the market for success, reinforcing the foundation for the development, and innovating the management for the efficiency", to build the brand of "Yangzhou JFMMRI". We are willing to work together with all colleagues and friends to improve your machinery equipment level. Taking the industrial revitalization of nation as our responsibility, we strive to improve the overall quality of the enterprise, and provide high quality products and services for our new and old customers.
