Rolling Diameter:
18-60mm
Range Of Pitch Rolled:
1.0p-4.0p
Max.Length Of Thread Rolled:
Fixed(55mm) and Thru Both Available
Speeds Of Dies:
220/360/560/750r.p.m
Dies Outer Diameter:
118mm(130mm)
Dies Inner Diameter(Keyway):
40mm(12*6)
Dies Width:
25-60mm
Spindles Traveling:
190-105mm
Motor Power:
5HP(3.7kw)
Product Description

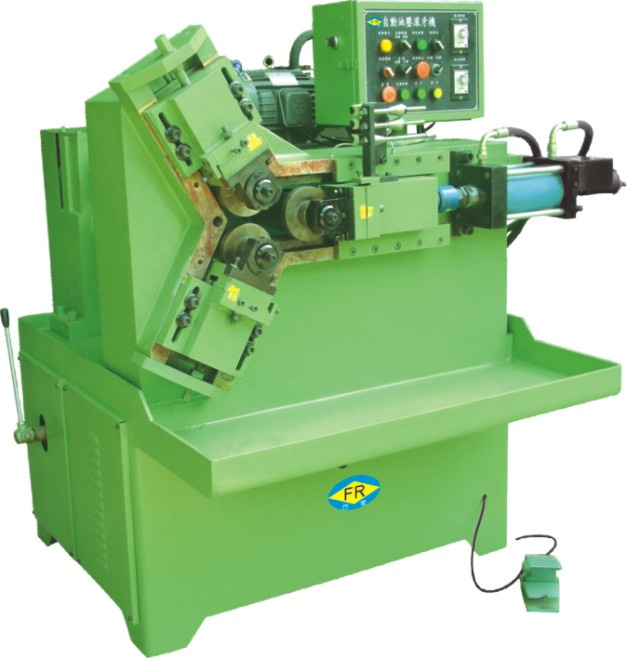

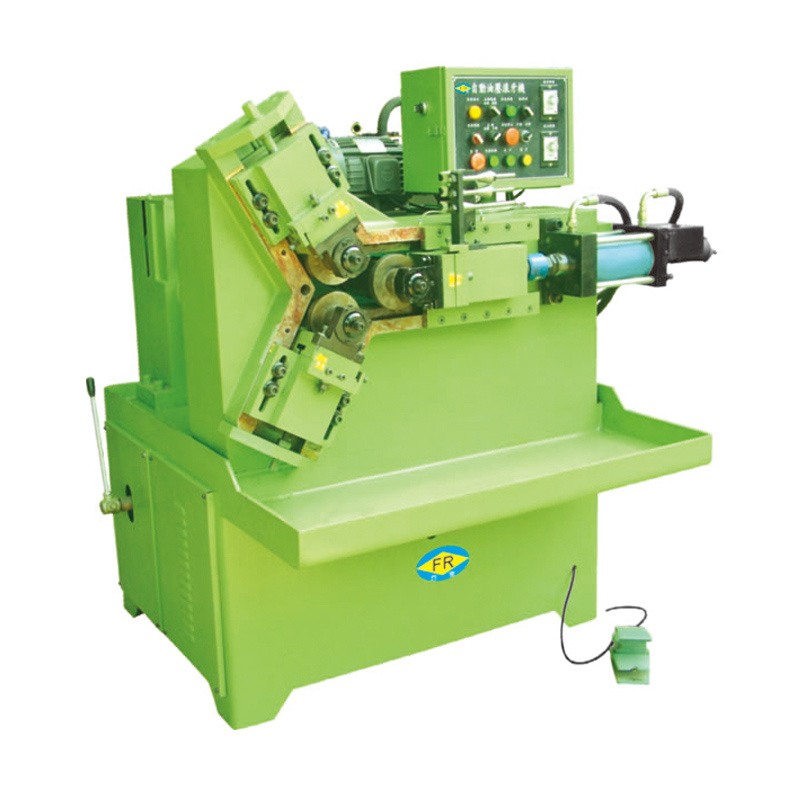

Hydraulic Thread Rolling Machine (FR-60X60)
Hydraulic Thread Rolling Machine is suitable for rolling thread, rolling cobweb, rolling knurling, roll cross flower, rolling groove on metal pipe.
Mechanical structure:
Two axles fixed (size can be adjusted within allowable range) which on 3 axle vertical machine. Cam push forward or back through the third axis, Taiwan brand thread rolling machine technology.
Manner of working:

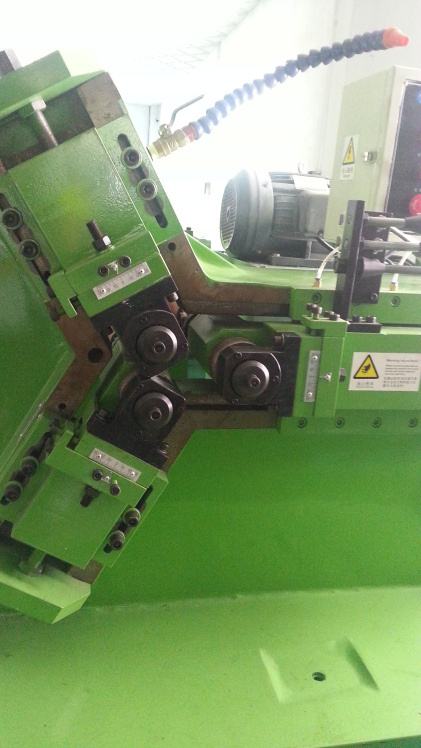

The pipe which need to rolling thread are inserted into the middle of the three-wheel, roller cone squeeze the workpiece to making thread, designed for pipe.
Advantage: 1. Low noise, stable performance, high precision and durable. 2. Fixed roll and thru roll both available. 3. According customers'requirement, add to automatic feeding device 4. Suitable for processing small pitch and long large parts. 5. Principle of Triangular support. 6. Square guiding line design. 7. Taiwanese column injection pump and Hydraulic system. 8. Japanese bearing, axles and gears withr heat treatment and fine grinding, the machine with small noise and long-term durability.
Quality Process Certifications: ISO 9001-2008, BV, SGS
Tube diameter
18-60mm
Thread pitch
1.0P-4.0P
Max.length of thread rolled
fixed(mm) and thru both available
Speeds of dies
220/360/560/750r.p.m
Dies outer diameter
118mm(130mm)
Dies inner diameter(keyway)
40mm(12*4.8)
Dies width
25-60mm
Distance of die-spindles
190-105mm
Output(mm/min)
4-25pcs/min
Rollers obliquity
±3°
Machine motor
6HP
Hydraulic motor
3HP
Hydraulic pressure
12TONS
Weight (reference)
1200kg
Dimension(L*W*H)
1600mm*1500mm*1600mm
Dong Guan Fang Rong Machinery Factory, founded in 2000, is a professional manufacturer that integrates development, production and sale. Fang Rong is special in production thread processing equipment and precision cold drawing machines. In 2005, Fang Rong factory passed the ISO9000: 2001 quality system certification, and received a number of patents. Now, Fang Rong is developing and selling various machines, such as
1) Thread processing equipment:
A, thread rolling machines (rolling machines)
B, threading machines (air pressure, hydraulic)
C, thin tube rolling machines (lamp rolling machines)
D. The whole tooth machines
E. Tapping machines of six-axis
2) Precision cold-drawing equipment:
A, drawing machines,
B, straightening machines,
C. Pointing machines
Over the years, our goal has been to create professional and classic equipment, first-class products and best service to achieve product specialization, service professional and team specialization. After through Fang Rong people's unremitting efforts, our products are very popular at home and abroad. The prime quality and the best service are confirmed and recognized by customers in China and abroad.
