Type: Spray Booths
External Size: 7000*5000*3200
Internal Size: 6900*3900*2600
Voltage: 220V/380V
Certification: CE
Packaging Detail: Proper packing suitable for container loading.
Delivery time within 10 days
Other use
Food Industry: Rice Biscuit( rice cookies covered with snow-like sugar )assembly line, grilled chicken, biscuit, egg roll, roasting shredded squid oven, oven for roast duck, smokeless oven, griddle, middle eastern oven, hot pot oven, roasting pachyrhizus oven, snack car, soup oven, cooking assembly line, infra-red gas baking pan, deep-fry assembly line, water-removing machine, baking, etc.
Painting Industry: Liquefied or powered painting baking,curing, per-heating oven, preliminary treatment of heating, desiccating wood, galvanization drying assembly line, phosphatization drying assembly line
Fiber industry: Carpet latex dryer, dyeing dryer, printing dryer, textile dryer, industrial clothes dryer, latex gloves drying assembly line
Glass and ceramics industry: Enamel firing dryer, glass oven, heat-setting machine, mould drying, fritting, parching
Paper industry: All kinds of paper dry lines and auxiliary drying heat wall
Farming and animal husbandry: Heating of barton, heating of crops, grain dryer
Item | Specifications |
Outside Dimension | 7050x5050x3500mm |
Inside Dimension | 6900x3900x2800mm(L×W×H) |
Main Door | 3-folds: 300 0×2750mm (W×H), aluminium alloy door frame |
Personal Door | 1-fold: 800×1900mm (W×H),aluminium alloy door frame |
Wallboard | EPS colorful steel skin panel,75mm thick,steel 0.476mm thick,tongue groove style,compound construction,anti-flame and heat-insulation, aluminium roof panel. |
Basement & Floor | Complete steel assemble, height is 300mm, pave 3rows indented plates and 2rows grilles on the metal basement, 2Pcs ramps: 800×2000mm (W×L)/pc |
Lighting System | Ceiling Lights: 8Units×3Pcs=24Pcs×40W, with electronic ballasts,power-coated light box.Side Lights: 6Units×3Pcs=18Pcs×36W, with electronic ballasts, vertically set,power-coated light box. |
Generator Setting | Intake air from side back direction, quadrate steel frame, colourful coated steel plate |
Intake Fan | 2 sets of double-intake centrifugal fans for intake air, direct drive,5.5kw each,air capacity 30000m3/h in total. |
Extract Fan | 1 set of double-intake centrifugal fan for exhaust air, direct drive,7.5kw, air flow 20000m3/h in . |
Number Of Air Changes (times/hour) | 290 |
Wind Velocity At Full Load Inside The Room(M/S) | 0.3m/s |

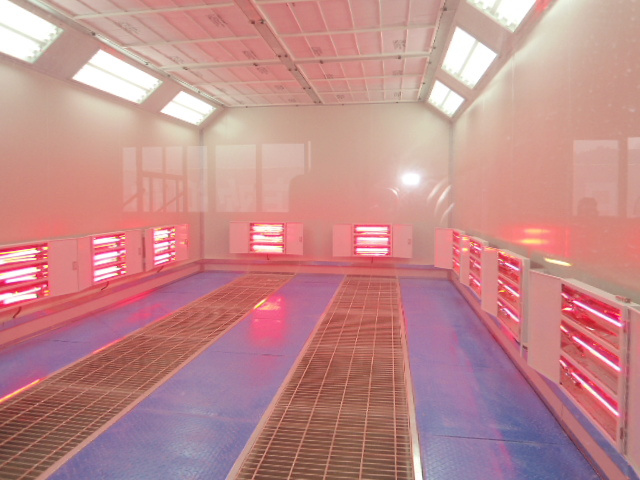

Heating System | Infrared heat lamp heating: roast lamp is fixed on the wall, each roast lamp 1 kw, 3 teams in each group, total 24 kw power.(Infrared heat lamp number can change according to customer requirements) |
Maximum Working Temperature | 80 |
Heating Rate(/min 20--60) | 3-5 |
Filtering System | Pre-filter,600G high efficiency filter(ceiling filter),floor filter(fiberglass filter),activated carbon filter. |
Control Panel | Spraying, heat spraying, baking temperature, time setting, failure indicator, lighting switch |
Filter Efficiency | ≥98% |
Noise(db) | ≤75 |
Colour | Blue,red,white |
Total power(Kw) | 45KW |
Qingdao Hua Yushun Commercial Co., Ltd belongs to Captain Auto Equipment Group, which is responsible for exporting for all the products of Captain Group. And Captain is a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. Captain developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, Captain established Qingdao Commercial Center, which is operated by Qingdao Hua Yushun Commercial Co., Ltd who is responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.
· Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.
· After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.
Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
