Product Description
SONLY's "U-TS"series with clamping force ranges from 98ton to 3400ton injection molding machine. Except the normal machine, it also have special machine for PVC, PET, Variable Pump, clear double color, servo-motor machine.
Excellency of this series machine:
A: High rigidity, excellent performance, and fast response, energy efficient and durable.
B: Products have obtained praise and good comment from domestic and foreign customers with its excellent service and quality.
C: We use high-quality of steel casting for the machine.
D: We have testing equipment for testing the material such as the plate.
E: The front and moving plate has T-slot, it is easy for change mould.
Clamping unit:
1. Internally-rolled 5-point double toggle mold clamp structure, greatly increases rigidity and precision of the mold clamp unit.
2. With box type bridge structure, moving platen, and high rigidity continuous rear platen reinforced through finite-element analysis, we guarantee that the mold platens are not deformable and are durable.
3. The tie rods are made of high quality structural alloy steel plated with hard chromium, with high mechanical strength and fatigue strength.
4. Provided with low-pressure mold protection device.
5. Multi stages controlling of mold clamp pressure, speed and position.
6. Mold thickness adjusted through ring gear driven by hydraulic oil motor.
7. Several hydraulic ejection modes.
Injection unit:
1. Use of double guide posts and dual-cylinder balance injection device, guarantees that balanced and uniform forces are applied on the screw during injection and moving forward.
2. High quality alloy screw nitride or with chromium plating, and nitride barrels, are protected against corrosion and fatigue, which greatly increase their service life.
3. With fine adjustment of nozzle centering.
4. Screw preplasticizing driven by high torque hydraulic motor device.
5. Multiple injection speed, pressure and position settings.
6. Special screws and barrels are provided according to different properties of engineering plastics to ensure the molding quality of finished products.
Lubricant unit:
1. With use of volumetric electrical lubricator, automatic centralized lubrication and uniform oil distribution in the pipeline, the machines have high lubrication efficiency and long toggle life. Hydraulic unit:
1. Well-known oil pump and control valves in the world are used, to execute accurate controlling over the force, speed and direction of hydraulic mechanism and ensure the accuracy, reliability, stability and durability of the machine.
2. Control system of the constant displacement pump ensures steady outputs and high response.
3. Main hydraulic elements and seals are international well-known brands.
4. The pipelines are arranged more reasonably and better, and thus ensure easy maintenance.
Due to constant updating of technical design, please forgive no further notice in case any change of above configuration.

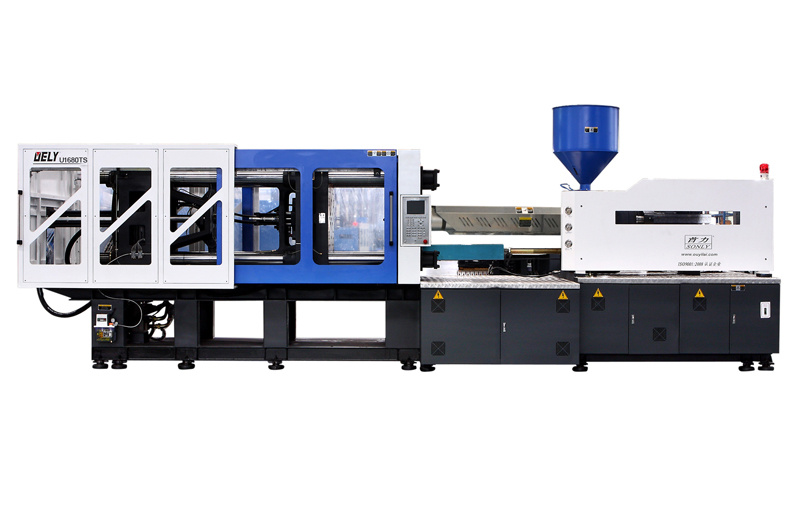

U1680TS
UNIT
A
B
C
D
INJECTION UNIT
SCREW DIAMETER
mm
120
130
140
150
SCREW L/D RATIO
L/D
23.8
22
20.4
19.1
SHOT VOLUME(THEORETICAL)
cm3
7459
8755
10152
11654
INJECTION PRESSURE
Mpa
192.5
164
141.4
123.2
SCREW SPEED
rpm
90
SHOT WEIGHT(THEORETICAL)(PS)
g
6788
7967
9239
10606
SHOT WEIGHT(THEORETICAL)(PS)
oz
239.439
281.027
325.896
374.116
CLAMPING UNIT
CLAMPING FORCE
Kn
16800
OPEN STROKE
mm
1600
SPACE BETWEEN TIE BARS(W*H)
mm
1555*1430
MAX. MOULD HEIGHT
mm
1500
MIN. MOULD HEIGHT
mm
680
EJECTOR STROKE
mm
400
EJECTOR FORCE
Kn
363
EJECTOR NUMBER
28+1
DIE HOLE DIAMETER
mm
315
OTHERS
SYSTERM PRESSURE
Mpa
16
MOTOR POWER
Kw
45+45+45
OIL TANK CUBAGE
L
2100
MACHINE WEIGHT
Ton
110
BOUNDARY DIMENSION(L*W*H)
m
13*3.5*3.5
SERVO MOTOR CAPACITY
Kw
31.7+47+47
