North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Bottle Liter:
0.2-5L
Machine Cavity:
1
Machine Output:
600-900PCS/H
Making Method Of Parison:
Stretch Blow
Raw Material:
PET
Certification:
SGS
Automation:
Automatic
Computerized:
Computerized
Type:
Pet Bottle Blowing Mould Machine

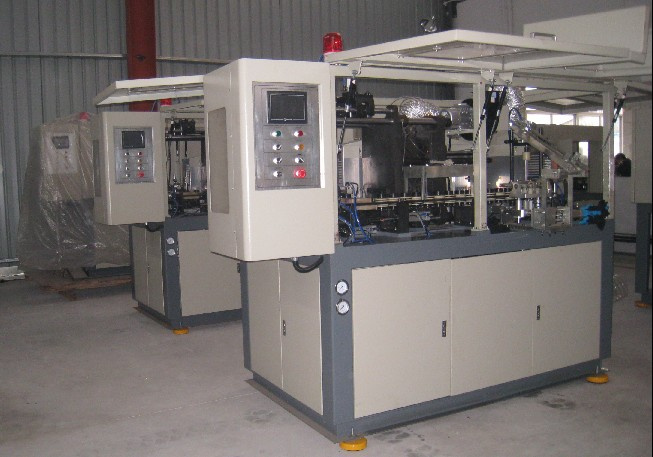

Product Description
Our factory bottle blow molding machine can produce PET containers including the bottles for kinds of wine, drink, soybean, vinegar, and pesticide shape and diameter. It has automobile system with high efficiency. The distant infrared ray heat pipes are used in the machine. It has high pressure protection with the feature of precisely removing mould. It is easy to maintain. It is the equipment for producing PET bottles. MACHINE PROPERTIES: 1. FEATURES TOUCH SCREEN COMPUTER OF TAIWAN'S WEILUN, OPERATE CONSISTENTLY AND SIMPTY. 2. FEATURES PNEUMATIC ELEMENTS OF GERMAN FESTO AND JAPAN SMC. 3. SPECIALLY DESIGNED FOR ENERGY-SAVING PURPOSE, MECHANICAL UNIT IS COMPACT AND SOUND. 4. FEATERES TROUBLW ALERT AND DIAGNOSTIC UNITES TO ALLOW EASY MAINTENANCE. 5. ENVIRONMENTALLY FRIENDLY DESIGN, NONTOXIC CONVEYOR BELT TO CARRY PREFORMS.
Technical Reference
Machine Modle
JS600
JS600J
JS600B
JS600C
JS600D
PCS/H
600-900
600-900
500-900
350-700
300-500
BOTTLE VOLUME
L
0.2-5
0.2-5
0.2-5
1-10
10-20
PREFORM INNER DIAMETER
MM
15-120
15-120
63
55
110
MAX.BOTTLE DIAMETER
MM
20-180
20-180
20-180
20-210
110
MAX.BOTTLE HEIGHT
MM
350
350
350
450
300
CAVITY
PC
1
1
1
1
1
MAIN MACHINE SIZE
M
2.5*1.5*2
2.5*1.5*2
2.5*1.5*2
2.5*1.5*2
3.6*1.7*2.5
WEIGHT
T
2.5
2.5
2.5
2.5
3.8
Taizhou Jiansheng Machinery Co., Ltd. is aspecialist manufacture of plastic machinery and molds and hasaccumulated over 20 years ' experiences in machine and mouldmanufacturing.
Our self-developed proud products, JS-seriers multi-purposelbowing machines and JS series molds, are dependable, durable andextensively applicable for various plastics including PET, PP, PE, PC, PA, PS etc. Some key technologies involved in these machines and moldsare first-ever in China.
We have been actively engaged in the improvement of usedtechnologies and invention of new technologeis related to plsticmolding, so as to make our products better geared to market andachieve unbeaten advantages over our competitors.
To meet the demandsofr hot-filling containers, highly transparent PP containers formedical infusion applications, asn high-quality high-yield PETcontainersk we particularly developed PP bottle blowing machines, PEThot-filling bottle blowing machines and its accessories, as well asJS600, JS2000 two-stage automatic blowing machines which are all verypopular amongst the users. High performance cost ratio and well-developed after salesserivices make our products fastsellers not only in China but in manycountries and regions in America, Africa, Europe, Middle East, SoutheastAsia etc as well.
