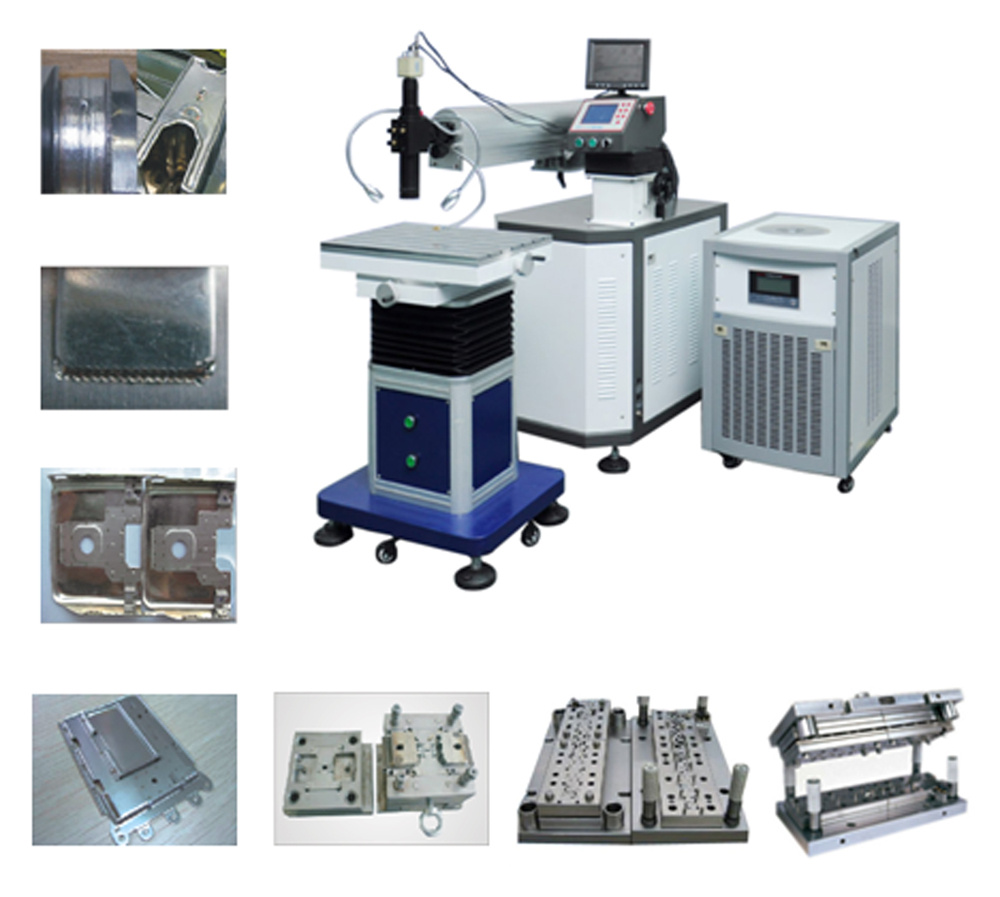

Krwy 200W Mould Laser Welding Machine
Price: |
US $ 500-20000unit |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1unit |
Pay Type: |
L/C,T/T,Western Union |
Prod Model: |
KRWY-200 W |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Wavelength: |
1064nm |
Max Laser Output Power: |
200W |
Max Laser Peak Power: |
6kw |
Condensing Cavity: |
Imported Ceramic Reflector |
Laser Working Medium: |
ND: YAG |
Aiming And Locating Method: |
CCD Monitor(Microscope)(Red Light) |
Cooling Method: |
External Water Cooled |
Product Description
Introduction:
KRWY series mould laser welding machine is a specially designed for mould industry, suitable for repairing medium & small size moulds and machinery parts. It is the application of laser local deposition welding technology in the field of tools and moulds.
Features:
1. It adopts imported ceramic condensing cavity which has long life time as 8 to 10 years and features of anti-corrosion and high temperature resistance. And the working life of Xenon lamp can reach 10 millions.
2. Advanced the state-of-the-art automatic shading system, limit the damage to eyes.
3. Unique design makes it suitable for repairing all kinds of large, medium and small size moulds.
4. High flexibility that the laser head and optics can rotate 360 degrees, worktable can be automatically up and down.
5. Small welding spot and welding seam, neat and nice effect. The work piece doesn't change color and can directly for grinding & polishing after welding.
Application Industries:
It is customized for the mould industry, and suitable for all kinds of large, medium and small mold repair.
Suitable Materials:
A wide range of welding materials including cold-work high alloy steel, hot forging high alloy steel, nickeliferous tool steel, high-grade steel, steel alloy, BeCu, high toughness aluminum alloy and etc.
Technical parameters:
Type | KRWY-200 W |
Wavelength | 1064nm |
Max laser output power | 200W |
Max laser peak power | 6KW |
Pulse width | 0.1ms~20ms |
Pulse frequency | 0.1Hz~150Hz |
Control current | 20A-300A |
Condensing cavity | Imported ceramic reflector |
Laser working medium | Nd: YAG |
Aiming and locating method | CCD monitor(microscope)(red light) |
Travel of worktable | 300mm×200mm×200mm |
Locating accuracy | 0.05mm |
Locating repetition | ±0.02mm |
Load-bearing of worktable | 150Kg |
Electric requirement | 220V/50Hz/30A |
Consumption power of cooling-water machine | 1P |
Cooling method | External water cooled |
Weight of principle machine | 50Kg |
Weight of cooling-water machine | 25Kg |
Dimension of principle machine | 930mm×490mm×1000mm |
Dimension of cooling-water machine | 700mm×500mm×800mm |
