North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling Style:
Air Cooled
Ice Capacity:
200kg/Day-1000kg/Day
Certification:
SGS
Condition:
New
Ice Shape:
Flake Ice

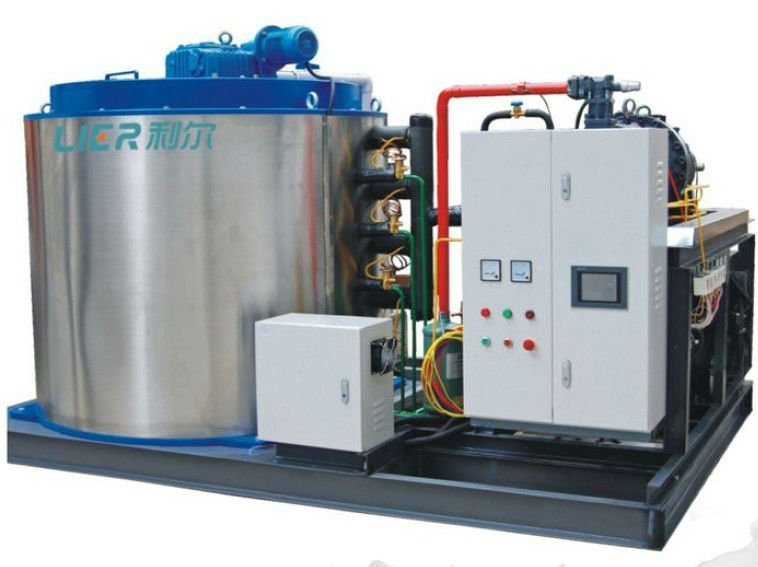

Product Description
Flake ice: Irregular ice flakes with size about 40× 40mm and thickness around 1.5-2.5mm.
Features of ice flakes:
The thin ice can be directly used for stirring and mixing refrigerated materials;
No acute edges and corners so it will not damage the surface of the cooled object;
Large contact area and fast cooling speed;
Easy to crush and mold.
Application fields of the ice flakes:
Fishing industry, food processing, concrete mixing plants, chemical plants, mine cooling, skiing ground, medicine, and so on
Model
Daily output
kg/24h
Ref.Capacity
kw
Power supply
Total power
kw
Refrige
rants
Unit Dimension
L*W*H(mm)
Net Weight kg
LR-02T
200
1.2
1P/220V/60HZ
1.1
R404A
760*730*600
105
LR-05T
500
3
3P/380V/50HZ
2.62
R404A
1310*890*780
195
LR-1T
1000
6
3P/380V/50HZ
4.31
R404A
1310*970*880
227
LR-1.5T
1500
9
3P/380V/50HZ
8
R404A
1310*970*980
364
LR-2T
2000
12
3P/380V/50HZ
10
R404A
1500*1095*1050
425
LR-2.5T
2500
15
3P/380V/50HZ
12
R404A
1500*1095*1200
468
LR-3T
3000
18
3P/380V/50HZ
15.11
R404A
1750*1190*1200
530
LR-4T
4000
24
3P/380V/50HZ
18.32
R404A
1700*1550*1250
646
LR-5T
5000
30
3P/380V/50HZ
23.12
R404A
1750*1550*1600
765
LR-6T
6000
36
3P/380V/50HZ
26.12
R404A
1750*1550*1600
825
LR-8T
8000
52
3P/380V/50HZ
31.5
R404A
2530*1830*1680
978
LR-10T
10000
65
3P/380V/50HZ
45.5
R404A
2530*1830*1680
1540
LR-15T
15000
97.5
3P/380V/50HZ
64
R22
3100*2090*1865
2120
LR-20T
20000
130
3P/380V/50HZ
75.8
R22
3695*2090*2050
2860
LR-25T
25000
162.5
3P/380V/50HZ
75
R22
3695*2090*2265
2940
LR-30T
30000
210
3P/380V/50HZ
86
R22
3880*21200*2400
3240
