Usage:
Mould
Cooling Model:
Water Cooling
Product Description

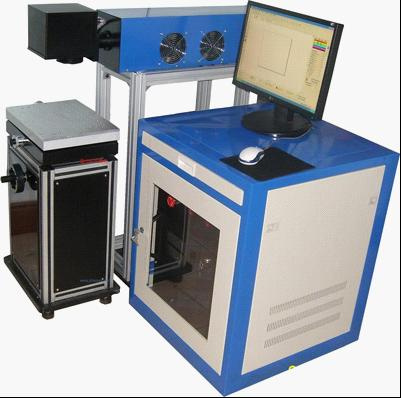

Laser marking machine; CO2 laser marking machine;
Laser metal marking; Laser engraving and cutting machine
Machine Characters
(1) High precision and fast speed. Marking depth is controllable optionally.
(2) Wide application. It can mark most non-metals.
(3) No consumption and pollution.
(4) The marking lines are clear, it can withstands heavy wearing.
(5) Chinese and English software are optional.
Applicable Material:
Most non-metals, for example, leather, wood, textiles, plastics, acrylic, glass, crystal, stone, MDF, dual-color board, organic glass, paper, jade, agate, etc.
Applicable Industries
Tobacco, food and beverages, wines, medical packing, leather, plastic, rubber, wood products, advertisement, arts and crafts, glass, printing, ornament, jewelry, etc.
This Model
Optional Models
Type
HTJ-CO2-30W
HTJ-CO2-10W
HTJ-CO2-50W
Laser Power
30W
10W
50W
Cooling Model
Air cooling
Air cooling
Air cooling
Laser Wavelength
10640nm
10640nm
10640nm
Marking Area
50mm*50mm --- 300mm*300mm ( Optional )
Engraving Depth
≤ 3mm
≤ 2mm
≤ 5mm
The depth is adjustable according to different materials.
Linear Speed
≤ 7000mm/s
≤ 7000mm/s
≤ 7000mm/s
Min. Line Width
0.03mm
0.03mm
0.03mm
Min. Letter
0.2mm
0.2mm
0.2mm
Repeatable Accuracy
± 0.01mm
± 0.01mm
± 0.01mm
Gross Power
1.0KW
0.5KW
1.2KW
Electricity Source
220V/50Hz/10A
220V/50Hz/10A
220V/50Hz/10A
