Dimension(L*W*H): 3*1.8*1.8m:
Power(W): 11*5kw
Oltage: 380V Or According Requirement:
Inlet Diameter: 6.5mm/8mm
Finished Diameter: 2.2mm:
Weight: 3.0t
Usage:
Standard Parts
Type:

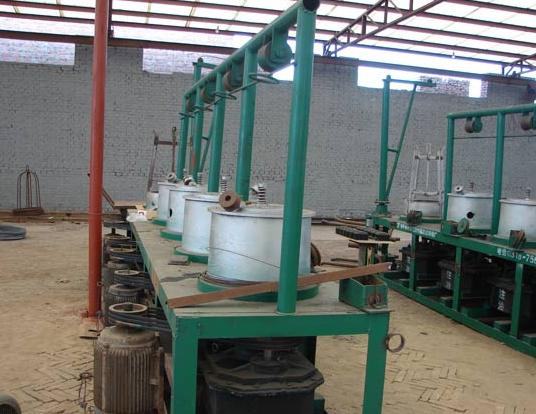

LW Pulley Type Metal Drawing Machine
Product Description
Specifications 1.high quality and competitive price 2.short delivery time 3.one year guarantee The set of the machines is a ideal equipment drawing wire stock of high,medium and carbon steel,as well as copper,alumium,and alloy.The machines are applied to drawing wire in the factories such as wire-steel factory,metal mesh factory and nail making factory etc. Structure: The equipment consists of main reduction box.die casing,wheel frame ,sash brace and electeical control system.The spinning drawing blocks are driven by JZT series motor,with gear coupling runs changeful gears to reduce speed.The drawing blocks are verticaly fixed in sealed box body.The gear pair are lubricated with oil. In order to lower residual heat on the surface of the block,the cooling means is installed in interwall of the block.The wortle is soaked in cooling watr to reduce its working temperature. The machine runs with carvl or linkage.The safety halt gear is installed by the position of operating block. Main Specification
Type
LW-1/800
LW-1-6/560
LW-1-7/450
LW-1-6/350
Material intensity
δb≥110kg/mm2
128kg/mm2
δb≥140kg/mm2
Max diam of material
10-14
6.5mm
3.4mm
2.5mm
Min diam of material
6.0
2mm
1mm
0.75mm
Diam of block
1-800
1-6/560
1-7/450
1-6/350
Max average condensation
25%
30%
20%
21%
Total condensation
78-88.5%
77.9%
78%
Max.speed of block
60m/min
245m/min
346.9m/min
200m/min
Total power
80kw
18.5-30kw
7.5-11kw
7.5-11kw
Weight
4500kg
2000kg
1500kg
1000kg
Overal size
9730×3340×2020mm
1700×1150×1750mm
1520×810×1700mm
1400×800×1500mm
