Product Description

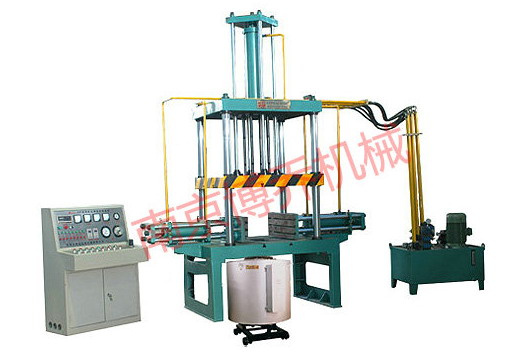

Structural performance of products casted by low pressure die-casting machine is better than that of products casted by cold chamber high pressure die-casting machine Temperature of molten aluminum is automatically controlled by high accuracy intelligent temperature controller. Pressure self-compensation function and accurate pressure control in the die-casting process. Automatic pressure maintaining, pressure relief, and auto-cooling function available. Compared to products casted by other ordinary low pressure die-casting machine, high pressure & pressure maintaining function of this model makes finer metallographic structure & stronger mechanical property of products. Big die-filling area, convenient die-filling, safe operation, fast mould position, installation time significantly shortened. Small floor area, easy technical operation. Simple mechanism, reliable operation, highly cost effective. The machine could manufacture different kinds of aluminum alloy products: electric power fittings, gearbox shell, fan impeller, hydraulic couplers, automobile hub, cylinders, motorcycle cylinder head, damper, fluid pump, brake pump, valve, etc
No.
Parameter name
Unit
Value
No.
Parameter name
Unit
Value
1
Capacity of holding furnace
kg
200
11
Ejector die plate stroke
mm
450
2
Power of holding furnace
kw
30
12
Hydraulic motor power
kw
5.5
3
Size of control cabinet
mm
1270×900×690
13
Hydraulic working power
mpa
6
4
Outline size of machine
mm
4007×3200×1250
14
Hydraulic oil type
#
46
5
Size of holding furnace
mm
Φ1150×1380
15
Diameter of opening cylinder
Φ
150
6
Min opening height
mm
450
16
Diameter of core cylinder
Φ
125
7
Max opening height
mm
900
17
Core cylinder center height
mm
150
8
Guide the column spacing
mm
975*775
18
Core-pulling stroke
mm
300
9
The total weight equipment
t
5.5
19
Min core-pulling gap
mm
400
10
Working time of core cylinder
s
3.7~4.7
20
Max core-pulling gap
mm
1000
