North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max.Size:
600X400mm
Automatic Grade:
Automatic
Type:
Automatic Carton Making Machine
Product Description

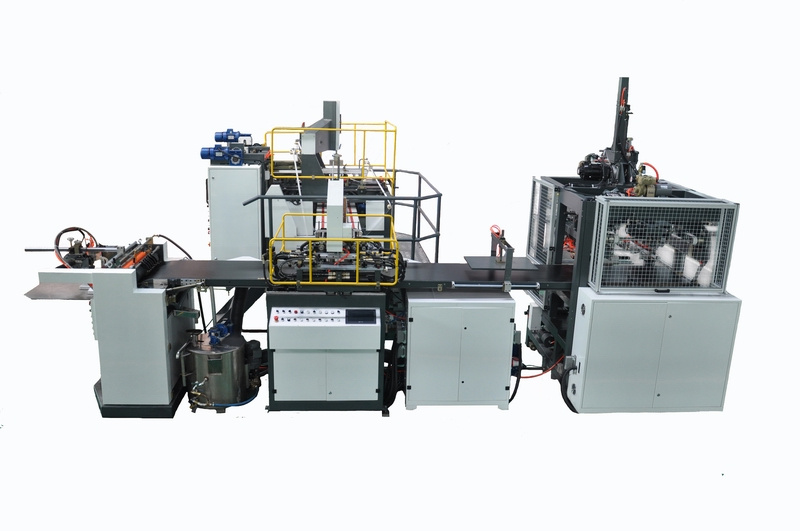

The first fully automatic rigid box making machine in China!
Lishunyuan(LSY) has installed our products in North American, Europe, Asic Pacific, Middle East, CIS over 40 countries and regions.

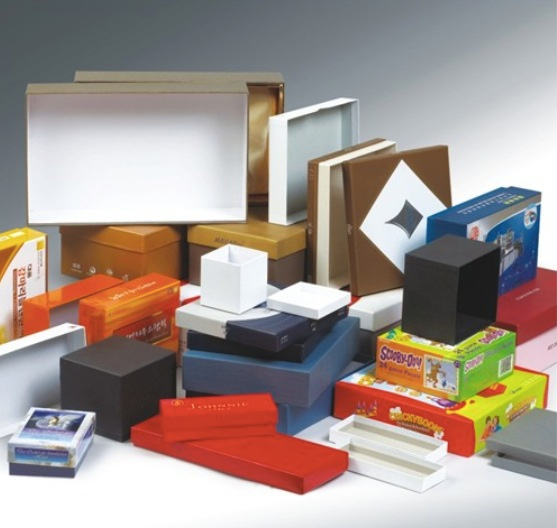

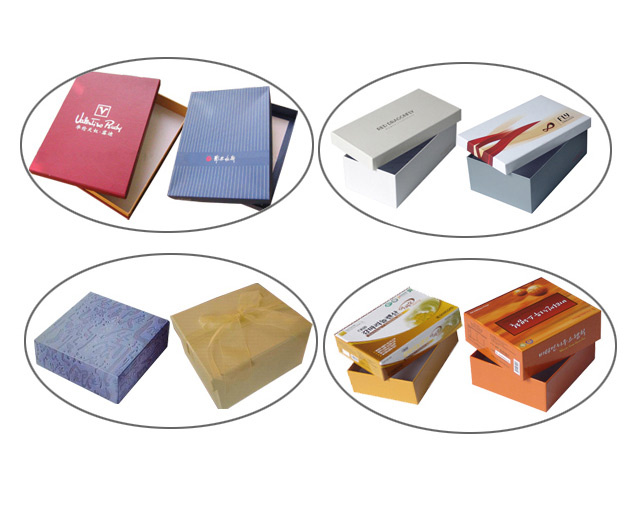

Product Introduction: To meet the demand of the market, LISHUNYUAN bases on decades of packaging machine design and manufacture experience, after more than 2 years independent R&D, devoloped intelligent automatic rigid box making machine in 2012, greatly solve common faults of the rigid box macking machines on current market, like bubble, scratch, loose side, low turn-indepth, uneven gluing, inaccuracy positioning, time-consuming mold chang, etc. Sutable for making rigid boxes, like phone box, cosmetic box, jewelry box, wine box, cake box, tea box, etc.
Characteristics: Intelligent adjusting, quick mole changing, suitable for producting various model of rigid boxes one day. Adopts servo optical fiber postioning system, high postioning accuracy: ± 0.2mm With memory function, can recall previously produced box paramets to start production within 1 minute after assemble the molds. Max turn-in depth is high to 80mm. Can make some irregular shape boxex, like high-low boxes, trapezoidal boxes. etc. Can make ear-to-ear and ear-cross-ear floding boxes, like iPhone box. When wrapping, the holding device hold the box up, ensure not to scratch the wrapping paper. Can choose below optional parts according to requirement: . Vision ND robot arm positioning system, positioning accuracy high to± 0.1mm . Ceramic gluing tester . Automatic bubblepressing module . Automatic grooving &glue spraying module
Model
LY-2012
Max paper size
880*600 mm
Min papersize
180*95mm
Paper thickness
80-200g/m 2
Cardbord thickness
1-3mm
Max finished box size
600*400*140 mm
Min finished box size
100*60*12 mm
Turn-in paper size
7-80mm
Max Ear-cross-ear size
120mm
Postioning accuracy
± 0.2mm
Production speed
12-30 pcs/min
Air presure
6-8Pa
Glue tank capability
50kg
Max power
22kw/380v3phases
Constant power
16kw
Machine weight
6500kg
Machine dimension
L6800*W4200*3400
