North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:
Extrusion Blow Molding Machine
Making Method Of Parison:
Extrusion-Blow Molding
Automation:
Automatic
Computerized:
Computerized
Certification:
CE
Raw Material:
PE,PP...
Product Description

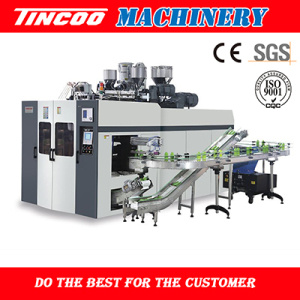

5-layer multi-die head extrusion machine DHD-5L-MIII/IV/V, DHD-12L-MIII/IV/V, It is our newest design: 5-layer, double head, four head, fully-auto extrusion blow molding machine.
Material
PE,PP
Max.container capacity
L
16
Number of die
set
1,2,3,4,6
Machine Dimension
m
4.5×2.7×3.1
Total weight
ton
13
Accumulator head
DHD-16LII
Number of die heating
zone
4
Power of die heating
KW
6-7
Max die-pin diameter
mm
140
Center distance of twin-die
mm
260
Center distance of tri-die
mm
180
Center distance of four-die
mm
130
Center distance of six-die
mm
90
Clamping Unit
DHD-16LII
Clamping force
KN
155
platen opening stroke
mm
219-620
platen size
mm
520×480
Max mould size
mm
600×480
Mould thickness
mm
220-380
Extruder Unit
DHD-16LII
Screw diameter
mm
90
Screw L/D ratio
L/D
25:1
Extruding Volume
Kg/hr
130-160
Number of heating zone
zone
4
Extruder heating power
KW
8.2-9.3
Extruder driving power
KW
37-45
Power
DHD-16LII
Oil pump drive power
KW
15
Fan power for screw
KW
0.6
Total power
KW
67
Air pressure
Mpa
0.6
Air consumption
m³/min
1.0
Average energy consumption
KW
38
·
