| Prod Model: |
stamping die |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Die Type: |
Progressive, Single Op., Transfer Die and Casting. |
| Stamping Dies: |
110 ~1000 Tons |
| Maximum Size Of Tool: |
4.0m*1.5m |
| Material Thickness: |
0.2mm ~ 6.0mm |
| Die Standard: |
Danly / Kaller / Misumi Standard |
| Process Combination: |
Progressive Die |
| Processing Method: |
Punching and Shearing Mould |
| Application: |
Home Use |
| Material: |
New Materials |
| Technics: |
Punching Die |
Product Description
GLS is a metal stamping tools manufacturer, dies (type: Plate /cast iron) for auto parts, home (household) appliances and consumer electronics...Phone: +86 13824343123 (Abby Ma)
Service: Stamping Tools /Stamping Die Design & Manufacture
Die Mode: Cast Iron Dies /Steel Plate Build-Up Stamping Die
Die Type: Progressive Die, Transfer Die, Single Operation Stage Die
Capacity: Build Dies up to 4000*1500mm
Tryout Capacity: 110T, 250T, 300T, 400T, 800T, 1000T
Stamping Parts: 0.2 -- 6mm
Application: Automotive (steel automotive structural parts, components, subassemblies, chassis system, seating and door system, audio systems, cooling system);

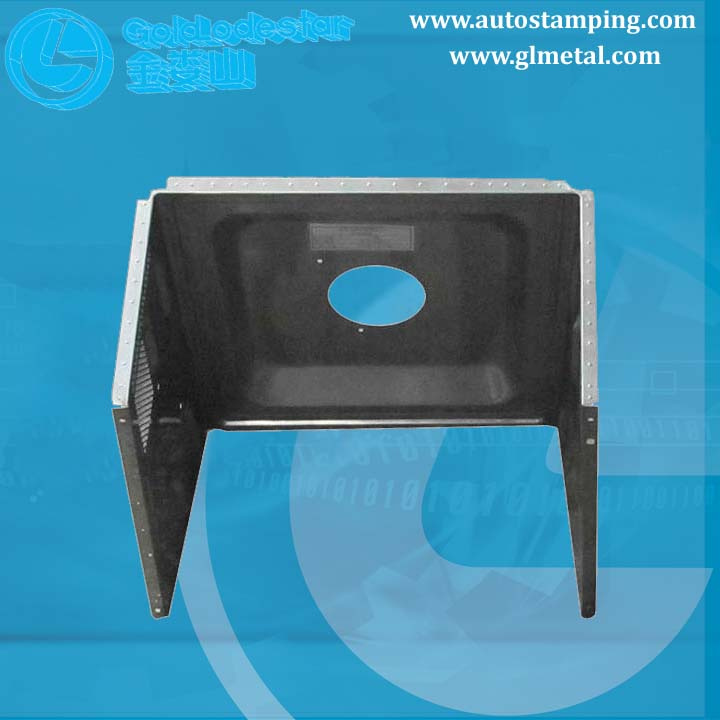

Household Appliances (TV sets, cameras, air conditioners, micro- ovens, DVD players);
Telecommunication (Antenna base, brackets, enclosures );
Fire-fighting equipment (holding plates);
In-office equipments like computers, copiers and printers, etc.
|
MACHINES LIST |
DESIGN COMPUTERS
(30) HIGH-END CAD WORKSTATIONS
CNC & EDM EQUIPMENT
(1) EDM WIRE CUTTING MACHINE 900*600 MM
(1) EDM WIRE CUTTING MACHINE 700*400 MM
(3) EDM WIRE CUTTING MACHINE 600*400 MM
(1) EDM WIRE CUTTING MACHINE 500*300 MM
(1) EDM WIRE CUTTING MACHINE 300*200 MM
(3) EDM WIRE CUTTING MACHINE 800*600 MM
(2) EDM WIRE CUTTING MACHINE 630*500 MM
(4) EDM WIRE CUTTING MACHINE 320*250 MM
(1) CNC MACHINE 3000*1600*750 MM
(1) CNC MACHINE 2100*1000*700 MM
(1) CNC MACHINE 2000*1300*1000 MM
(1) CNC MACHINE 2000*1300*700 MM
(1) CNC MACHINE 1300*700*700 MM
(1) CNC MACHINE 1200*760*600 MM
(2) CNC MACHINE 1000*660*500 MM
(4) CNC MACHINE 650*500*450 MM |
ENGINEERING SOFTWARE
2D /3D /CAE
CAD /UG / AUTOFORM /DYNAFORM, etc.
MACHINING EQUIPMENT
(1) SURFACE GRINDING MACHINE 1600*600 MM
(2) SURFACE GRINDING MACHINE 1000*600 MM
(1) SURFACE GRINDING MACHINE 600*300 MM
(6) MANUAL GRINDING MACHINE 350*150 MM
(6) MILLING MACHINE 3#
(3) VERTICAL DRILLING MACHINE *1-32
(5) RADIAL DRILLING MACHINE *1-32
INSPECTION EQUIPMENT
(1) 3D CMM 1000*800*600 MM
(1) 3D CMM 800*600*500 MM
(1) OHP 150*50 MM
(1) HEIGHT GAUGE 0-600
(7) GLOSSY PLUG GAUGE 2.00-6.00
(2) GAUGE BLOCK 1.0-100
|
|
TRYOUT EQUIPMENTS |
|
Model |
Force |
Stroke /mm |
Min Shut
Height /mm |
Max Shut Height /mm |
Bolster Size /mm |
Mechanical Press
With Coil Feed Line |
800T |
500 |
500 |
1000 |
4000*1800 |
Mechanical Press
With Coil Feed Line |
300T |
280 |
430 |
700 |
2300*900 |
|
Mechanical Press |
250T |
250 |
390 |
500 |
1200*800 |
|
Mechanical Press |
110T |
200 |
270 |
480 |
600*500 |
|
Hydraulic Press |
400T |
250 |
400 |
550 |
1600*900 |
|
Seeking high quality and trustworthy supplier for stamping die and tools?
Gold Lodestar Tool &Die Co., Ltd. is the best choice of yours. Established in 1999, we are a private and export-centered enterprise with more than 150 employees, possessing a team which with decades of experience, specializing in the R&D of stamping die and tools, a series of high accurate and efficient equipment as CNC and EDM Wire/cutting, delivery control on time and after-sales service in time, also the running of the certified QA system ISO 9001: 2000.
We specialize in products of stamping dies and tools for Auto part, computer, home and office appliances or electronic equipment industries, such as single die, transfer die and progressive die. Mainly for press of 40ton ~ 800ton. Capability can be 30~40 sets alike 400ton per month, metal sheet thickness range 0.2mm to 6mm, the maximum size could be 1500mm*4000mm, and the annual output is around 30 million RMB.
Most of the stamping die and tools are exported to Asia, US and UK, Canada, Europe. North America, etc. And the end-user is as follows. We devote ourselves to design and manufacture every detail from better to the best; Also we' Ve gained the honor of our customers' Credit standing, hope to be partner of your firm.
Welcome to our factory or inquiry today.
