Main feature: 1. Uses standardized assemblies from the VH milling machine universal use as milling machines and drill press 2. Easily shiftable gear drive ensures power transmission without losses 3. With V-belt spindle drive and gear spindle drive 4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill

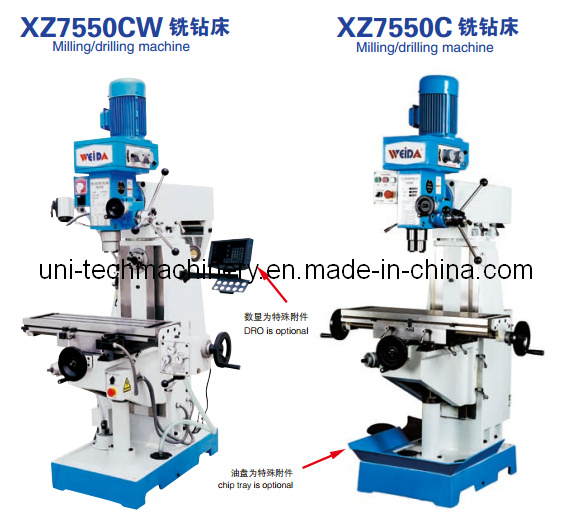

Description: ZX7550CW KNEE-TYPE MILLING AND DRILLING MACHINE is a multifunction drilling and milling machine, bed rigidity, movement stability, high accuracy.
Guide by quenching with good wear ability. Vertical milling, horizontal milling adopts gear drive, transmission of large torque. Longitudinal can be moved with machinery power feeder, reduce labor intensity and improve the machining accuracy and surface finish. Guide by quenching with good wear ability. Milling head mounted on the front sliding arm, it can move back and forth, not only in the vertical plane of rotation about 45 degrees, but also turn 360 degrees in the bed with a good universal nature of the processing.
If installing appropriate attachments, this machine has many processing function, such as milling, drilling, boring, plane abrasion, etc. Operation expediently, performance reliably, applying to metal finishing and maintain of kinds of companys, especially tools, moulds, fastenerprocessing.
Specification:
drill mill machine
ZX7550
ZX7550C
ZX7550W
ZX7550CW
Max.drilling dia (mm)
50
50
50
50
Max.horizontal milling dia (mm)
100
100
100
100
Max.vertical milling dia (mm)
25
25
25
25
Max.boring dia (mm)
120
120
120
120
Max.tapping dia
M16
M16
M16(Vertical)
M16
Distance.spindle to table surface (mm)
140-490
90-490
80-460
90-490
Spindle speeds range (r.p.m)
230-1825
115-1750
230-1825(Vertical) 80-1300(horizontal)
(Vertical)115-1750 (Horizontal)60-1350
Spindle travel
120
120
120
120
Table size (mm)
800×240
800×240
800x240
800×240
Table travel (mm)
400×230
400×230
400x230
400×230
Overall dimensions (mm)
1100×1100×2080
1100×1100×2080
1280×1100×2080
1280×1100×2080
Motor (Kw)
0.85/1.5
0.85/1.5
0.85/1.5(Vertical) 1.1(horizontal)
( Vertical)0.85/ 1.5 (horizontal)2.2
N.W/G.W (Kg)
610/770
610/770
700/880
850/1000
