Prod Model: |
TZJD-6060MBN |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Usage: |
Mould |
Engraving Machine Type: |
CNC Engraving Machine |
Power: |
High Power |
Drive Type: |
AC Servo Drive |
Control: |
CNC |
Certification: |
SGS, CE, ISO 9001 |
Current: |
AC |
Condition: |
New |
Product Description

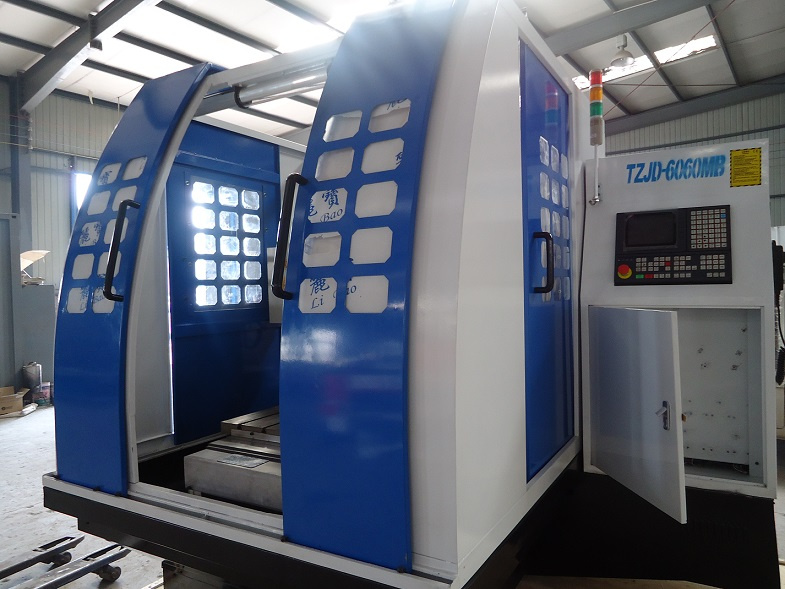

Milling machine Metal Engraving and Milling machine TZJD-6060MBN
1- Specification Parameter
Description | Parameter |
TZJD-6060MBN |
Working Area (X*Y*Zmm) Plat form size(X*Y) | 600mm*600mm*300mm 640mm*640mm |
Max Engraving Speed Max Running speed | 6000mm/min 12000mm/min |
Frame | Cast Steel |
Spindle power(KW) | 5.5kw permenent torque spindle |
Max. Power Consumption(Without spindle) | 3KW |
Spindle Speed | 24000rpm |
Resolution | 0.005mm |
Repeatability | 0.01mm |
Voltage | AC220V,50Hz/60Hz(option:AC110V,50Hz/60HZ) |
Drive motor | Japan Panasonic Servo motor |
Working Dictate | G Code*.u00*.mmg*.plt |
Operating system | Taiwan LNC control system |
Software environment | Windows98/2000/xp |
Interface | USB |
Flash memory | 128M(U Disk) |
Software Compatability | Type3,,Ucancam,Artcam Software) |
Diamerer of cutter Table Max load Dimension(L*W*H) Weight | 3.175, 6mm, 12.7mm, 2,1, etc. 300kg 1.8m*1.35m*2.1m 2800kg |
Running Environemt | Temperature: 0ºC~45ºC |
Relative humidity: 30%~75% |
Machine necessary | Cast heavy-thickness steel structure, High precision HIWIN Square linear bearings, Dust cover system, control system integration shell, spindle cover, Japan Panasonic Servo motor, Auto-oiling system, Tool-sensor, water tank system, water-cooled system. |
2- Product features
1. Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, adopts Taiwan HIWIN line guide rail.
2. The gantry was confirmed and the working table can be move manipulable, improve the working-efficiency.
3. Tool sensor system, save extra time to adjust the machine.
4. Use high speed Japan Panasonic Servo motor driver, largely improve the working-efficiency.
5. Memory function ensures the processing point when the blade is broken or having to postpone the process.
6. With better compatibility, can math with many programs such as Typle3, artcam, castmate, proE, Coreldraw/CAD,CAM.
It achieves 2D and 3D works easily.
7. This type machine can support these functions: drilling/milling, engraving/carving, cutting.
8. It widely used for small materials working, without noise & high-power. Many gear speed regulation and control function & Curve and linear speed independent control.
9. Water tank system on the body & water-cooled system automatically.
10. Taiwan LNC control system. Use this control system, it can prolong the machine's working-life.
3- Applicable materials
Iron, stainless steel, copper, aluminum, plastic, marble, aluminum plate, timber, KT board, ABS board,
PVC board, acrylic, jade, sign board, mould, bronzing, badge, pattern mould, art carve, coin dyes, etc.
