Size:
Dme/DIN etc Standard and Customized Avaliable
Price:
Manufactury Price
MOQ:
1PCS/Type
Delivery Time:
Generally 7-8 Workdays or According to Quantity
Shaping Mode:
Injection Mould
Process Combination Type:
Progressive Die
Application:
Hardware
Installation:
Fixed
Design Software:
Pdf,CAD,PRO-E,Ug,Other Drawing Formats
Certification:
ISO9001:2008
Product Description

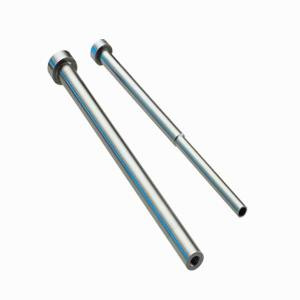

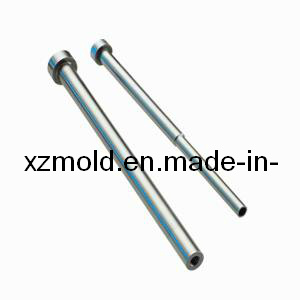

Product's name: FDAC Straight ejector sleeve pin Raw Matarial: SKD61, 1.2344, H13, FDAC Heatment: Nitrided Hardness: Inner HRC41-44 Surface HV900-1100 Packing: 1)Double layers plastic bag package 2)Sponge 3)Thick cartons box 4) in wooden case Grinding Precision: 0.001mm EDM Precision: 0.002mm Surface Roughness: Ra 0.025 Plastic Mold Part: For Plastic Mold Machine: CNC, EDM, Wire-EDM EDM Clearance Angle: R 0.03mm Export Markets: Global

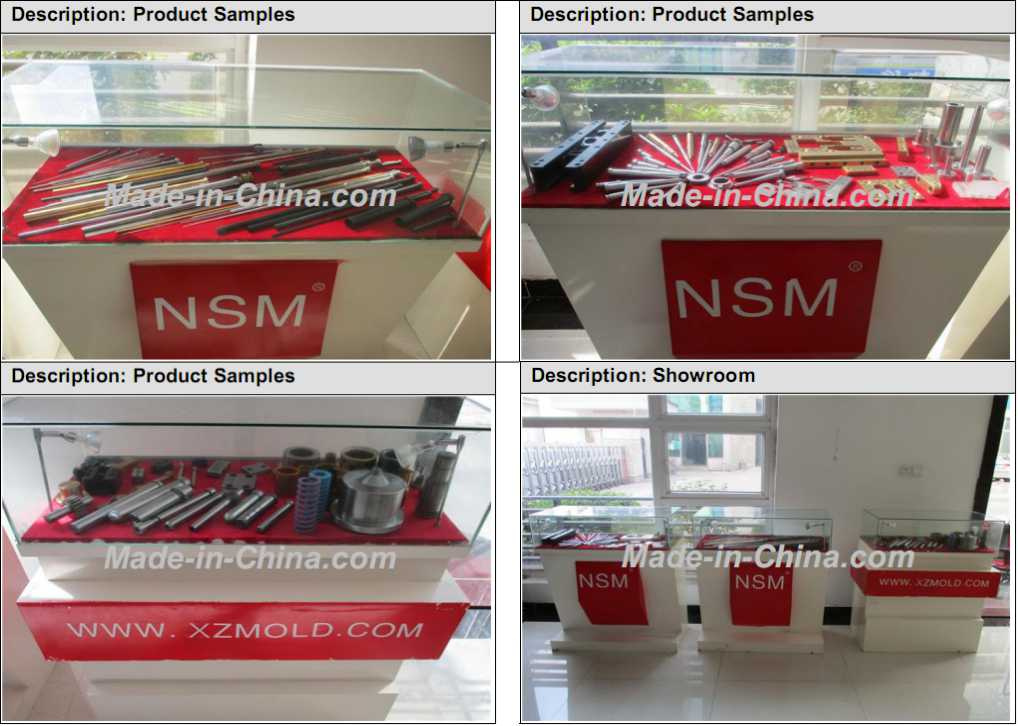

Product's Show 1. Factory information:
Company:Dong guan city Xiang zhen mold parts Co.,Ltd
Web: http://www.xzmold.com/english
Location:Dong guan,China (close to Hong Kong,Shen Zhen,Guang Zhou)
Software:PDF,Auto-CAD,Pro-E,UG etc are available
Employee:100-200
Manufacture in:High precision mold parts/Hot-runner and related parts/CNC/EDM parts/Grinding parts/Customized mold parts

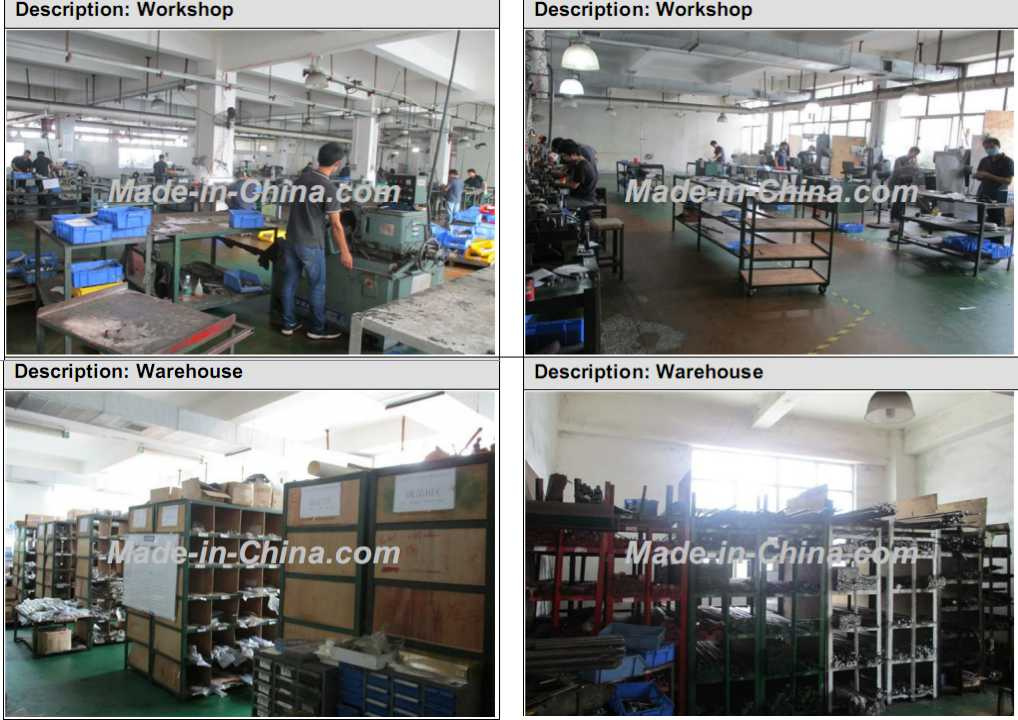

2. Equipment and Inspection measurement:
Description
Machine type name
Origin from and brand
Quantity
Precision level(mm)
Processing equipment
CNC Processing
Taiwan
3
±0.01
CNC Lathe
Japan
2
±0.003
WEDM (Low speed wire cutting)
Japan
2
±0.005 ±0.002
WEDM (high-speed wire cutting)
China
2
±0.005 ±0.01
Flood grinder
China
1
±0.002
EDM
Taiwan
2
±0.005
ID Grinder
Taiwan
3
±0.001
Depth drill
Taiwan
3
±0.02
Automatic grinder
Taiwan
2
±0.001
Centerless Grinder
Taiwan
12
±0.001
Surface Grinder
Japan
2
±0.001
Surface Grinder
Taiwan
5
±0.001
Vertical hydraulic Heading Machine
China
2
Semi-automatic Heading Machine
Taiwan
3
Manual Heading Machine
Taiwan
2
Automatic forging machine
Taiwan
1
Bench grinders
Taiwan
2
Punch Grinder
Taiwan
6
±0.002
Lathe
China
4
±0.01
32 type Lathe
Taiwan
4
25 type Lathe
Taiwan
3
±0.01
15 type Lathe
Taiwan
10
±0.01
Milling Machine
Taiwan
6
±0.01
Liquid nitriding furnace
China
1
Tempering furnace
China
2
Oxidation furnace
China
1
Inspection equipment
Rockwell hardness
Shanghai
1
±0.5°
Height gage
Japan
2
0.001mm
Microscope
Shanghai
2
0.0001mm
Three-dimensional
Germany(Zeiss)
1
±0.002
2.5 dimension
Taiwan
1
±0.001
Digital Projector
Taiwan
1
±0.002
Vickers hardness tester
Taiwan
1
Concentricity device
Taiwan
2
±0.001
Digital Micrometer calipers
Taiwan
Multiple
Conventional
slide calliper rule
Taiwan
Multiple
Conventional
Height Gauge
Taiwan
1
Conventional
Roughometer
Japan
1
Conventional
3. Precision parts information:
Accuracy for EDM
Clearance angle
R0.03mm
Surface Roughness
Ra0.05mm
Accuracy for Grinding
Clearance angle
R0.02mm
Shape tolerence
±0.001mm
Accuracy for surface
Ra0.05mm
Minimum thickness
0.1mm
Minimum groove
Wide 0.01mm;Depth 0.25mm
Material
Japan:SKD61/SKD11/SKH51/SUJ2
Germany:1.2343/1.2344 or as Customer's request.
Size
Standard as DME/Hasco/Punch etc or Customized
MOQ
1Pcs/Type
Price
EXW/FOB/CNF/CIF
Payment
T/T or %advance-%against shippment
4. Why choose us:
*-Quality: Qualified Raw Material
Reliable Machines
Mature process
Skilful employees
Strict Quality Control
*-Price: Competitive price /Reasonable margin
*-Service: Any inquiries replied within 24 hours Quick Delivery
Quick Response (7/7)
Warranty: Depend on product type.
Stardand parts: 500K---2M cycles
5. How to order:
(1) Send us drawing or standard code & size
(2) We quote you within 1 day (except Saturday and Sunday)
(3) Get agreement with price and sign PO or Contract
(4) Make payment in advance
(5)If sample required,we will make sample first
6. Contact Info:
Sales Manager:Nancy
Tel: +86 769-83516188 ext 8831
Fax: +86 769-83510866/83510966
Dongguan City Xiangzhen Mold Parts Co., Ltd. is a professional manufacturer of standard components and plastic molds.
The ranges of our products include standard (HASCO, DME and JIS) and customized high-precision ejector pins, ejector sleeves, shoulder ejector pins, blade ejector pins, core pins, guide posts, bushings, punching parts, fixtures and other parts.
We not only produce these standard components, but also help solve problems in the production of plastic molds and die casting parts.
Our factory is equipped with Taiwanese CNC working centers, NC gun drilling machines, centerless grinders, cylindrical grinding machines, internal grinding and honing machines, high-speed precision desk-top lathes and surface grinding machines.
We follow the spirit of "teamwork" and establish close and cooperative partnership with our customers. The company has cooperated with many clients both from domestic and overseas, and has obtained consistently high praise from our customers since it was set up. We sincerely welcome you to visit our company or contact us for cooperation!
We have significantly essential support from local customers that are leading mould manufacturers and reputable foreign agents in mould industry.
