Type:
Extrusion Blow Molding Machine
Raw Material:
PE
Making Method Of Parison:
Extrusion-Blow Molding
Automation:
Automatic
Computerized:
Computerized
Certification:
ISO9001:2008
Product Description

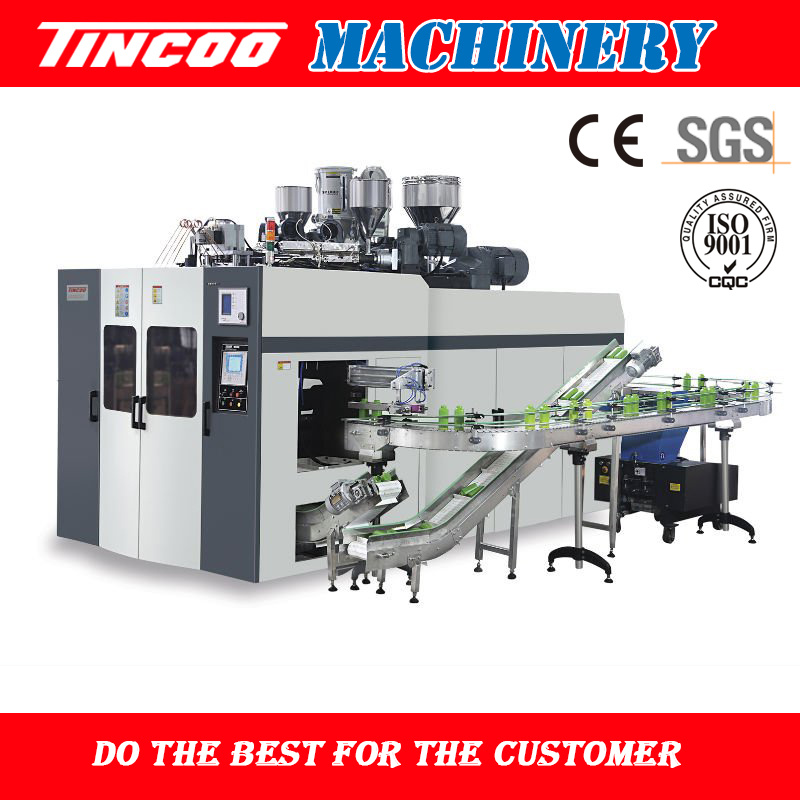

Details: 5-layer multi-die head extrusion machine
5-layer multi-die head extrusion machine DHD-5L-MIII/IV/V/VI,DHD-12L-MIII/IV/V/VI
It is our newest design: 5-layer, double head, four head, fully -auto extrusion blow molding machine.
Advantages of automatic extrusion blow molding machine:
This machine fused multilayer co-extrusion, PLC, electro-hydraulic proportional and frequency conversion and others advanced technology, with high robotization, fast and stably operation, and high productivity. The plasticization of the die reaches advanced international standard. The machine is suitable for producing the high-performance multilayer composite plastic hollow products which with aesthetic appearance, high strength and good barriers, anticorrosion, and anti-leakage.
At present, we are one of the leaders in the field of co-extrusion techniques.
Products widely used in foods, medicine, chemical industry and other fields. Could prolong the shelf period, and bring good economic benefit.
Advanced processing equipment:
Introducing advanced technology form Germany,Italy,Japan etc.
Involving advanced design and production of super large-scale blow-molding machine and engineering management capability.
Holding over 40 items Patent Technologies.
After sales service:
With good brand reputation and attitude of customer-centric, we invite special technologists responsible for after sales.
Service hotline is 24-hour on call.
Fast response: domestic call is handled within 12 hours.
International call is handled within 20 hours.
Specification
DHD-5LII-MIII/IV/V/VI
DHD-12LII-MIII/IV/V/VI
Material
PE,PP,EVOH,PA,EVA
PE,PP,EVOH,PA,EVA
Max.container capacity
L
5
12
Number of die
set
1,2,3,4
1,2,3,4
Machine Dimension
m
4.15×1.85×2.65
4.8×2.95×3
Total weight
ton
8
11
Accumulator head
DHD-5LII-MIII/IV/V/VI
DHD-12LII-MIII/IV/V/VI
Number of die heating
zone
11
11
Power of die heating
KW
11
15
Max die-pin diameter
mm
80
140
Center distance of twin-die
mm
160
240
Center distance of tri-die
mm
150
180
Center distance of four-die
mm
140
160
Clamping Unit
DHD-5LII-MIII/IV/V/VI
DHD-12LII-MIII/IV/V/VI
Clamping force
KN
70
110
platen opening stroke
mm
209-510
209-620
platen size
mm
350×380
460×500
Max mould size
mm
400×380
560×500
Mould thickness
mm
210-300
220-380
Extruder Unit
DHD-5LII-MIII/IV/V/VI
DHD-12LII-MIII/IV/V/VI
Screw diameter
mm
60+50+30×3
80+70+30×3
Screw L/D ratio
L/D
28:1/25:1
28:1/25:1
Extruding Volume
Kg/hr
65+45+7×3
130+95+7×3
Number of heating zone
zone
3
4
Extruder heating power
KW
9+7.5+3×3
20+13+3×3
Extruder driving power
KW
15+11+5.5×3
37+30+5.5×3
Power
DHD-5LII-MIII/IV/V/VI
DHD-12LII-MIII/IV/V/VI
Oil pump drive power
KW
11
11
Fan power for screw
KW
0.25
0.25
Total power
KW
90
155
Air pressure
Mpa
0.6
0.6
Air consumption
m3/min
0.6
0.8
Average energy consumption
KW
40
65
Attention:5L-12L 5 layers blow moulding machine inquires 3-4 dieheads,so the platen and frame should be bigger.
