Brand Name:
Mintech
Model Number:
Sr-200
Export Markets:
Global
Customized:
Yes
Operation System:
Weihong or Siemens
Compatible Softwared:
Type3
Spindle Power:
9kw
Machine Size:
3970*2300*2050mm
Standard Configuration:
Yes
Xyz Working Area:
1500*3000*150mm
Controlling Mode:
CNC
Feed Mode:
Mechanical
Spindle Number:
Single-Spindle
Spindle Layout:
Vertical
Certification:
SGS
Product Description

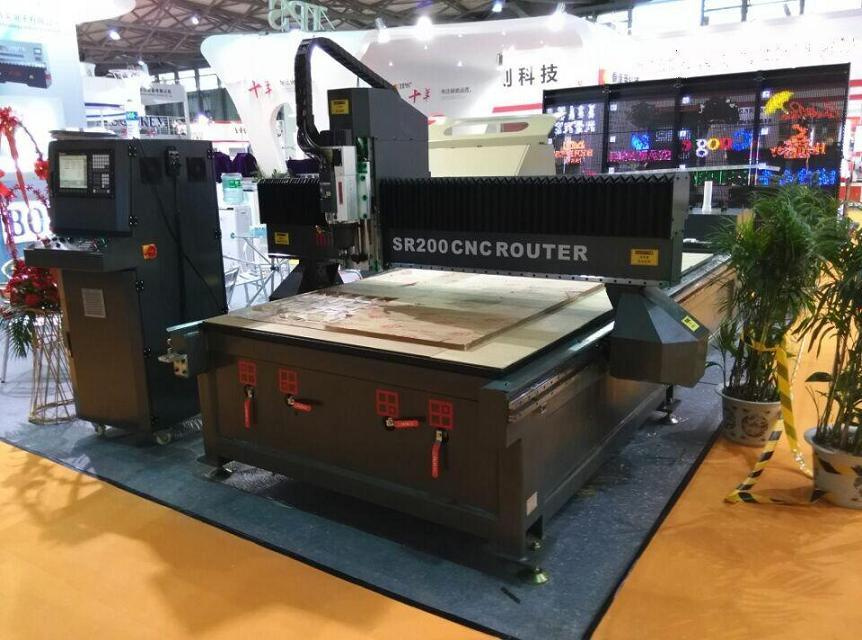

Mintech SR series CNC router machine is the producing and processingequipmentspeciallydesigned foradvertising signs, exhibition display, LED light guide plate, LED sign letter , acrylic products, insulation materials, aluminum, copper, such as sheet metal industry, by virtue of the entire steel frame structure, high precision impored skew rack and import guide rail coordinates the transmission table is fixed, highstandard design, won the award in the manufacturing industry in the "most popular"also won the majority of users praise!
I SR series standard features:
1. WEIHONG or SIEMENS friendly user operating system. 2. Imported linear guide rail. 3. Imported high precision transmission cable rack, gear, stable running fast. 4. 25000-30000mm/ minutes idle fast movement. 5. Automatic tool calibration system. 6. USB and network file transfer function. 7. Table is fixed, Longmen frame moving . 8. Power requirements: 3PH 380V/50HZ.
II Packing :Seaworthy wooden case with packaging film and protecting foam inside.
III CNC Router processing samples show:
No.
Content
SR-100
SR-200
Remarks
1
Travel
X-axis working area
1220
1500
Y-axis working area
2440
3000
Z-axis working area
150
150
All Machine size (mm)
3470*2050*2050
3970*2300*2050
2
Parameter
X\Y\Z axis motion positioning accuracy
+/-0.03
+/-0.03
X\Y\Z axis Repeat positioning accuracy
+/-0.03
+/-0.03
Idle speed
30000mm/min
30000mm/min
The maximum processing speed
25000mm/min
25000mm/min
Working voltage
AC380V/50HZ 3PH
AC380V/50HZ 3PH
3
Spindle
Main properties
HSD Air cooling
HSDAir cooling
Italy(Automatic tool change)
Spindle speed
24000RPM
24000RPM
Spindle power
9KW
9KW
Taper of spindle
ISO30ER32
ISO30ER32
Spindle balance level
G2.5
G2.5
4
Rail
Linear guide rail
PMI
PMI
Taiwan
5
Rack
Oblique rack
WMH
WMH
Germany
6
Bearing Seat
The bearing seat
Imported
Imported
Taiwan
