Production Name:
Pallet Extrusion Blow Moulding Machine
Usage:
Big Plastic Panel Forming
Automation:
Automatic
Making Method Of Parison:
Extrusion-Blow Molding
Computerized:
Computerized
Raw Material:
PP, PE, HDPE...
Certification:
CE, SGS, ISO9001
Product Description

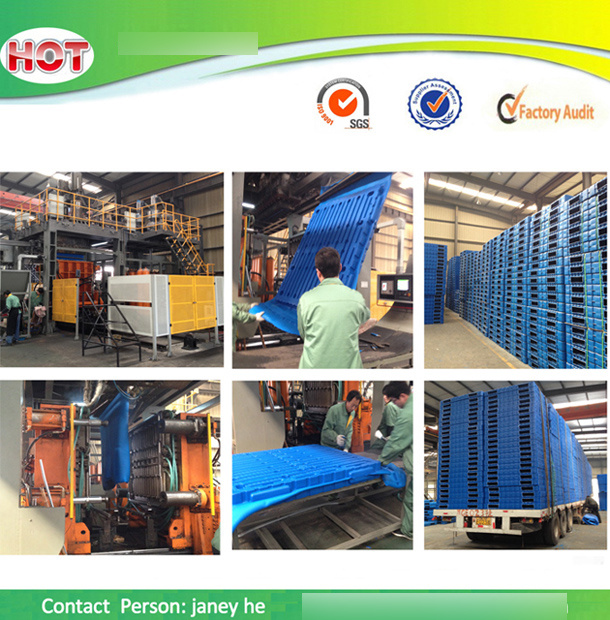

Pallet extrusion blow moulding machine
Good quality and best price can make your needs
It is a special machines used for producing products with High Molecular Weight High Density
Polyethylene (HMWHDPE) as the raw material, including oversize plastic wall panels, door panels, ocean buoys, safety barriers for highway, athletic equipments, and plastic products of recreational facilities. The machines is designed and manufactured in accordance with standards of similar machine models of Germany, and this machine model has the optimized performance price ratio in the world.
TDB160E is an accumulation and injection type extrusion blow molding machine which can produce plastic door panels and plastic desktop panels. It has reasonable structure and steady and reliable performance.
Item
Code Item
Standard Code
Manual
Note
Capacity
MaX
1200L(MAX)
Extruder
(Main extruder)
Main screw
φ120mm
High efficiency of mixing
Screw L/D
32:1
Screw number
2
Screw material
38CrMoALA
Max. Extruder consumption
360*2=720KG/Hr
For example: HMW HDPE, change with material density
Twisting transition method
Electrical machinery, Gear box, Leather belt transmission
Hard gear surface decelerator
Driving motor
132*2=264KW
Screw rotate speed
5_60r/min
Ahead/back adjusting
Yes
Up/down adjusting
Yes
Temperature control zone
6*2
Japan MTSUBISHI module
Heating power
40x2=80KW
Three-phase
Cooling for blower
5*2
Cooling function
Yes
Cooling water
Clamping unit (Mold opening/closing unit)
Structure
Tie-barless
Self-locking, linear guider type
Clamping directions
Ball rail
clamping structure in high speed and high force, to achieve quality products
Hydraulic of mold moving
φ100×800mm
2
Mold opening stroke
400~2000mm
Hydraulic of self-locking
φ200×160mm
4
Hydraulic of retaining ring
φ200×50mm
4
Stroke of side mold moving
2900mm
Hydraulic of bottom blowing
φ80×400mm
Pre-clip device
Max 915mm
Platen dimension
1600*1800mm
W*H
Max. Mold dimension
1600*1800mm
W*H
Clamping force
2000KN
Mold opening/closing stroke control
Electronic ruler
Light
Electric
Safety protect
FOTEK
Taiwan
Die head
Form
Circle & single layer type
Special for panel type products
External,easy to processing and craft adjustment
Using 100-point MOOG parison control
Material
38CrMoALA
Accumulator volume
65L
HMW HDPE=48KG
Die dimension s
φ300~φ750
Heating method
Stainless steel heating ring, precision + 1%
Heating capacity
90KW
3-phase
Temperature control zone
6
Blow-air
Yes
adjustable
Adjusting of parison thickness
Yes
Adjustable by MOOG 100-point
Injecting stroke control
Accumulator electronic ruler + limit switch
Adjusting method of thickness
Inner mold adjusting
Injecting pressure
75~140kg
adjustable
Max. Injecting speed
1.6Kg/sec
Bottom blowing
Hydraulic stroke
400mm
Mechanical hand
Running method
Hydraulic drive motor
Cylinder drive
Cooling water
Electric system
Temperature control
Temperature controller
MITUSBISH
Protection
Grating joint control
Movement control
PLC
MITUSBISH
Operation interface
Human-machine interface
HITECH, Taiwan
Time setting
Touch screen
Oil pressure system
Energy accumulator
Twelve
Main motor
26KW
Lv.4
Movement control method
Proportion pressure control
0~999
Pressure of system
14-16Mpa
Design pressure:21Mpa
Power of servo hydraulic pump
5.5KW
Others
Lubrication way
Using butter
Oil pressure cooling
Cooling effect is achieved by oil pressure cooling
Pressure of gas
1.0Mpa
Quantity of gas
5.0m³/min
Pressure of cooling water
0.4Mpa
Quantity of cooling water
350L/min
Gear box, hopper place, die dimension cooling
Use separated cooling water circuit, insure cooling effect
Overall dimension
L×W×H
11500×9000×6900mm
Weight
TON
70T
