North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:
60bph
Automation:
Automatic
Making Method Of Parison:
Extrusion-Blow Molding
Computerized:
Computerized
Certification:
CE
Type:
Extrusion Blow Molding Machine
Raw Material:
PC
Product Description

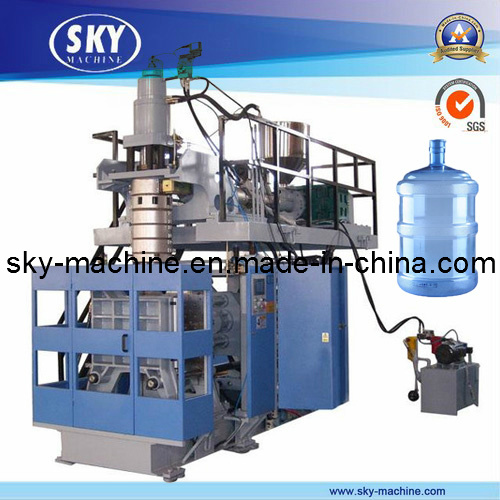

PC Bottle Blow Moulding Machine 1,Model:SKY-82PC 2,Capacity:60bph

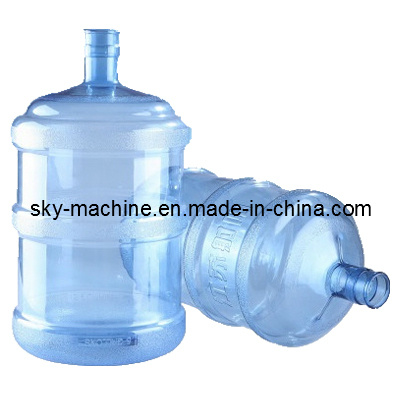

1,Brief introduction JMX82PC Blow Molding Machine is specially designed to produce pure water barrel. It can produce 50 ~60barrels an hour.
2, Investment Feasibility analysis: PC Material: There is little manufacturer in China.Most of them are import from Taiwan, the United States and other countries, the price is between 1,550-1,870 USD according to quality, renewable material will be a little less. Capacity: 1 piece / min, from raw materials to finished first forming. Generally, the net weight ofPC barrel 5 gallons is about 750 grams, coupled with the production of flash, and consumption of starting the machine,the weight may be 800 grams per piece. operators: 2 people production: about 480 / 8 hours Rated power: 70KW Average power consumption: 45KW (host) +5.5 KW (air compressor) +3 KW (Dryer) the total area occupied by each machine for the production of 100 square meters (excluding raw materials and finished products warehouse).
Item
Value
Unit
Mold-closing device
Clamping force
215
KN
Product specification
25
L
Platen size
700×680
mm
Mold size
550×650
mm
Distance of mold platen
350/780
mm
Stroke
450
mm
Extruder system
Screw Diameter
φ82
mm
Max. screw rotating speed
75
r/min
Plasticizing capacity
120(PC)
Kg/h
Heating parameter
8
section
Accumulator die
Cubage of accumulator
1.85
L
Heating parameter
4
section
Max. diameter of die
150
mm
Driving and heating power
Hydraulic pump
30
Kw
Heating power
21.4
Kw
Cool power
4×185
w
Die-head heating power
8
Kw
General machinery power
70
Kw
Average power consumption
45
Kw
Air source pressure
0.8
Mpa
Air source flux
0.4
m3/min
Cooling water pressure
0.3
Mpa
Cooling water flux
0.3
m3/min
Main machine size
Machine length
4230
mm
Machine width
2300
mm
Machine height
3500
mm
