| Price: | US $ 70000-200000/Piece |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | SJW Single Screw Extruder |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: | 3 Phase, 380V(±10%), 50Hz |
| Raw Material: | PC, Added UV |
| Product Width: | 2100 Mm |
| Thickness Range: | 4-6 Mm, 8-10 Mm |
| Total Power: | 590 Kw |
| Max. Capacity: | 350 Kg/H |
| Electric Control: | Siemens & Schneider |
| Extruder Type: | Single Screw Extruder for PC Hollow Sheet Extrusio |
| Type: | Sheet Extruder |
| Product Type: | Extrusion Molding Machine |
| Feeding Mode: | Multiple Feed |
| Assembly Structure: | Integral Type Extruder |
| Screw: | Single-Screw |
| Engagement System: | Non-Intermeshing |
| Screw Channel Structure: | Deep Screw |
| Exhaust: | Exhaust |
| Automation: | Automatic |
| Computerized: | Computerized |
| Plastic Processed: | PC, PP, PE, ABS, PMMA. Pet, PVC, etc. |

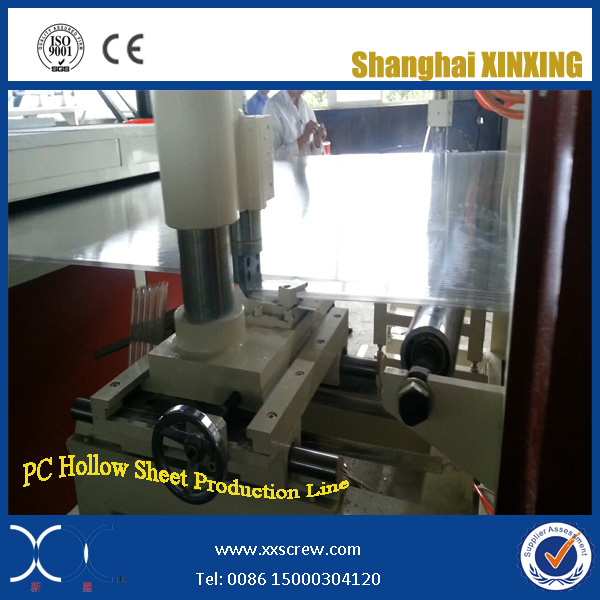

PC Hollow Sheet Extrusion Line
Introduction:
This PC Hollow Sheet Extrusion Line consists of Single screw extruder, UV Single screw extruder, Screen changer, Melt pump, Distributor, Mould, Vacuum forming table, Primary haul-off, Drop-prevention device, Tempering furnace, Secondary haul-off, Double-station film covering device, Crosscutting conveying table, Lift stacker, Auxiliary device.
Driving motor: England Eurothrm 591 speed governor, Electric control system: Siemens, Schneider.
Product size: Width×Thickness 2100×(4-10)mm
Total power of complete line: 590Kw Main driving motor: 250Kw, DC type
SJW120/35 Single screw extruder:
Extruding capacity 350Kg/h, adjustable through England Eurothrm 591 DC speed governor. Oblique hardened gear reducer. With vacuum exhaust device. Ceramic heating. Air-cooling through cooling fan.
| Material | Nitriding depth | Hardness | Surface Roughness | |
| Screw | 38CrMoAlA | 0.5-0.6 mm | HV740-940 | Outer, Ra≤0.8μm |
| Barrel | 38CrMoAlA | 0.5-0.7 mm | HV≥940 | Inner, Ra≤01.6μm |
UV SJW45/30 Single Screw Extruder:
Coextrusion layer for the prevention from ultraviolet radiation. Screw rotated speed controlled by ABB AC governor. Oblique hardened gear reducer.
Screen changer: Hydraulic rapid filter to get cleaner material.
Drop-prevention device: Prevention for condensed water drop. Pneumatic by air cylinder.
Double-station film covering device: Protection for product surface.

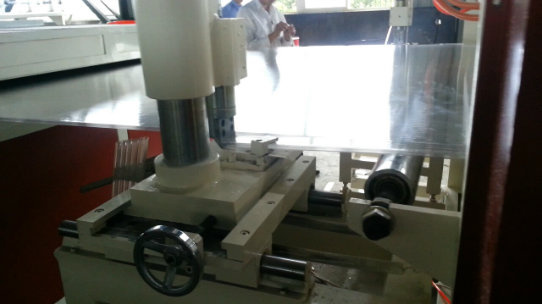

Production
