PE Bottle Blow Moulding Machine
| Price: |
Negotiable |
| Trade Terms: |
FOB |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic: |
Yes |
| Computerized: |
Yes |
| Making Method Of Parison: |
Extrusion-Blow Molding |
| Type (',For Injection Machine): |
Full-Electric Controlled |
| Kind: |
Single Screw |
| Processing Technics: |
Blow Molding Machine |
| Type: |
Plastic Extruding Machine |
Product Description

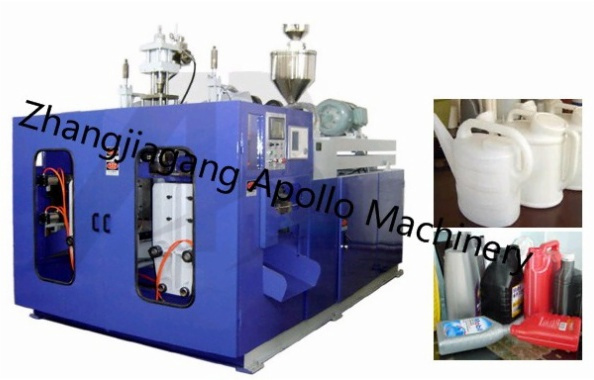

5L PE blow moulding machine
Model No.: ABLB7(Double station single die head)
ABLB75 5L PE blow moulding machine was specially designed for making plastic water bottles, lubricant oil bottles, detergent bottles, cosmetic bottles, and other plastic containers not over 7.5L
|
electronic parts |
|
Name |
Trader |
Micro computer control system |
Japanese MITSUBISHI |
Temperature Controller |
TAIWAN YANHUA PID |
Auxiliary Relay |
OMRON |
contactor |
Schneider from France |
Electric motor |
Three phase 220V or 380V |
Power Source |
TAIWAN MEANWELL |
Transducer |
TAIDA FROM CHINA |
|
hydraulic parts |
|
Name |
Trader |
Oil pump |
TAIWAN HIGH-TECH |
Valve |
JAPAN YUKEN |
Oil pump and connection |
JAPAN YUKEN |
Sealed part |
HALLITE |
|
air control system |
|
Name |
Trader |
Cylinder |
AIRTAC |
Air Valve |
FESTO |
Technical Parameters: ( ABLB75
|
Max. Product volume |
7.5 liters |
|
Output capacity |
150~180pc/h |
|
Screw diameter |
75mm |
|
Screw L/D ratio |
24 L/D |
|
Screw drive power |
22 KW |
|
Screw heating capacity |
7 KW |
|
No.of heating zone |
4 zones |
|
Output of HDPE |
100KG/H |
|
Oil pump drive power |
11 KW |
|
Clamping force |
78KN |
|
Max.size of mold |
148-568mm |
|
Mold stroke |
400 X 450mm |
|
Max.die diameter |
160mm |
|
Blowing pressure |
0.6 mpa |
|
Air Volume |
0.8 M³/MIN |
|
Cooling water pressure |
0.3mpa |
|
Water consumption |
80 L/MIN |
|
Size of Machine |
3.8x2.2x2.8m |
|
Weight of machine |
8 ton |
We Apollo Machinery, located in the high-speed developing port city-Zhangjiagang, which is nearby to the international big city-Shanghai, specializes in making various kinds of blowing molding machine for the solution for plastic industry. We have specialized in this field for over 10 years. Our company with over 100 staff was established in 1997, occupy 8000 square meters.
Through over 10 years of hard struggle, our company has developed from a small company to Medium and Large size company. We always place our customer's profit on the first place through high quality, responsible price and considerate after-sale sevices.
We can provide blow molding machines for various kinds of plastic products, including cosmetic packaging, medical packing, washing packing, foodstuff packing, lubricate packing, plastic toys, hollow tube, tool boxes, chemical barrel and more. Our machinery are suitable for plastic containers from 5ML to 200L. Our machinery are also suitable for various kinds of plastic processing such as: PP, PE, PVC, PA, ABS, PPE, POM, PPO, HDPE, PVDC, EVOH, PETG and so on. So we are confident that we can meet your various kinds of demands for plastic blow molding machines.
Our products have a great reputation in the blow molding machinery and our products are always warmly welcomed by our new and old customers. Not only our sales in our domestic land, our products are also exported to overseas, such as America area: Canada, Mexico, Argentina, Colombia, Europe area: UK, France, Germany. Russia, Middle East area: Saudi Arabia, Oman, Iran, Turkey and the other countries of Asia: Japan, Philippines, Myanmar, India and more.
