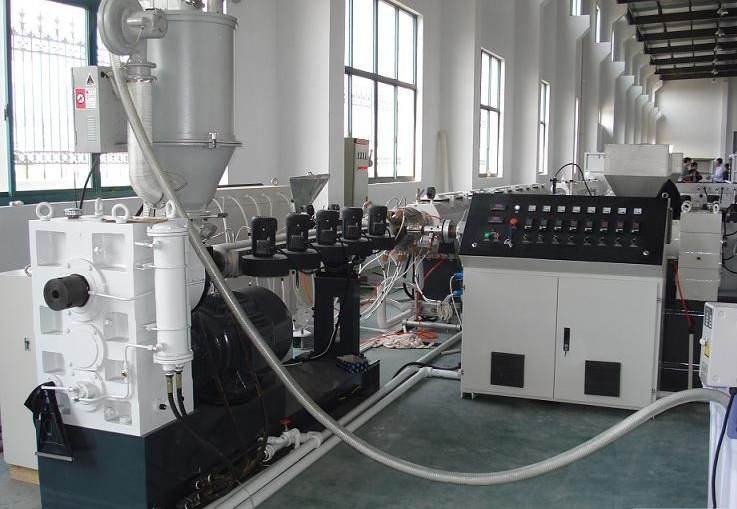

PE/HDPE Pipe Machine/ Extrusion Line (12-800mm) (JD-PEG800)
Price: |
US $ 40000-300000/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,Western Union |
Prod Model: |
JD-PEG800 |
Markets: |
Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
Application: |
PE Pipe Extrusion |
PE Pipe Dia(Mm): |
12-800mm |
Certificate: |
CE, SGS |
Extruder Type: |
Sj65/33, Sj75/33, Sj90/33, Sj120/33, Sj150/33 |
Screw Dia(Mm): |
65/75/90/120/150 |
Max Extrusion Capacity(Kg/H): |
180-1200 |
Installed Power(Kw): |
98-450 |
Design Speed(M/Min): |
0.5-10 |
Certification: |
ISO9001:2008 |
Automation: |
Automatic |
Product Type: |
PE Pipe |
Computerized: |
Computerized |
Product Description
PE pipe line/PE pipe production line/PE pipe extrusion machine/PE pipe extruder
Features and application of HDPE pipe line/HDPE pipe production line
--- This production line is mainly used for producing water supply pipe and drainage in the field of agriculture and construction, cable etc.
--- This HDPE pipe production line consists mainly of vacuum calibration tank, haul-off unit, stacker etc.
Single screw extruder and haul-off unit apply famous A/C frequency conversion speed regulation device, both vacuum pump and driving motor apply famous brand.
--- The haul-off unit includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type, ten-claw type, twelve-claw type etc.
--- Non-bits cutting machine, saw blade cutting machine or planetary cutting machine can be applied, the property of machine group is reliable, the production efficiency is high. With special device, it can produce inner wall spiral pipe, inner wall hollow pipe, and core layer foam pipe, it can also produce PP, PE, ABS, PPR, PEX, silicon core pipe etc.
--- The planetary cutting machine is controlled automatically with computer, it has advantages of simple operation, reliable performance etc. It has reached international advanced level.
HDPE water gas/water pipe extrusion line designed and manufactured by Qingdao Jiedong Machinery based on years of experience, combined with the actual situation at home and abroad, has a beautiful appearance, a high degree of automation and stable production, well received by the customers.
Pipe produced by this line has excellent hardness and flexibility, heat resistance, aging resistance, high mechanical strength, environmental stress cracking resistance and creep resistance, hot-melt connectivity, and other advantages, it is the first choice of city gas and water transmission pipeline.
Model/Spec. |
Diameter range (mm) |
Co-extruder model |
Line speed (m/min) |
Max output (Kg/h) |
Installed power (kw) |
LSG65/33 |
12-110 |
LSJ25/25 |
0.5-10 |
180 |
98 |
LSG75/33 |
63-160 |
LSJ25/25 |
0.5-5 |
220 |
120 |
LSG90/33 |
160-400 |
LSJ30/25 |
0.5-2 |
450 |
220 |
LSG120/33 |
355-630 |
LSJ30/25 |
0.1-1 |
800 |
320 |
LSG150/33 |
400--800 |
LSJ40/25 |
0.1-0.5 |
1200 |
450 |
Qingdao JIEDONG plastic machinery Co., Ltd is a professional manufacturer of plastic machinery, who is one knowledge-intensive manufacturer dedicated to extruder kind of equipment of scientific research, development, fabrication, sales and service.
Our company was awarded science and technology progress enterprise title by Qingdao government, also holds ISO9001: 2000 and CE certificate, and has independent import and export rights.
Plastic machinery we manufactured widely covers series extruder of plastic pipes; plastic plate &sheet; plastic profile; granulating unit; plastic recycle machine and crusher, more than 20types and have more than 100 varieties.
Our plastic machinery with top quality and company hold very good reputation, so our plastic machine lines had far sold to 30 provinces and cities in domestic market and had export to India, Russia, Korea, Iran, Saudi Arabia, Turkey and Vietnam.
Our products include plastic pipe production line, plastic profile production line etc
such as:
machine for PVC pipe, PE/HDPE pipe, PPR pipe, PA/PU pipe, corrugated pipe, COD duct, pre-stressed corrugated pipe, PE carbon corrugated pipe etc.
Machine for plastic profile include: PVC sheet, PVC corner bead, PVC profile, PET sheet, PET packing belt, WPC sheet, WPC door/winder board, WPC profile etc.
auxiliary machinery include: Mixer, drying machine, crusher, pelletizer etc
