Control System:
Nominal or CNC
Voltage:
220V/380V
PLC:
Mitsubishi / Siemens
Electric Units:
Schneider
Motor:
Tatung
Pump:
Anson / Yuken
Pressure Gauge:
Skon
Certificate:
CE, ISO, SGS
Warranty:
2 Years
Product Description

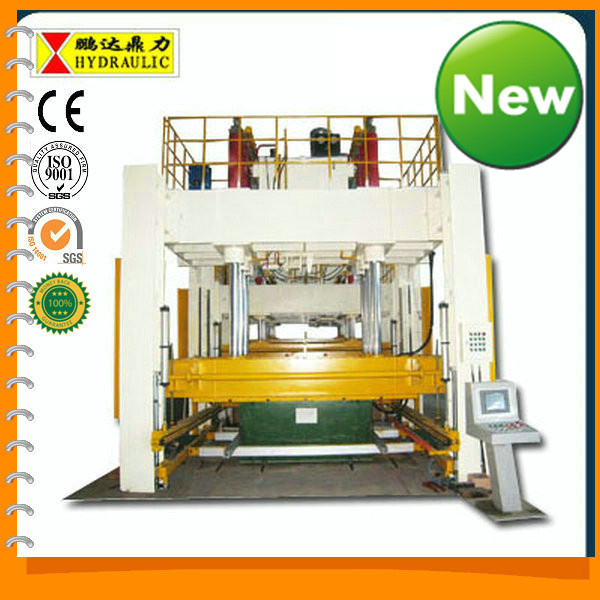

Pengda Overall Framework Hydraulic Press Feature
1). Working pressure and slider stroke can be adjusted.
2). Completed steel plate design guarantee machine to be strong and stable.
3). Oil cylinder adopt welded steel frame rigid to deflection moment. Shot blasting and specially treated against RUST.
4). Overload overflow protection is outfitted to hydraulic system, can assure no leakage, and the oil level can be read or seen directly
5). Hydraulic support insurance circuit to prevent go-down of slider out of control.
6). Electrical panel with cooling system designed to meet CE Standards and composed of automation and electrical equipments with SIEMENS brand.
Package & Shipping
1. Outside package: Standard export wooden cases or shell feed plate
2. Inner package: Stretch film
Guarantee and After-sale Services
* one year guarantee for whole machine except consumables
* 24 hours technical support by e-mail and telephone
* use-friendly English software, user manual and detailed videos/CD
* abroad installation, commissioning and training(charge)
Company Information
FAQ
1. How about your company?
A: We are real manufacturer. Founded in 2003 and have our own workshop, which is 30, 000 square meters. We got CE, ISO9001, ISO14001 certificate, and till today, our products spread most China city, Europe, South Africa, Middle East, South America and Southeast Asia etc.
2. How can you guarrantee your products?
A: Quality is the most important for one enterprise. No matter from material purchase, and very parts production, we have more than 10 quality inspector supervise completly. Besides, we have advanced testing device to guarantee products' quality after leaving factory.
3. Is there any problem to operate machines?
A: Our machines design simple and beautiful, it's easy to cooperate. Besides, we will offer use-friendly English software, user manual and detailed videos/CD. If you still have some problem, then you can call us, we will offer you the best service.
Type
Unit
800
1000
1250
1600
2000
2500
3000
Nominal force
KN
8000
10000
12500
16000
20000
25000
30000
Cushion pressure
KN
3000
3500
4000
400
630
8000
8000
Maximum opening
mm
A
1600
2000
2000
2000
2000
2200
2200
Maximum slider stroke
mm
B
1100
1000
1200
1200
1200
1200
1200
Cushion stroke
mm
C
300
350
400
500
500
500
500
The best moving out stroke of the table
mm
D
≥2200
≥2200
≥2000
≥2200
≥2200
≥2200
≥2200
Slider speed
down
Mm/s
250
250
250
250
250
250
250
working
Mm/s
8~15
8~15
8~15
8~15
7~12
7~12
7~12
return
Mm/s
100
100
100
100
80
80
80
Working table size
L-R
mm
E
2800
3200
3500
3500
3500
3500
3600
F-B
mm
F
2000
2200
2200
2200
2500
2800
2800
Cushion size
L-R
mm
G
2150
2150
2750
2750
2750
2750
2750
F-B
mm
H
1400
1550
1550
1550
1550
1800
1800
Machine size
L-R
mm
I
5500
6100
6580
6800
F-B
mm
J
4400
4800
4800
4800
height
mm
K
7000
8000
9200
9800
Motor power
KW
48
67
74
115
150
200
250
Wuxi Pengda Hydraulic Machine Factory is specialized in hydraulic press machine. We are located in a beautiful and strong economy city and near Shanghai.
We are the largest company in China Hydraulic Press Town, founded in 2003, with 30, 000 square meters worrkshop. We have 5 best engineers and over 30 technological elite, all of them have good technological skills and rich experience. We have advanced design capabilities, strong technical force and rich experience in installation and debugging. Company has a strong processing power, with all sorts of lathe machine, milling machine, planing machine, grinding machine, floor type boring and milling machine, horizontal boring machine, plano-boring and milling machine, numerical controlled flame cutting machine, CNC milling machine production equipment. Complete testing process guarantee each products working well after leave factory.
Our products have 11 series and more than 100 kinds. Single column hydraulic presses, four-column hydropresses, hydraulic rectifying machines, motor press mounting machines, motor aluminum casting machines, digital controlling hydropresses, plastic product hydropresses, thin plate stretching machines, universal hydropresses and desktop hydraulic presses are Our main products. It is mainly applicable in various motor industries, such as thin plate stretching, powder metallurgy, electronic meters, plastic products and motorcycle and automobile manufacture etc. We got CE, ISO9001, ISO14001 certificate, and till today, our products spread most China city, Europe, South Africa, Middle East, South America and Southeast Asia etc.
Hydraulic press, of course Pengda! We are looking forward to cooperation with you!
