North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Screw:
Single Screw
Plastic Processed:
Pert,PE
Output:
Max.100
Inverter:
ABB
Certificate:
SGS
Application:
Hot Water Supply Pipe
After Sale Service:
Engineers Available to Oversea Service
Product Type:
PERT Pipe
Automation:
Automatic
Computerized:
Computerized
Certification:
ISO9001:2008
Product Description

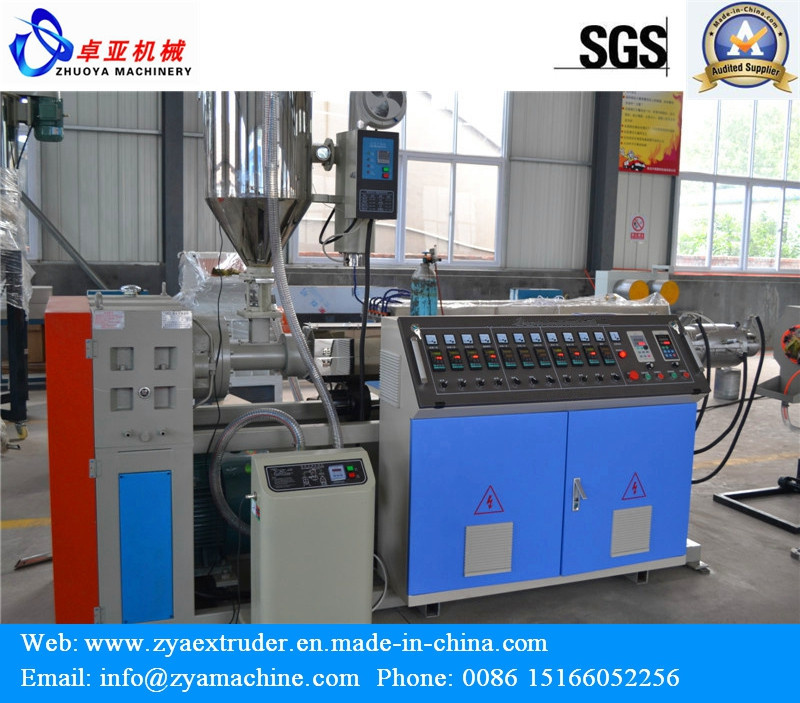

Plastic Machine PERT Hot Water Heating Pipe Extruder Machine
Features: 1. Screw Type: special single screw extruder for polyolefin with high extruding speed and effective plasticization. Separation mixing screw specialized for polyolefin. 2. Extrusion Type: specially designed three co-extruding die, reasonable channel, smooth outside and inside wall, and little internal stress. 3. Pipe Dia: 16mm to 25mm, extruding speed 16 m/min.

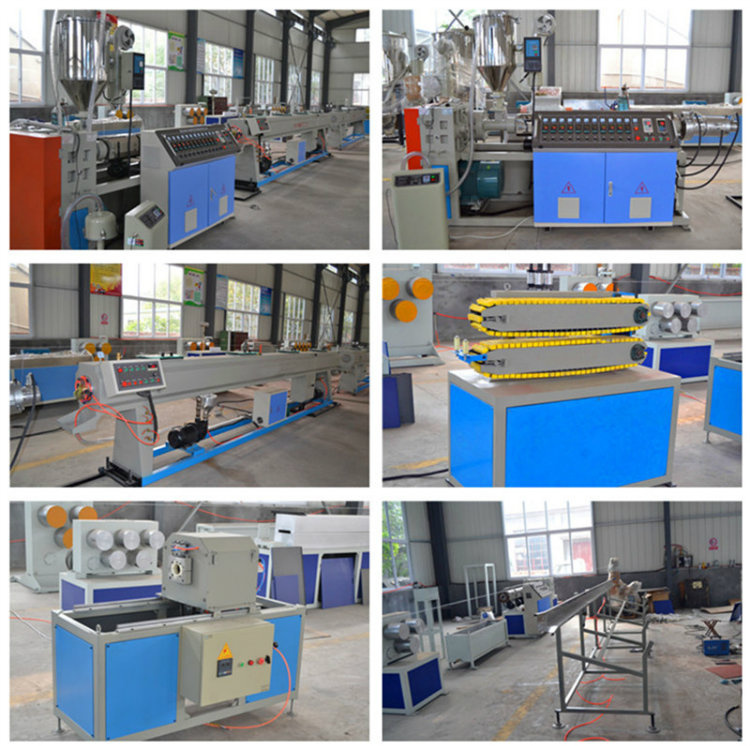

Processing flow of PERT pipe production line:
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul-off machine → cutting machine → discharging rack
Technical Specification:
Model (Groove Feed Type)
SJ-65
SJ-75
SJ-90
Pipe Range (mm)
16-63
16-110
63-160
Capacity (kg/hr)
100
125
160
Main Motor (kw)
37
55
75
Haulling Speed (max. M/min)
2-8
2-8
2-8
Vacuum Tank
Pump Drive (kw)
2.2
3.7
3.7 & 2.2
Length (mtrs)
6
6
6
Water Tank
Pump Drive (kw)
3.7
3.7
3.7
Length (mtrs)
-
6
6+6
Total Power (kw)
80
105
140
Line Length (m)
30
38
50
