Brand:
Yaova
Cavities:
1-2
Machine Size:
1.6*0.6*1.7
Max Volume:
2000ml
Machine Weight:
550 Kg
Raw Material:
PET
Making Method Of Parison:
Stretch Blow
Automation:
Non-Automatic
Computerized:
Computerized
Certification:
ISO9001:2008
Product Description

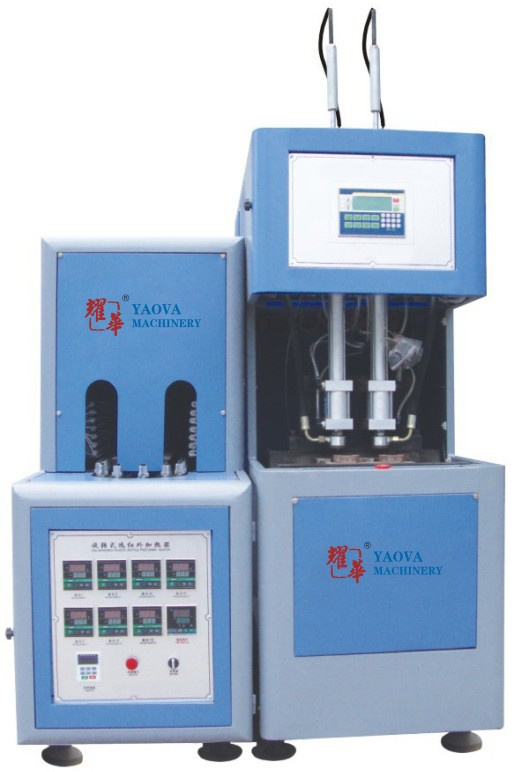

2000ml Semi-Automatic PET Stretch Blow Moulding Machine

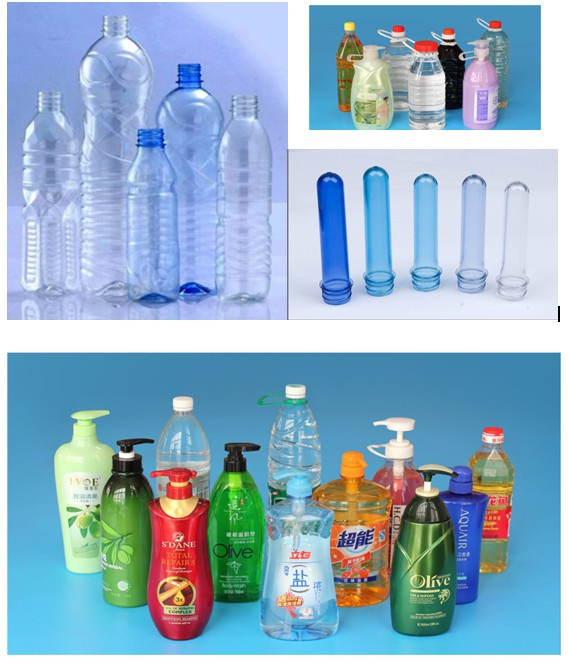

Application: This machine is suitable for making mineral water bottles,carbonated beverage bottles,cosmetics bottles,medicine bottles etc. less than 300ml. Optimization design of a integrated templates,high strength,using lifetime. Main Features:
*Template precision machining,running rapid and stable
*Can add high pressure gas recovery device as low pressure use.
*Frequency conversation constant temperature and layered heating system make heating equality,finished product stable.
*Use the advanced touch-screen computer control,easy operation.
*Modular design.
Technical Specification:
Semi-Automatic Stretch Blow Moulding Machine
Category
Item
Unit
YV-2000S-1
YV-2000S-2
Product Specification
Max volume
ML
2000
Output
pcs
600-900
1200-1800
Body diameter
mm
95
Bottle height
mm
320
Neck diameter
mm
>=14
Mold
Cavity
cavity
2
Clamping stroke
mm
160
Max Stretch stroke
mm
360
Mold thichness
mm
220
Power
Voltage standad
--
220/380/415V 50/60HZ 3 phase
Total power
kw
10
15
Air source
HP air compressor
--
0.7m³/min 3.0Mpa
1.2m³/min 3.0Mpa
LP air compressor
--
1.0m³/min 3.0Mpa
Machine specification
Blower(L*W*H)
m
1.6*0.6*1.7
1.6*0.6*1.7 two pcs
Blower weight
kg
550
550*2
Heater(L*W*H)
m
1.8*0.6*1.5
Heater weight
kg
250
Our services: 1. Reply the email and take action in 24 hours; 2. 100% Quality inspection before the shipment; 3. Offer trainning to clients operator for free in seller`s factory 4. Engineer overseas is avilable 5. Blowing mould and injection mould made orginal 6. Auxiliary machines for complate line. 7. Custimized design as requirements.
YAOVA series PET stretch blow molding machine is belong to TONVA Plastics Machine Co., Ltd., which was established in 1993, and specializes in producing PET stretch Blow Molding Machines. Extrusion Blow Molding Machines, Vacuum Forming machine, moulds and related Auxiliary machines.
Company has a group of experienced engineers who contribute to more than twenty years in Blow Molding Machine industry and a team who is good at after-sale service. Based on fabulous reputation and favorable service, our products reach great sales both in domestic market and more than 50 countries. The company has passed the ISO9001: 2008 International Quality Control System and the CE system. We produce more than 400 sets of machines every year, total annual sales volume up to USD 5 million, and keep going every year.
YAOVA stretch blow molding machine can be divided into fully automatic machine, hand feeding perform automatic machine, and semi-automatic machine, they are used to produce various kind of products, such as mineral water bottles, beverage bottles, oil bottles, cosmetics bottles, Zip-top can, juice bottles, milk bottles, jars, PP bottles, tennis ball bottles, candy bottles, eye dropper bottles and PC bottles etc.
