Voltage:
380V
Type:
Tube Head Injection
Structure:
Horizontal
Plastic Type:
Thermoplastic
Plasticizing Way:
Screw Type
Clamping Way:
Hydraulic & Mechanical
Certification:
SGS
Automation:
Automatic
Computerized:
Computerized

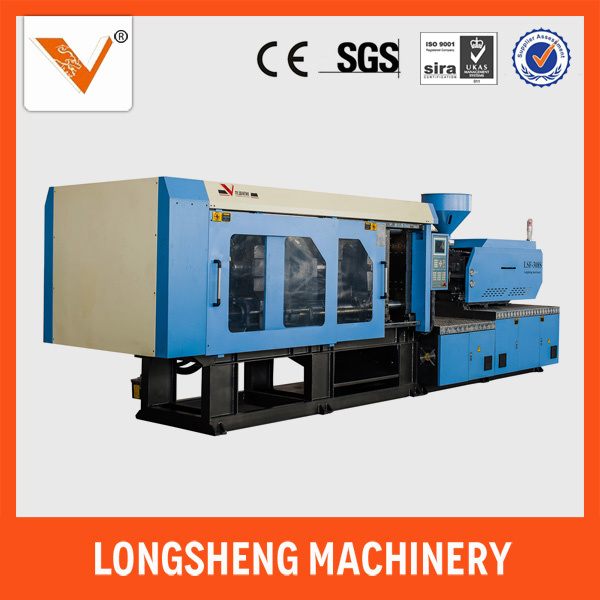

Product Description
Plastic machinery is designed by our enterprise with the most innovative technology. With some certain cavities, It can produce all kinds of plastic products. We are capable of offering every customer a suitable machine with a reasonable price.
INJECTION UNIT
item
unit
LSF258S
A
B
C
screw diameter
mm
50
55
60
screw L/D ratio
L/D
24
21.8
20
theoretical shot size
cm3
557
676
802
injection weight
g
507
610
730
Injection rate
g/s
121
146
174
Plasticizing capacity
g/s
32
42
49
Injection pressure
Mpa
223
184
155
Screw speed
rpm
0-190
CLAMPING UNIT
Clamp force
KN
2580
Space between tie bars
mm
560*530
Toggle stroke
mm
505
Max. mold height
mm
560
Min. mold height
mm
200
Ejector stroke
mm
150
Ejector tonnage
KN
62
Ejector number
p
9
OTHERS
Max.pump pressure
Mpa
16
Pump motor power
KW
22
Heater power
KW
16
Machine dimension
m
5.3*1.5*1.95
Machine weight
t
7.1
