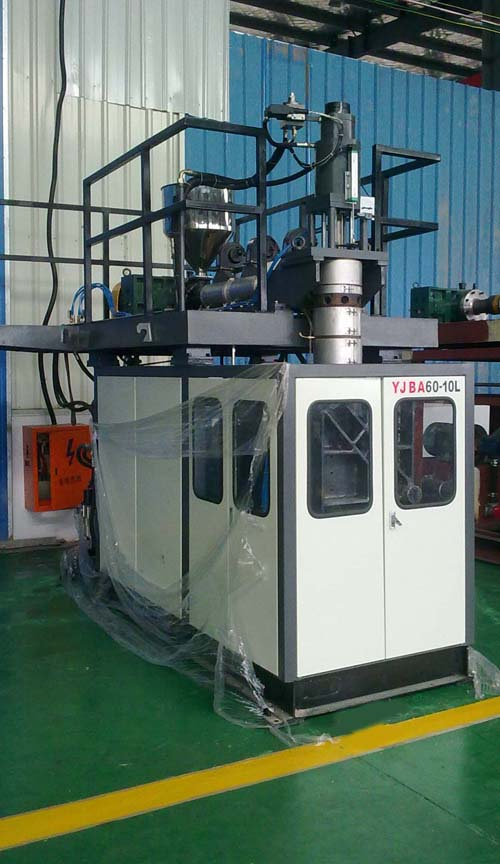

Extrusion Blow Moulding Machine (YJBA60-10L)
Place of Origin: China Zhangjiagang
Features:
1) Accumulator die head with parison control system
2)Maximum capacity: 10L
3) Screw diameter: 60mm
4) Controlled by Japanese PLC
5) Temperature controlled model
6) Interactive bilingual monitor with machine-human interface
7) Excellent imported hydraulic elements and electric elements
8) Proportional control
9) Design on Accumulator Head with Adjustable Core for Blow Moulding
10) Hard gear surface reducer
Main
parameter |
Available material |
PE,PP^^ |
Max. Product Volume |
10 |
(L) |
Dry Cycle |
850 |
(pcs/h) |
Machine Size |
3.2×1.4×2.7 |
(L×W×H)(m) |
Machine Weight |
5 |
(Ton) |
Installed capacity |
35 |
KW |
Plasticizing
system |
Screw Diameter |
60 |
(mm) |
Screw L/D Ratio |
24 |
L/D |
Plasticizing capacity |
70 |
(kg/h) |
Screw Heating Zone |
3 |
(Zone) |
Screw Drive Power |
15 |
(KW) |
Extrusion
die head |
accumulator die head |
NO. of Heating Zone |
4 |
(Zone) |
Die Heating Power |
7 |
(KW) |
Max. Die Diameter |
180 |
(mm) |
Opening
and clamping system |
Clamping Force |
80 |
(KN) |
Mold Stroke |
280-624 |
(mm) |
Max. Mold Size |
520×580 |
(W×H)(mm) |
Hydraulic
system |
Oil Pump Power |
7.5 |
(KW) |
System pressure |
10 |
(MPa) |
PLASTICZING SYSTEM |
Screw |
Adopt high-performance nitralloy steel screw to ensure the material be plasticized evenly and completely;
Good plasticizing capability, high output;
Transducer adjusts speed and collects temperature-control signals to prevent the screw from cold starting. |
Speed Reducer |
Hard-teeth, low noise & wear-resistant speed reducer |
Machine Barrel Screw |
38CrMoALA high quality nitrogen steel |
Heating Zone |
3 Zone Casting, aluminum heater |
Extrusion Motor |
Three phase asynchronism motor (380V\50HZ) |
Cooling fan |
3 zones |
EXTRUCTION SYSTEM |
Die Head |
38CrMoALA high quality nitrogen steel |
Parison controll |
MOOG 100 points parison controller or manual operation |
Heating Zone |
3 zone, heat coil of stainless steel |
Die Heat Huff |
Pressure and capacity can be adjusted |
Preform Adjustment |
Automatic |
Heat insulation |
By heat insulating board between accumulator and hydraulic cylinder |
OPENING AND CLAMPING SYSTEM |
Clamping structure |
Three tie bar and three cylinder, enough power |
Molds moving structure |
Two linear rolling guideway, high precision |
Max. Mold Platen (W×H) |
320×380mm, suitable to install different sizes of molds |
ELECTRIC CONTROL SYSTEM |
Programmable Logic Controller |
Japanese MITSUBISHI PLC, famous brand
Stable and perfect performance, high precision |
Touch Screen |
Colorful touch screen, autoalarm, self-diagnose the system |
Temperature Control |
Self-regulation |
Temperature Module |
MITSUBISHI automatic temperature module, digital |
Action control |
Japanese MITSUBISHI, programmable |
Protection Function |
Automatic alert and breakdown feedback, double protection of mechanical apparatus |
HYDRAULIC SYSTEM |
Function |
Proportion pressure controller, changing direction quickly and softly |
Oil pump motor |
three phase asynchronism motor (380 V, 50 HZ) |
Hydraulic pump |
Vane pump |
Hydraulic valve |
Imported hydraulic components_YUKEN |
Pipes |
Bilayer high pressure blast pipes |
Cooling Mode |
Water cooler and oil cooler separately |
PNEUMATIC SYSTEM |
Component |
Imported famous brand pneumatic parts |
Valve |
TAIWAI AIRTAC |
COOLING SYSTEM |
Three cooling ways |
Mold\barrel\oil box adopt independent cooling waterway |
Cooling Medium |
water |
Colling water consumption |
Underground water or provided by Water chiller |
Water Pressure |
0.2-0.6 (Mpa) |
