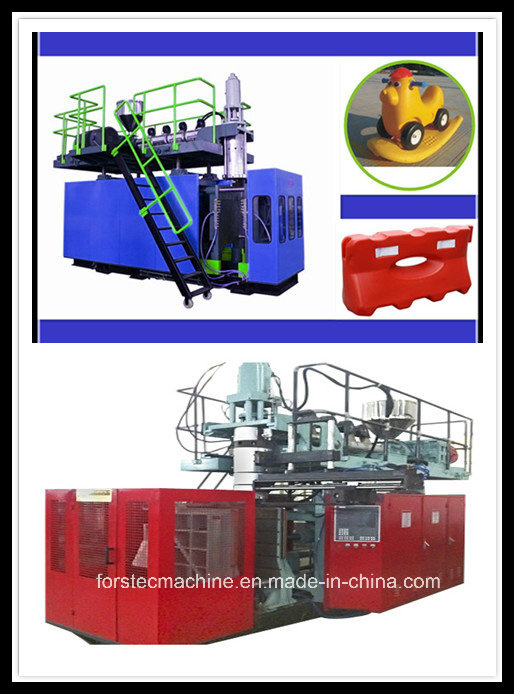

Plastic Can Barrel Blow Moulding Extrusion Machine for 50L

Prod Model:	FSC90
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Condition:	Accumulator Head
High Efficiency:	Yes, High Speed
Max Products:	60L
Capacity:	About 60PCS/H
Fully Automatic:	Yes
Place Of Origin:	China
Blow Molding Type:	Extrusion Blow Molding Type
Brand Name:	Forstec
Diemension:	6.8*6.4*3.6
Waranty:	1 Year
Type:	Extrusion Blow Molding Machine
Raw Material:	HDPE
Making Method Of Parison:	Extrusion-Blow Molding
Automation:	Automatic
Computerized:	Computerized
Certification:	ISO9001:2008

Product Description

Plastic Can Barrel Blow Moulding Extrusion Machine for 50L:

1). Extrusion blow molding machine experience for more than 12 years
2). Machine produce kinds of plastic products, such as bottles, cans, chemical drums, plate, tables, chairs, auto parts, road barriers, guiderails, blow pallets, ibc containersand etc.
3). The famous imported components for machine
4). Taiwan yuken hydraulic valve for stable working
5). Double station, high speed for bottle extrusion.

Some general information for this Plastic Can Barrel Blow Moulding Extrusion Machine for 50L:
1). Bent axis beam center clamping double station linear guide blance system
2). Inverter control and gard gear surface and 3 phases asynchrinous motor in extrusion system
3). Central-in head in die system
4). Import hydraulic valve, seal parts and electro-hydraulic propotional control and rariable pump in hydraulic system

2. Main characteristics of Plastic Can Barrel Blow Moulding Extrusion Machine for 50L:
1). Continous extrusion head, single layer, the capacity is up to 0.5L-15L jerrycan, bottles, drum ans etc products.
2). It process the material as hdpe, pp, abs and etc.
3). Power supply: 380vac, 50hz (depending on client's county ).
4). It is double station, which can equip with 1, 2, 3, 4, 5, 6 cavity, the specific will be according to customer's capacity request. This type of machine is high speed machine. It is suitable for higher capacity requirment customer. The capacity for 1l bottle, 6 cavity is about 2200pcs/h which has higher efficiency than the normal type bottle extrusion blow molding machine.
5). The machine is mainly composed of extrusion system, die head system, clamping system, hydraulic system and electrical systems.

General Specification for this Plastic Can Barrel Blow Moulding Extrusion Machine for 50L:
Extrusion system: Screw: Specially designed based on material's trait, high quality nitriding steel 38crmoala, with nitriding surface hv≥ 800, brittleness≤ 2.
Die head system: Vontinous extrusion die head, single cylinder, central injection, vertical fist in first out design, accumulator channel slick; Slip parts like injection piston and cylinder made with different material and technique, work balanced and reliable.
Clamping system: Fixed clamping system, double diagonal tie bar single cylinder central clamping, wider space for the mould, install and dismantle the mould easily, linear roll guide rail.
Hydraulic system: Adopted proportional pressure controlling, with hydraulic valve and pump of taiwan yuken, balanced and accurate action, prolonged useful life, sensitive response.
Electrical system: Adopt plc to control the action program of the whole machine; Adopt touch screen for communication, parameter setting, modification and picture display

3. Advantages of this Plastic Can Barrel Blow Moulding Extrusion Machine for 50L:
1). Adopt energy-saving system which can increase the 50% efficiency.
2). The capacity is 50% higher than some others.
3). Power consumption is about 15% lower.
4). All process are well computerized which makes the operation more conenient.
5). Imported hydraulic components which gurantee the stable working for long time.
6). This machine adopt the directional proportional valves which can gurantee the stable working process.

The detailed parameters for this Accumulator Extrusion Moulding Machine for Drums Jerry Cans Toys:

extruder
1	Screw diameter	90mm
2	L/D ratio	28:1
3	Screw speed	15-80r.p.m.
4	Drive motor	75Kw
6	Heating zone with cooling fan	5 zones
7	Output/Throughout	200-250Kg/hr(HDPE  particle)
8	Heating capacity	9.1*5 kw
9	Vertical adjustment of head	500mm
10	Forward/Backward adjustment of head	600mm
11	Groove feed barrel cylinder	Have IKV
12	Gear box	Hard gear decelerator
13	Ladder and safety rails	fixed
DIE HEAD
2	Design	First in and first out
3	Heating zone	3zones
4	Heating capacity	2.6kw/die head
5	Max die&pin diameter	500mm
6	Die head axis with pre-blow	220mm
7	Accumulator push-out stroke measurement	Transducer  Italy Gefran
8	Injection pressure	12Mpa
9	Extruder stop	Have
CLAMPING UNIT
1	Tie bar	Two tie bar
2	Platen size	730(W)X540(H)
3
4	Clamping force	220KN
5	Close/Open stroke	320-700mm
6	size of mold	730×540mm
7	Clamping stroke measurement	Proximal sensor from TAIWAN
8	Hydraulic valve	Taiwan Haitack
9	Number of hydraulic cylinder	1
10	High pressure	14mpa
11	Support parts for platen movement	Liner Guide
HYDRAULIC SYSTEM
1	Drive motor	37Kw
2	Hydraulic  valve	Taiwan
3	Hydraulic pump	Taiwan
4	Connector\Tuber	Japan
5	Seal	Japan
6	Oil tank capacity	850L
