North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:
3.0m*1.7m*2.5m
Weight:
5.8t
Automation:
Automatic
Making Method Of Parison:
Extrusion-Blow Molding
Raw Material:
HDPE
Computerized:
Computerized
Certification:
CE
Product Description

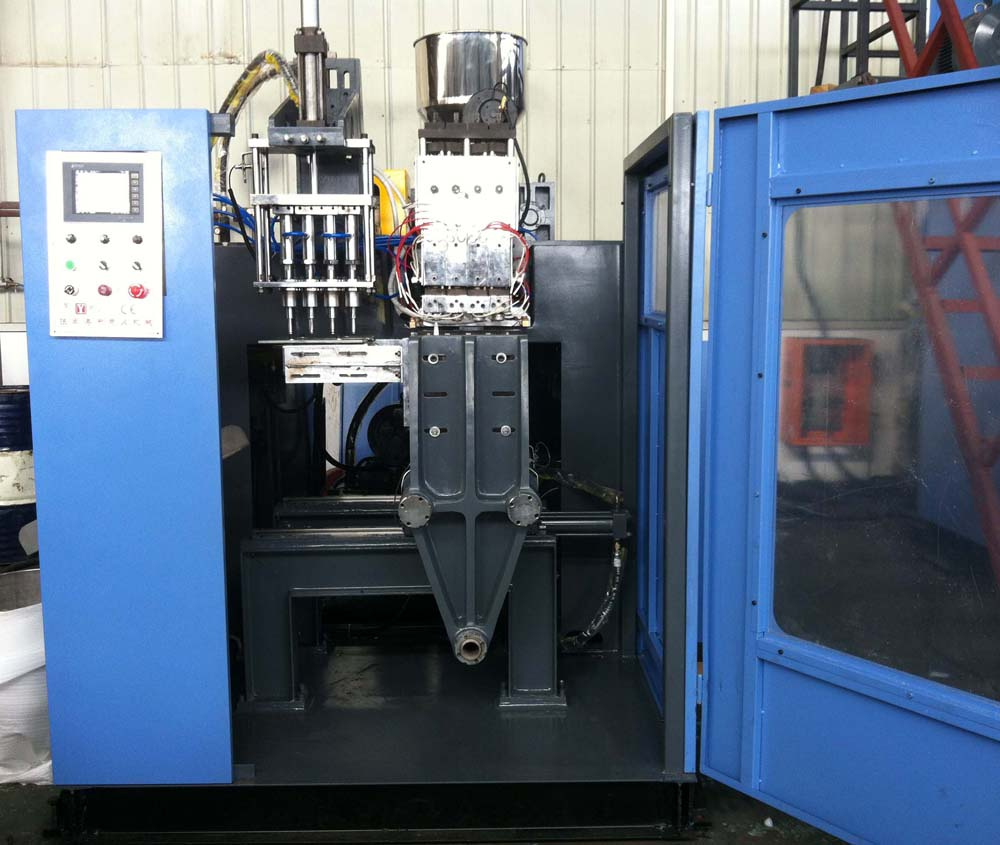

5L blow molding machine
YJB60-5L, This single station machine can be equipped with 1 to 4 die head, Compatible for the production of bottles from 5ml up to 5liters made out of PE, PP, PETG and PVC, Suiting for the packaging of cosmetics, petroleum, chemicals, pharmaceuticals, food products and toys. This machine is designed for producing high quality articles with small size.
Multi head and parison programmer option
Basic Parameter
Applicable Material
PE, PP....
Max. Product Volume
One die head for 5L
Dry Cycle
1100 pcs/h
Machine Size (L×W×H)
3.0×1.7×2.5 (M)
Machine Weight
5800KG
Total Power
37KW
Power Consumption
16KW/H
Plasticizing System
Specification
good plasticizing capability, high output, transducer adjust speed, collect temperature-control signals to prevent the screw from cold starting
Parison programmer is used to control the thickness of the bottle in high precision, it is a optional system for blow molding machine.
Japan MOOG 100points can be adopt to the machine
Component of YJB60-5L
ELECTRICAL PARTS
COMPONENT
SUPPLIERS
MICROCOMPUTER CONTROL SYSTEM
JAPAN MITSUBISHI PLC
TOUCH SCREEN
TAIWANHITECH TOUCH SCREEN
TEMPERATURE MODULE
TAIWAN7018RP
PROXIMITY SWITCH
TAIWAN RIKO
CONTACTOR
FRANCESCHNEIDER
AIRBREAK SWITCH
FRANCESCHNEIDER
MOTOR
SIEMENS BEIDE THREE PHASE MOTOR
INVERTER
TAIWANDELTA
HYDRAULIC PARTS
COMPONENT
SUPPLIERS
OIL PUMP
TAIWANHIGHTECH
HYDRAULIC VALVE
TAIWANNORTHMAN
PNEUMATIC PARTS
COMPONENT
SUPPLIERS
PNEUMATIC VALVE
TAIWAN AIRTAC
PARISON CONTROL SYSTEM (OPTIONAL)
COMPONENT
SUPPLIERS
PARISON PROGRAMMER
JAPANMOOG 100 POINTS
SERVO VALVE
JAPANMOOG
Zhangjiagang Yijiu machinery Co., Ltd is located in the new river port city-Zhangjiagang, with neighboring Shanghai in south, Yangtze River in north and Jiangyin Yangtze Bridge in west. As leading China blow molding machine manufacturer, We produce blow mold machine and Plastic molds. The transportation system is quite advanced with two connecting belts- coastal high way and G204 across the city.
We positively combined the advanced technology and theory to design, manufacture and sell fully automatic extrusion blow molding machine of 3 series and over 20 types.
Our machine is suitable to make 5ml to 200L bottles, drums, cans, containers, toolboxes, oil tank, special-shape automobile parts with the material PE\PP\PVC\PETG\PS\EVA\EVOH\PVDC\ABS\TPE\TPU. etc.
Because of our high quality, dependable performance and competitive price, our machines are bestselling in more than twenty provinces and also exported to many countries in Southeast Asia, Middle East, Middle Asia, Russia and South Africa, All of our clients give high reputations for our machines and services.
To be honest and innovative is the eternal spirit of Yijiu Machinery. We aim to provide our customers and partners high quality machines and top rank after sale service to help them to create more value in the competitive market.
No matter where you are, we speak your words. We are ready to spare no efforts to explore the future by our joint efforts.
Welcome to Yijiu Machinery!
