Brand Name:
Jieyang
Automatic:
Yes
After-Sales Service Provided:
Overseas Service Is Available
Place Of Origin:
Dongguan
OEM:
Yes
Delivery Days:
3-5 Working Days
Color:
Can Be Customized
Customers:
All Over The World
After-Service:
Professioanl Enginers Who Can Speak English
Type:
Injection Blow Molding
Structure:
Vertical
Plastic Type:
Thermoplastic
Plasticizing Way:
Screw Type
Clamping Way:
Hydraulic
Automation:
Automatic
Computerized:
Computerized
Certification:
SGS
Product Description

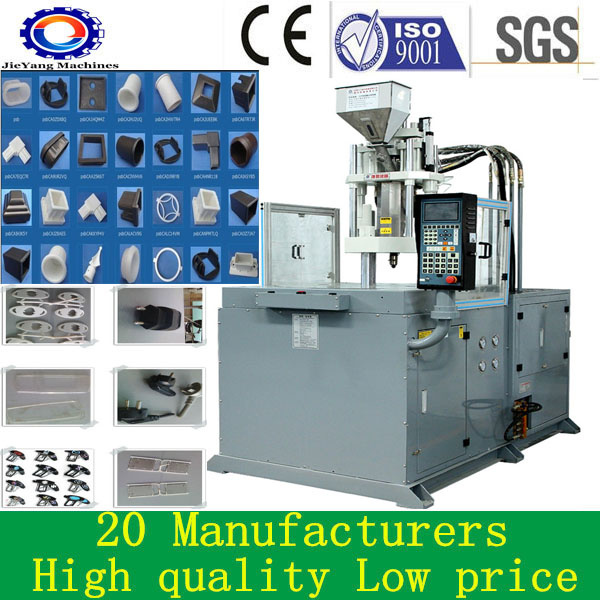

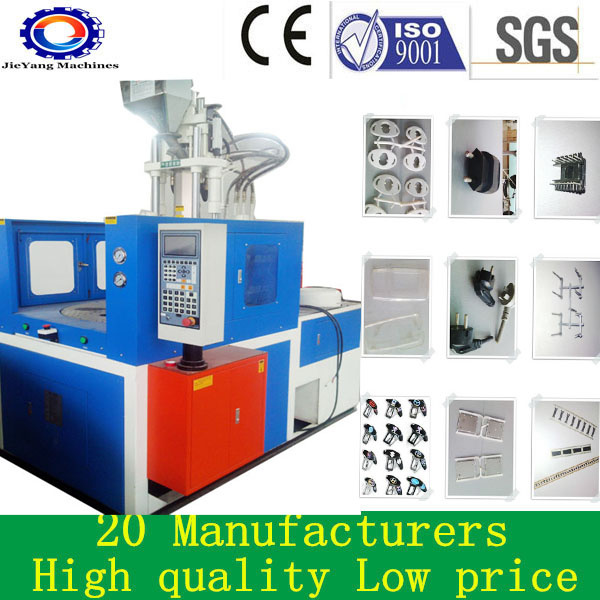

Jieyang Vertical Plastic Injection Machine
Function: 1.Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.
2.With double slide table or rotary design, putin, take out products and molding finish at the same time, which is more safe and efficient for production , then reduce the cost of production.
3.High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure mold clamping work together to greatlyextend machine & mold life.
4.Nitride and NIP/ Nitroflon coated screws and barrels are long-lasting, robust and provide superior acid/alkaline resistance.
5.Standard : Varuable Pump for Energy Saving 30%-50% Parameter of Machine:
JY-1000SWT /2000SWT Technique specification
Model
Units
JY-1000SWT
JY-2000SWT
Injection System
Screw Diameter
mm
42
45
50
55
60
70
Injection Pressure
Kg/cm2
1015
885
717
2036
1711
1257
Theoretical Shot volume
cm3
263
302
373
475
565
770
Max. Shot Weight(P.S)
9
239
275
339
432
514
700
Injection Rate
cm3/sec
149
171
211
107
128
174
Screw speed Max
rpm
0-200
0-200
Temperature Control
ZONE
4
4
Clamping System
Clamping Force
T
100
200
Platen Size
mm
920*730
1080*900
Distance Between Tie Bare
mm
650*480
810*610
Min Mold Height
mm
250/350
250/350
Opening Stroke
mm
300
360
Max. Open Daylight
mm
550/660
610/710
Ejector Force
T
5.6
5.6
Ejector stroke
mm
125
150
Power&Heading System
Max. Hydraulic Pressure
Kg/cm2
140
140
Pump Output
L/min
65
94
Pump Motor Power
Kw/HP
15/20
22.5/30
Barrel Heating Power
Kw
4.35
8.5
Total Wattage
Kw
20
32
Others
Machine Dimensions(L*W*H)
m
2.7*1.3*3
4*1.4*3.2
Shipping Size(L*W*H)
m
3*1.5*3.2
4.5*1.6*3.4
Machine Weight
T
6
8
Shipping Weight
T
6.6
9

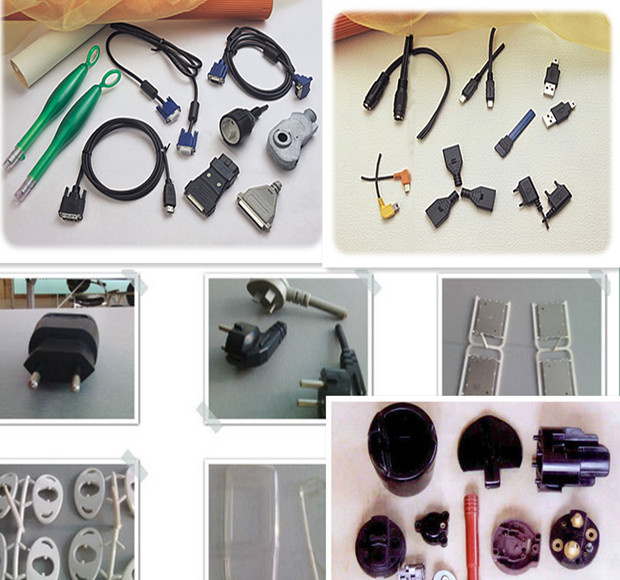

Application :
1.Electric parts 2.Coil encapsulation parts 3.Daily products like microwave electriciron shells etc. 4.Auto industry -Lamp reflector/Large parts of hood ,and rear doors,electric heating box,engine hood,horn box,big lamp shell and branch electric head etc. 5.Precision parts Circuit breakers shell without fuses,motor shell ,loudspeaker box,cassette and video parts,copying machine,faxing machine,printing machine,medical equipment,measuring apparatuses etc.
Packing & Shipping :
1. Before shipping,we will check and test the machine carfully.
2. We will arrange to manufacture the second day after confirmation,we can delivery it usually after 25 days.
3. According to the destination,we will compare several transportation companies and select the most suitable and economic one to provide service for us.
RFQ:
Q1: Are you a trading company or a manufactory?
A1: We are the Manufactory specialized in Plastic injection molding machine more than 20 years; we passed CE & ISO9001 & SGS Certificates.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with high quality afterservice. Also we have one year warranty of the spareparts, free of charge.
Q3: Why choose Jieyang Machinery Co.,Ltd.?
A3: Our products with more than 30% energy saving. Highest Cost effective environmentally. Excellent pre-sale and after-sale services.
