North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:
25mm to 350mm
Shaping Mode:
Injection Mould
Application:
Household Appliances
Installation:
Fixed
Product Description
Plastic Injection Pipe Fitting Mold/Mould

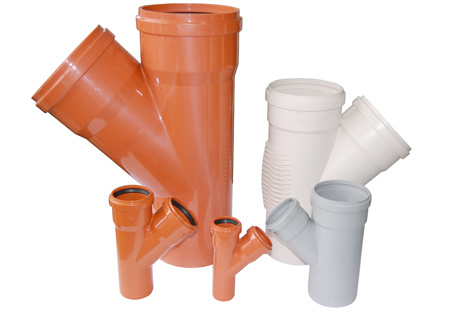

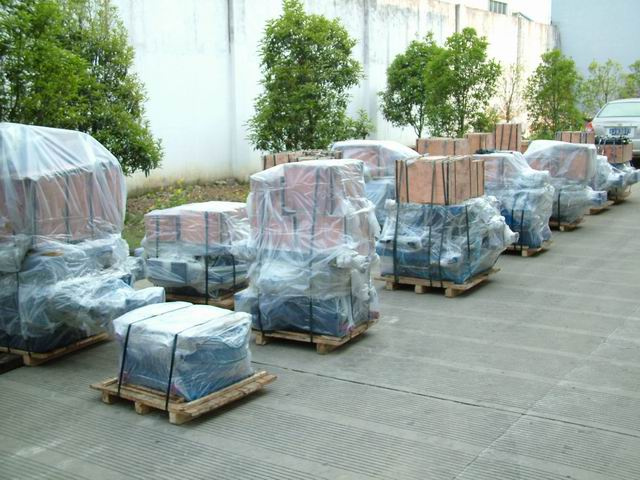

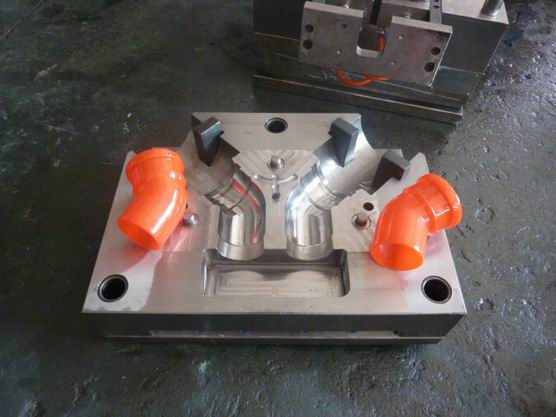

collapsible pipe fitting mould( 45D elbow-2 cavities) Jingzheng Mould own the patent design for collapsible core from 32mm to 400mm,with standard insert. Final Wye samples with different size. Finished mould ready to pack. Finished packing for the moulds, ready to delivery.
Name
collapsiblecore 50mm-45D elbow mould
Plastic material
PVC
Steel of Cavity & Core
DIN 1.2316
Steel of Mouldbase
LkM
Nos of Cavity
2 cavity
Hardness of Cavity & Core
42-45HRC
Hardness of Wear Parts
42-48HRC
Core pulling system
hydraulic cylinder
Mould Accessories
HASCO Standard
Cooling system
In core baffle cooling and in cavity plate chain drilling type cooling
Surface finish
Diamond polish,
Molding Life
1,000, 000shots
Runner
Cold runner
Delivery time
55 work days
Packing
wooden case
Huangyan Jingzheng mould factory was established in 1998, located in Taizhou, Zhejiang, China. We specialized in pipefitting mould. We have international advanced equipments, like CNC milling machine, NC wire cutting, NC-EDM, We have incorporated CAD/CAM/CAE into the manufacturing process.
With efficient mould designers, highly skilled technicians and trained quality control personnel, Jingzheng is able to provide mould with high quality.
We have experience to produce moulds as followings:
PVC/PP Collapsible Pipefitting Mould(We have patent for collapsible design)
PVC SWR Pipefitting Mould
PVC Pressure Pipefitting Mould(SCH40/SCH80/ASTM/DIN standard)
PVC Thread Pipefitting Mould (BS standard)
PVC Gutter Fitting Mould
PVC Instalating Electrical Drive Pipefitting Mould
PVC/PPR Ball Valve Mould
PPR Cool/Hot Water Feeding Pipefitting Mould
PP/PE Compression Fitting Mould
PP/PE Corrugated Pipefitting Mould
PE Electrofusion Fitting Mould
PPSU Pipefitting Mould
PSU Pipefitting Mould
POM Pipefitting Mould
ABS Pipefitting Mould
PP Flush Toilet Mould
Irrigation System Fitting Mould
As the global economy is developing and China joined WTO, Jingzheng not only make mould for famous companies inside China, but also exported to Middle East, South East Asia, Africa, etc.
With high quality steel, strict heat treatment, reliable mould layout and perfect handcraft, Jingzheng is able to provide efficient mould with high quality, with a lifetime more than 800, 000 shots. We are renowned for good quality, reasonable price and good after sales service. Good quality and Good service has always been our motto. Honesty comes first and customer is god has always been our pursuit and business philosophy. Innovation and Advancement has always been our guiding star in this changing world.
