North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:
Hongyin
Processing Type:
Blister Cutting Machine
Place Of Origin:
Zhejiang China (Mainland)
Voltage:
380V 50/60Hz
Export Markets:
Global
Max Forming Area:
320*800mm
Dimensions:
4550× 1620× 2500mm
Weight:
4000kg
Precision:
High Precision
Automatic Grade:
Automatic
Type:
High-Speed Punching Machine
Power Source:
Hydraulic Pressure
Product Description
Features:
Used for cutting not only the BOPS but also PVC, PET, PP, PS and etc.
Technically, less demanding on operator, improve productivity efficiency, reduce secondary pollution.
Integral frame owns a super large processing center, which can process completely one-off to ensure the high- precision of the machine.
After inputting the product parameters of height, length, stacking layers, the machine will be adjusted to the optimal origin position.
The mould change is simple and convenient, and the step is from the computer. With a dedicated mould change cart.

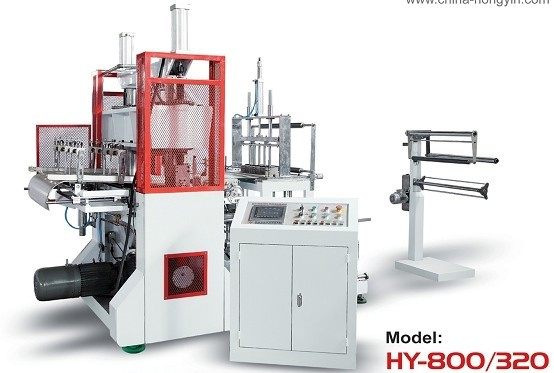

Parameter of HY-800/320cutting machine:
1
Max. Cutting area
800× 320mm
2
Max cutting stroke
150mm
3
Thickness range of sheet
0.2-1.5 mm
4
Air pressure
0.7Mpa
5
Cutting speed
26-36 cycles/min.
6
Air consumption
0.3 Liters/min
7
Max. Cutting capacity
15 TON
8
Feeding sheet power rating
0.85KW Servo drive system
9
Stacking power rating
0.45KW servo drive system
10
Main power
7.5kw
11
Voltage
AC380V, 50HZ/60HZ
12
Weight
4000kg
13
Dimensions
(L × W× H)mm
4550× 1620× 2500mm
Founded in 1985, Ruian Hongyin Machinery Factory is a manufacturer of plastic production and processing machinery.
Our factory currently covers an area of 8, 000 square meters of land, 5, 000 square meters of which are utilized by workshops. We specialize in the production in plastic fully automation thermoforming machine, plastic vacuum forming machine, In line cutting machine, sheet extruder, three sides folding machine, sealing machine, cooling tower packing forming machine, laminating machine, EPE foamed film production line, etc.
Included in our staff are numerous MID and advanced level technical talents with strong experience and competence in design, development, production, service, and management. Moreover, our factory complies with ISO9001 international quality standards. Additionally, we have developed a strong customer base throughout the world.
For further information on our product line or cooperation opportunities, please contact us at your convenience. We look forward to hearring from you soon.
