North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pipe Diameter:
200-3000mm
Certification:
ISO9001:2008
Automation:
Automatic
Product Type:
PE Pipe
Computerized:
Non-Computerized
Product Description

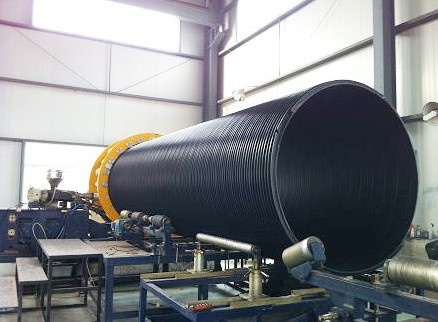

HDPE huge diameter hollowness wall spiral pipe production line
Plastic PE Huge Diameter Hollowness Wall Spiral Pipe Machine
This unit consists of
1. Extruder
2. Die head
3. Mould
4. Vacuum calibrating system
5. Water spraying tank
6. Glue extruder
7. Spiral forming machine
8. Cutting machine
9. Overturning bracket
10. Controlling system.
Introduction: In recent years, it is successful to replace cement pipe with polyethylene plastic pipe - (HDPE) huge diameter hollow wall spiral pipe, widely used in municipal drainage, sewage treatment, roads and railways drainage, agricultural irrigation. Substitute update products of cement pipe, cast iron pipe, ceramic tube.
The pressure resistance of pipes of many manufacturers is low in practical engineering; Our company joined the deformed steel (steel liner) through research and development, greatly improving the resistance to pressure
Type
Specification
Extruder
Installation power
Max. output
Size
Type
Main motor power
SKRG600
φ200-φ600mm
SJ65×30
37kw
92kw
180kg
15×15×2.5 M
SJ45×30
11kw
SKRG1000
φ400-φ1200mm
SJ90×30
75kw
180kw
400kg
25×18×2.5 M
SJ65×30
37kw
SKRG1500
φ400-φ1500mm
SJ90×30
75kw
188kw
400kg
25×18×3 M
SJ65×30
37kw
SKRG2200
φ800-φ2000mm
SJ90×33
132kw
290kw
650kg
30×25×3.5 M
SJ90×30
75kw
SKRG3000
φ1500-φ3000mm
SJ90×33
132kw
300kw
650kg
32×28×4 M
