Sjsz92/188 PVC Pipe Mahicne:
600mm
Certification:
ISO9001:2008
Product Type:
PVC Pipe
Computerized:
Computerized
Product Description

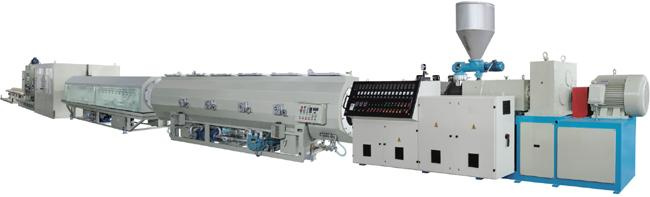

PVC pipe extrusion line, PVC pipe manufacturing machine, CPVC pipe making machine
Contact: Mr. Evan Meng
Tel: 0086-158-5323-7665
Complete extruder and extrusion lines for production of PVC pipes in diameter from 16 to 800mm. we also design and manufacture machines for production of CPVC pipe and PVC foam core pipe.
To maximize throughputs at small pipe diameters, dual strand or four strand pipe extrusion for PVC pipe in diameter from 16 to 63mm can be supplied
Application: to produce variety of PVC pipe for water supply, drainage, cable protection ,etc
Feature:
Equipped with conical twin screw extruder or parallel twin screw extruder, adopt Optimized spider die with chrome-plating, ensure the melt plasticization homogenous and distribution uniform.
Equipped Stainless steel Vacuum calibration sleeve with water lubrication ring, twin-chamber vacuum tank with spraying cooling and semicircular Nylon support, to ensure fast calibration, increase the production capacity and lower the operation. These designs are especially good for big diameter pipe production and high speed production.
All of vacuum tank and water cooling tank is made from stainless steel, dual water supply pipe line with filtration system, water level and temperature control system and optimized positioning of the bayonet-type spray nozzles.
The twin or multi caterpillar haul-off unit is equipped with high quality rubber block, accuracy driving and control system ensure the speed stable and running reliable.
Accurate non-scrap cutting machine (less than 110mm) and planetary cutting machine ensure the cutting section smooth and uniform.
It can make the socket online if to equipped with automatic belling machine
Model
Diameter(mm)
Max Output(KG/H)
Max Production Speed(M/MIN)
INSTALLED POWER(KVA)
ET-PVC-63
16-63
120
15
60
ET-PVC-63-II
16-63
250
15
90
ET-PVC-110
40-110
120
15
70
ET-PVC-160
50-160
250
8
90
ET-PVC-250
75-250
250
8
90
ET-PVC-250-I
75-250
450
8
130
ET-PVC-450
110-450
450
4
160
ET-PVC-630
250-630
700
2
210
ET-PVC-800
315-800
900
1
260
Qingdao Royal-Tech Machinery Co., Ltd is the vice-chairman factory of Plastic Machinery Association, and is one of the leading plastic machinery equipment manufacturer in China. The company is located in beautiful seaside city_Qingdao.
Qingdao Royal-Tech Machinery Co., Ltd indraughted numbers of advanced and high precision process equipments. With over 15 years experiences, we have accumulate abundant experiences of plastic extrusion production and debugging. We had gained CE certificate and ISO 9001: 2000 certificate, insist on "honest oriented, quality first", supply qualify machines and circumspect services, so we gained higher reputation from customers. Recently, our products were sold to Eastern Europe(Russia, Ukraine, White Russia, Lithuania, Latvia, Esthonia, Macedonia, Czech), Middle Asia(Kazakhstan, Uzbekistan, Kyrgyzstan, Turkmenistan, Tajikistan), Southeast Asia(India, Bangladesh, Vietnam) Middle East( Iran, Saudi Arabia, Yemen, UAE), Africa( South Africa, Algeria, Libya, Egypt, Zimbabwe, Cameroon) and Middle, South America(Guatemala, Mexico, Brazil, Chile), etc.
Our general manager Mr. Song together with all ROYAL-Tech workers welcome your visiting.
