Core And Cavity:
S136
Hardness:
45-52 HRC
Mould Base:
P20
Package:
Wooden Case
Shaping Mode:
Injection Mould
Application:
Commodity
Installation:
Fixed
Process Combination Type:
Single-Process Mode
Product Description

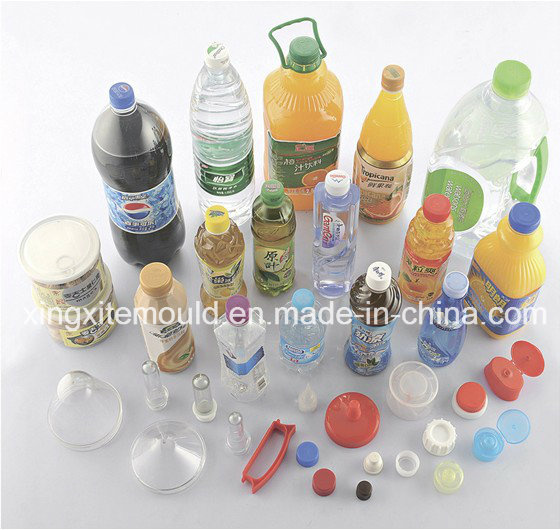

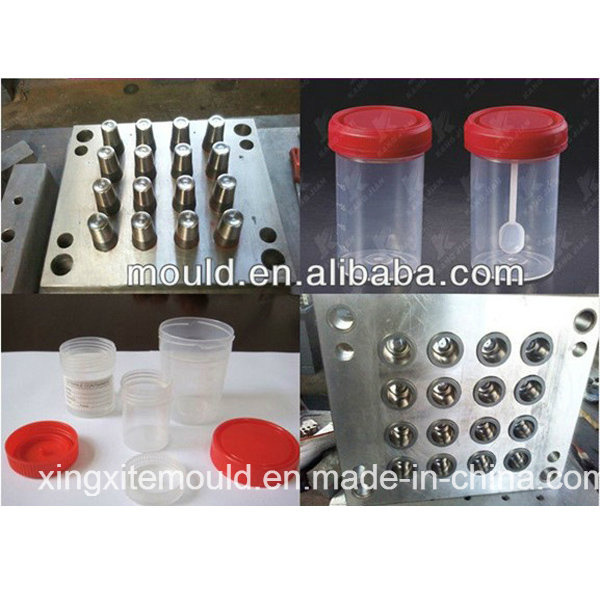

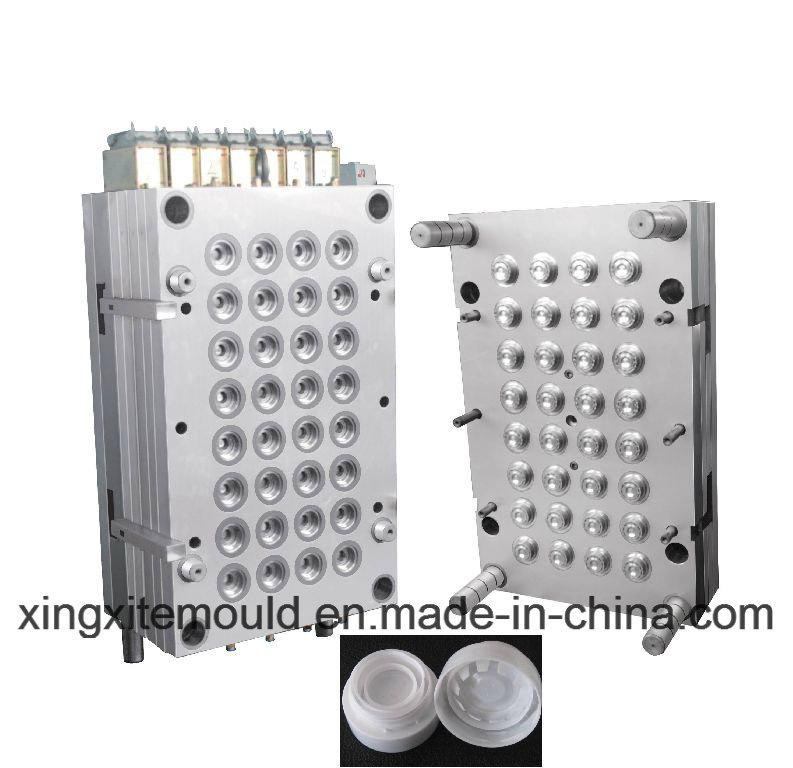

The cap mainly structures:
1.· Mold cavity from 1 to 48.
2.· Adopt imported high-quality mold steel(# P20 steel and #2316 Steel Germany,#718,#s136 and so on).
3.· Adopt advanced hot runner system with point to point control system,which ensures uniform heating.
4.· Each core and cavity adopt independented cooling system, which brings high productivity.
5.· Mold cavity is replaceable,which is convenient to change the label.
6.· At least 3 million shots life-time guaranteed.
7.· Electric control system with simulating stretch testing to improve yield rate.
8.· The materials of core and cavity are made of mirror corrosion resistance and plastic mold steel imported from Sweden or Germany.
9.· International standard screw neck, imported nitrided steel with high hardness and long life time.
10.· Adopt advanced hot runner system with point to point control system,ensure uniform heating,which brings high-quality products.
11.· Design different kinds of mold structure,such as sliting cap mould and cuting cap mould etc.
12.· Spare parts are processed by CNC,which ensure the precision.
13.·Great final polish
More plastic cap mould details:
Mould Steel
P20 , 50#, 718, 2738 ,NAK80, Etc
Plastic Material
PE, PP, PS ,PVC , PE ,HDPE , PET ,ABS ,ETC
Mould Base
LKM ,HASCO ,LYM
Runner Type
Hot runner or Cold Runner
Hot Runner System
Sino , YuDo Etc
Cold RUnner system
Point way ,Side way ,Direct gate way
Mould Standard Parts
DEM ,HASCO
Mould life
It mostly depend on the mould material
Design Software
UG ,PROE,CAD
Mould Doff Way
Ejector , Doff Plate, Air Valve
Mould Heat treatment
Quenching , Nitriding , Tempering
Mould Cooling
Water Cooling
Mould Process
CNC , CNC Lathe,High speed carve ,EDM, Wire cut
Mould Shipment
By air or sea
Mould Packaging
Wooden Case
Taizhou Huangyan Xing Xi Te mould factory located in Huangyan district Zhejiang province--the hometown of the mould in China, specializing in PET preform mould, PP preform mould, PET preform mould with valve gate, PET preform mould with short tail, PET preform mould with long tail, mineral bottle preform mould, beverage bottle preform mould, edible oil bottle preoform mould, engine oil bottle preform mould, 3 gallon preform mould, 5 gallon preform mould, preform mould with different weight, preform mould with different length, preform mould with 1 to 96 cavities, cap mould, injection mould, water bottle mould, mineral bottle mould, shampoo and costmetic bottle mould, fruit juice bottle mould, oil bottle mould, jar mould, barrel mould and so on with modern technology and advanced equipments. For over 15 years diligent operation, we had established a mature one-stop service line from inquiry to after-sales service.
Xing Xi Te Mould uses the latest versions of PRO-E, U. G, Solid-work, auto-CAD to designfull 3D formats and uses the Mold-flow for the analysis of injection. With rich experience in designing, the design team has the ability to provide the financially feasible solutions to meet all the requirements of clients.
Our target is to be your business partner and provide you with complete solutions in high quality and compatible prices. Our founders' experience in mold design, mold manufacturing and injection molding process makes us a strong and reliable partner for you.
We do believe that only good quality molds with compatible prices would lead long term win-win cooperation.
