Mould Steel:
DIN1.2311 Mould Steel for Cavity & Core
Injection Gate:
Direct Door
Shaping Mode:
Injection Mould
Application:
Household Appliances
Installation:
Fixed
Product Description

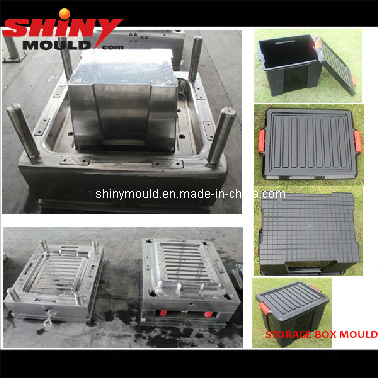

STORAGE BOX MOULD:
Molding Boxes:
Mold size: 870*690*700mm
Mold weight: 3236kg
Injection machine: 1000T
Mold life; 1 million shots
Injection gate: Direct door
Cycle time; 58s
Cover Molds For Boxes:
Mold size; 650*470*500mm
Mold weight: 1176kg
Injection machine: 650T
Mold life: 1 milion shots
Injection gate: Direct door
Cycle time; 42s
Mold Handles;
Mold size: 380*280*500mm
Mold weight: 410kg
Injection machine: 160T
Mold life; 1 million shots
Injection gate: Direct door
Cycle time: 25s
PROCESS:
1. Quote competitive price according customer detail requirement.
2. Sign agreement
3. Customer T/T deposit to us to start to design mould
4. Send mould drawing to customer for confirmation
5. Mould design confirmed and start to make mould
6. Make mould trial during tooling time(which we get agreement with customer)
7. Send mould trial sample to customer forinspection, or customer come to our factory to inspect mould personally
8. Customer T/T balance to us after mould confirmed
9. Deliver mould after get balance
SHINY MOULD SERVICE:
A. SHINY TOOL & MOULD will send weekly month progress report and tooling schedule.
B. SHINY TOOL & MOULD will send the first testing sample for buyer's inspection and work out improvement requirements.
C. SHINY TOOL & MOULD will send the mould testing video, 2D part drawing and 3D mould design before shipment.
FACTORY DETAIL INFORMATIONS:
Mould Description: plastic drawer mould
Cavity No.: single cavity or multi cavity
Injection Gate: cold runner or hot runner
Mould Steel: P20 mould steel, made in China, HRC29-30, DIN1.2311 mold steel, made in Germany, HRC29-30, DIN1.2738 mould steel, made in Germany, HRC35-38
